Feeder Clamp
( cable clamp, feeder cable clamp, feeder cable
hanger, cable feeder
clamp, RF feeder clamp, stainless steel feeder clamp, hanger clamp, stainless
steel hanger series, through type feeder clamp, two hole type cable clamp,
anchor ear type feeder clamp, microwave feeder clamp, plastic feeder clamp, 1/2"
feeder clamp, 7/8" feeder clamp, single stack feeder clamp)
The Hanger is mainly used for the fixation between RF
cable and tower, cable ladder etc, which is mainly composed of stainless steel
and anti-ultraviolet polypropylene or ABS engineering plastics and anti-old
rubber, and can be used in different range of temperatures. We manufacture
various hangers to meet different requirements of our clients.
We have materials
stainless steel
201 with dacro coating and stainless steel 304. The 304 is the best, however 201
is good to use and has cheaper price. Customers can
choose the suitable material upon the requirements.
Stainless Steel Feeder Clamp (Through Type)
|
Part No.
|
Description
|
|
|
660301A
|
1/2"x1
Single-stack
|
|
|
660301B
|
1/2"x2
Double-stack
|
|
660301C
|
1/2"x3
Triple-stack
|
|
660301D
|
7/8"x1
Single-stack
|
|
660301E
|
7/8"x2
Double-stack
|
|
660301F
|
7/8"x3
Triple-stack
|
|
660301G
|
1 1/4"x1
Single-stack
|
|
660301H
|
1 1/4"x2
Double-stack
|
|
660301I
|
1 1/4"x3
Triple-stack
|
|
660301J
|
1 5/8"x1
Single-stack
|
|
660301K
|
1 5/8"x2
Double-stack
|
|
660301L
|
1 5/8"x3
Triple-stack
|
Stainless Steel Feeder Clamp (Two Hole Type)
|
Part No.
|
Description
|
|
|
660303A
|
1/2"x1
Single-stack
|
|
|
660303B
|
1/2"x2
Double-stack
|
|
660303C
|
1/2"x3
Triple-stack
|
|
660303D
|
7/8"x1
Single-stack
|
|
660303E
|
7/8"x2
Double-stack
|
|
660303F
|
7/8"x3
Triple-stack
|
|
660303G
|
1 1/4"x1
Single-stack
|
|
660303H
|
1 1/4"x2
Double-stack
|
|
660303I
|
1 1/4"x3
Triple-stack
|
|
660303J
|
1 5/8"x1
Single-stack
|
|
660303K
|
1 5/8"x2
Double-stack
|
|
660303L
|
1 5/8"x3
Triple-stack
|
Stainless Steel Feeder Clamp (Two Hole Type2)
|
Part No.
|
Description
|
|
|
660307A
|
1/2"x1
Single-stack
|
|
|
660307B
|
1/2"x2
Double-stack
|
|
660307C
|
1/2"x3
Triple-stack
|
|
660307D
|
7/8"x1
Single-stack
|
|
660307E
|
7/8"x2
Double-stack
|
|
660307F
|
7/8"x3
Triple-stack
|
|
660307G
|
1 1/4"x1
Single-stack
|
|
660307H
|
1 1/4"x2
Double-stack
|
|
660307I
|
1 1/4"x3
Triple-stack
|
|
660307J
|
1 5/8"x1
Single-stack
|
|
660307K
|
1 5/8"x2
Double-stack
|
|
660307L
|
1 5/8"x3
Triple-stack
|
Stainless Steel Feeder Clamp (Two Hole Type3)
|
Part No.
|
Description
|
|
|
660310A
|
1/2"x1
Single-stack
|
|
|
660310B
|
1/2"x2
Double-stack
|
|
660310C
|
1/2"x3
Triple-stack
|
|
660310D
|
7/8"x1
Single-stack
|
|
660310E
|
7/8"x2
Double-stack
|
|
660310F
|
7/8"x3
Triple-stack
|
|
660310G
|
1 1/4"x1
Single-stack
|
|
660307H
|
1 1/4"x2
Double-stack
|
|
660310I
|
1 1/4"x3
Triple-stack
|
|
660310J
|
1 5/8"x1
Single-stack
|
|
660310K
|
1 5/8"x2
Double-stack
|
|
660310L
|
1 5/8"x3
Triple-stack
|

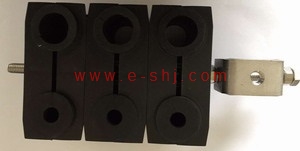

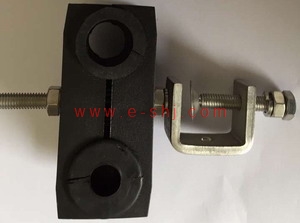

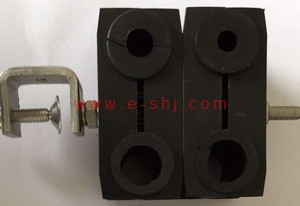

Optical fiber and power cable
clamp, Fiber sheath type cable clamp
|
Part No.
|
Description
|
|
|
660309C304N1
|
Single-stack
|
Fiber cables Ø4.5 - 6.5 mm
Power cables Ø9.0 -13.0 mm |
|
660309C304N2
|
Double-stack
|
|
660309C304N3
|
Triple-stack
|
¡¡
Fiber cables Ø4.5 - 6.5mm,
Power cables Ø21.0 - 24.0 mm
|
Part No.
|
Description
|
¡¡ |
|
660311C304N1
|
Single-stack
|
 |
|
660311C304N2
|
Double-stack
|
 |
|
660311C304N3
|
Triple-stack
|
 |
¡¡
Fiber cables Ø4.5 - 6.5mm,
Power cables Ø21.0 - 24.0 mm
|
Part No.
|
Description
|
¡¡ |
|
660312C304N1
|
Single-stack
|
 |
|
660312C304N2
|
Double-stack
|
 |
|
660312C304N3
|
Triple-stack
|
 |

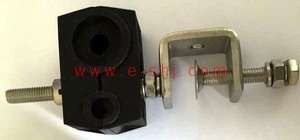

Optical fiber and power cable
clamp
|
Part No.
|
Description
|
|
|
660307C304N1
|
Single-stack
|
Fiber cables Ø4.5 - 6.5 mm
Power cables Ø9.0 -13.0 mm |
|
660307C304N2
|
Double-stack
|
|
660307C304N3
|
Triple-stack
|
Optical fiber and power cable clamp
|
Part No.
|
Description
|
|
|
660301C304N1
|
Single-stack
|
.JPG)
Compatible Diameter: 7.50 - 13.50mm |
|
660301C304N2
|
Double-stack
|
|
660301C304N3
|
Triple-stack
|
Stainless Steel Feeder Clamp (Anchor Ear Type)
|
Part No.
|
Description
|
|
|
660304A
|
1/2"x1
Single-stack
|
|
|
660304B
|
7/8"x1
Single-stack |
|
660304C
|
1 1/4"x1
Single-stack
|
|
660304D
|
1 5/8"x1
Single-stack
|
|
660304E |
1/2"x2
Double-stack |
|
660304F |
7/8"x2
Double-stack |
|
660304G |
1 1/4"x2
Double-stack |
|
660304H |
1 5/8"x2
Double-stack |
Microwave
Feeder Clamp
|
Part No.
|
Description
|
|
|
660305A
|
BT-60 |
|
|
660305B
|
BT-60X |
|
660305C
|
BT-80 |
|
660305D
|
BT-80X |
|
660305E |
BT-34 |
Plastic Feeder Clamp
|
Part No.
|
Description
|
|
|
660306A
|
1/2"
¦µD=13.5MM |
|
|
660306B
|
1/2"
¦µD=16.5MM |
|
660306C
|
7/8"
¦µD=24.5MM |
|
660306D
|
7/8"
¦µD=27.5MM |
Feeder Clamp (Hook Type)
|
Part No.
|
Description
|
|
|
660308A
|
1/2"x1 Single-stack |
|
|
660308B
|
1/2"x2 Double-stack |
|
660308C
|
1/2"x3 Triple-stack |
|
660308D |
7/8"x1 Single-stack |
|
660308E |
7/8"x2 Double-stack |
|
660308F |
7/8"x3 Triple-stack |
|
660308G |
1 1/4"x1 Single-stack |
|
660308H |
1 1/4"x2 Double-stack |
|
660308I |
1 1/4"x3 Triple-stack |
|
660308J |
1 5/8"x1
Single-stack |
|
660308K |
1 5/8"x2
Double-stack |
|
660308L |
1 5/8"x3
Triple-stack |
¡¡
