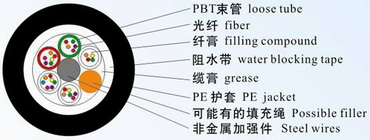

Structure: Intermediate for strengthening of
non-metallic FRP, PBT fiber-circular casing around package, the
cable core filled ointment, with water blocking outsourcing, PE
layer of protection. |
|
(The main mechanical properties): |
|
Fiber Core |
Fiber dia (mm) |
Fiber weight (kg/km) |
Tension |
Pressure |
|
Long/Short (N) |
Long/Short (N/10cm) |
|
2-36 |
9.8 |
70 |
600/1500 |
300/1000 |
|
38-72 |
11 |
85 |
1000/3000 |
300/1000 |
|
(Laying mode): (Duct, Aerial) |
|
(operating temperature):-40℃～+60℃ |
|
Application: District strong, applicable to
long-distance communications, and communications between the |
|
(Features): |
1 .Reasonable design and precise control over the
loose-tube fiber in the remainder of a long, fiber optic cable with
excellent performance and temperature tensile properties. |
|
2 .Core cable filled ointment to ensure that the
vertical water blocking effect. |
|
3 .Low loss, low dispersion, all non-metallic
structure of lightning excellent performance. |
|
(The main mechanical properties): |
(min bend radius) (D:
outer mm) |
(Static) |
10D |
|
(Dynamic) |
20D |
