connector proximity switch and connector page1 page2 page3

Structural category				Cylinder type
Outward appearance code				LM22-□□T3	LM30-□□T	LM30-□□T3	LMF16-□□T
Outward appearance illustration

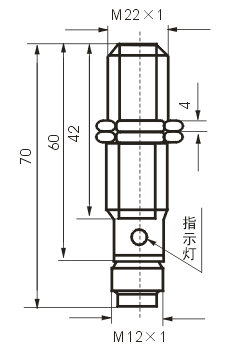

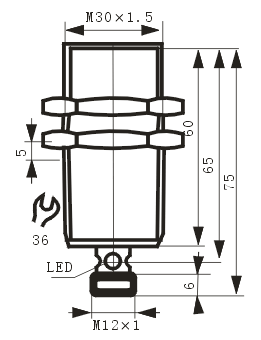

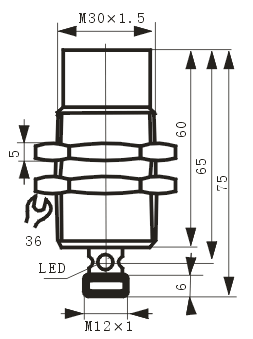

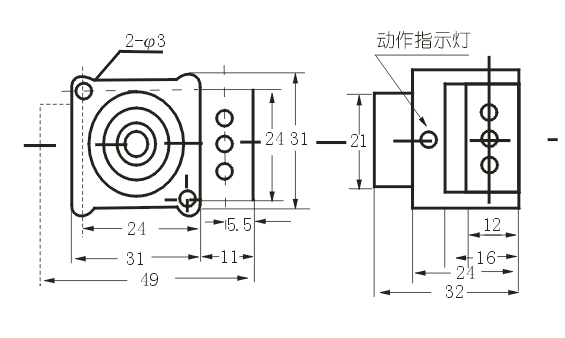

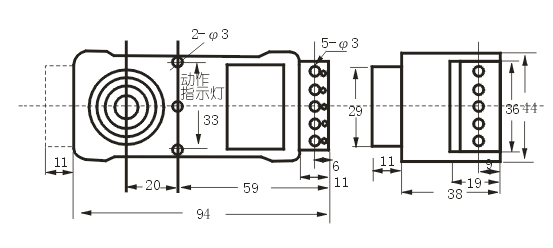

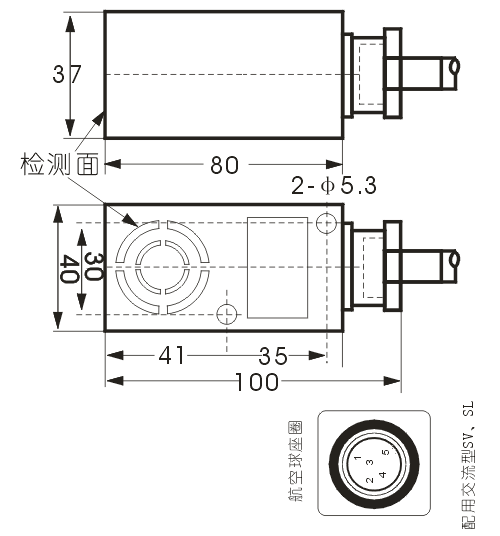

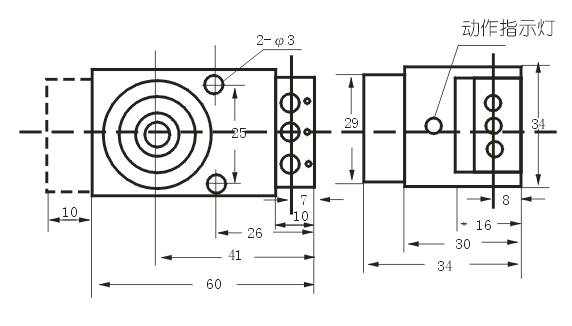

Overall dimensions
Flush	Detection distance			7mm	10mm	10mm
	DC 6~ 36 VDC	NPN	NO	LM22-3007NAT3	LM30-3010NAT	LM30-3010NAT3
			NC	LM22-3007NBT3	LM30-3010NBT	LM30-3010NBT3
			NO+NC	LM22-3007NCT3	LM30-3010NCT	LM30-3010NCT3
		PNP	NO	LM22-3007PAT3	LM30-3010PAT	LM30-3010PAT3
			NC	LM22-3007PBT3	LM30-3010PBT	LM30-3010PBT3
			NO+NC	LM22-3007PCT3	LM30-3010PCT	LM30-3010PCT3
		two wire system	NO	LM22-3007LAT3	LM30-3010LAT	LM30-3010LAT3
		two wire system	NC	LM22-3007LBT3	LM30-3010LBT	LM30-3010LBT3
	AC 90~ 250 VAC	SCR Control- label silicon	NO	LM22-2007AT3	LM30-2010AT	LM30-2010AT3
			NC	LM22-2007BT3	LM30-2010BT	LM30-2010BT3
			NO+NC
		Relay output
N0n-flush	Detection distance			10mm	15mm	15mm	15mm
	DC 6~ 36 VDC	NPN	NO	LM22-3010NAT3	LM30-3015NAT	LM30-3015NAT3	LMF16-3015NAT
			NC	LM22-3010NBT3	LM30-30151NBT	LM30-3015NBT3	LMF16-30151NBT
			NO+NC	LM22-3010NCT3	LM30-3015NCT	LM30-3015NCT3	LMF16-3015NCT
		PNP	NO	LM22-3010PAT3	LM30-3015PAT	LM30-3015PAT3	LMF16-3015PAT
			NC	LM22-3010PBT3	LM30-3015PBT	LM30-3015PBT3	LMF16-3015PBT
			NO+NC	LM22-3010PCT3	LM30-3015PCT	LM30-3015PCT3	LMF16-3015PCT
		two wire system	NO	LM22-3010LAT3	LM30-3015LAT	LM30-3015LAT3	LMF16-3015LAT
		two wire system	NC	LM22-3010LBT3	LM30-3015LBT	LM30-3015LBT3	LMF16-3015LBT
	AC 90~ 250 VAC	SCR Control- label silicon	NO	LM22-2010AT3	LT30-2015AT	LM30-2015AT3	LMF16-2015AT
			NC	LM22-2010BT3	LT30-2015BT	LM30-2015BT3	LMF16-2015BT
			NO+NC
		Relay output
Control output		DC		200mA	200mA	200mA	200mA
Control output		SCR Relay		300mA	300mA	300mA	300mA
Output voltage dropDC/AC				DC < 3V、AC < 10V
Consumption current				DC < 15mA、AC < 10mA
Standard detected object				25×25×1(A3 铁 iron)	30×30×1(A3 铁 iron)	30×30×1(A3 铁 iron)	45×45×1(A3 铁 iron)
Repeated precision				0.05	0.05	0.05	0.05
DC/AC Response frequency				200Hz/10Hz	200Hz/25Hz	200Hz/25Hz	200Hz/25Hz
Working environment temperature				-25℃ ~+65℃	-25℃ ~+65℃	-25℃ ~+65℃	-25℃ ~+65℃
Insulation resistance				50MΩ	50MΩ	50MΩ	10MΩ
Shell material				Metal	Metal	Metal	ABS Resin
Protection grade				IP67	IP67	IP67	IP67
Alterative model at home and abroad					EZE-X18ME1-M1	EZE-X18ME1-M1	LJ2-15/211

JWK series proximity switch

　

Type / Parameters

Working voltage

Output voltage drop

Output current

Detection distance

Response frequency

Output form

Shell material and protection grade

JWK-A5P

DC:6~36V

≤1V

200mA

5mm

200Hz

three-wire NO or NC

Plastic ABS
Ip67

JWK-D5P

JWK-A5PJ

≤3V

100mA

two-wire NO or NC

JWK-D5PJ

JWK-A10P

DC:6~36V

≤1V

200mA

10mm

200Hz

three-wire NO or NC

Plastic ABS
Ip67

JWK-D10P

JWK-A10PJ

≤3V

100mA

two-wire NO or NC

JWK-D10PJ

JWK200-A10J

　

AC:220V

≤7V

3A

10mm

≥15Hz

Platoon NO+NC voltage

Plastic ABS
Ip67

JWK220-D10J

JWK220-A10JK

Platoon NO+NC contact

JWK220-D10JK

　

■ LXJ0-1A、1B、2D LXJo-1A,1B,2D series proximity switch

◆ Application

◆ Main parameters

The function of LXJo series proximity switch(alias non-contact travel switch) is to act while approaching metal. It is used in machine tools
and other equipments for travel supervision and control without any contact or pressure. In addition, it is sued as position detection transducer in
the equipments like liquid level control, speed and revolution control of rotation gear, etc.

1. Power supply mains：AC127V、AC220V、AC380V 2. Output way：
3. Output current：127V、220V、1A、380V、500mA 4. Detection distance：2-10mm±5%
5. ON-OFF frequency：5Hz
　

connector proximity switch and connector page1 page2 page3

Type / Parameters	Working voltage	Output voltage drop	Output current	Detection distance	Response frequency	Output form	Shell material and protection grade
JWK-A5P	DC:6~36V	≤1V	200mA	5mm	200Hz	three-wire NO or NC	Plastic ABS Ip67
JWK-D5P
JWK-A5PJ		≤3V	100mA			two-wire NO or NC
JWK-D5PJ
JWK-A10P	DC:6~36V	≤1V	200mA	10mm	200Hz	three-wire NO or NC	Plastic ABS Ip67
JWK-D10P
JWK-A10PJ		≤3V	100mA			two-wire NO or NC
JWK-D10PJ
JWK200-A10J	AC:220V	≤7V	3A	10mm	≥15Hz	Platoon NO+NC voltage	Plastic ABS Ip67
JWK220-D10J
JWK220-A10JK						Platoon NO+NC contact
JWK220-D10JK
