DZS7-25(3VU13...)
|
DZS7-63(3VU16...)
|
|

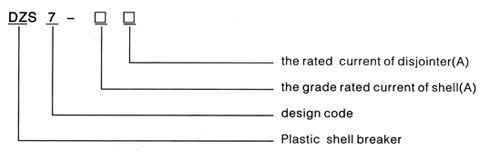

| The model No.
and meaning |
|
|
| Specification |
|
Model
|
Rated current (A)
|
Motor output (kW)
|
Setting Range (A)
|
Weight (kg)
|
|
Thermal overload
releases
|
Instantaneous
overcurrent releases
|
|
DZS7-25 (3VU13...) |
0.16
|
กก
|
0.1-0.16
|
1.9
|
0.29
|
|
0.24
|
0.06
|
0.16-0.24
|
2.9
|
|
0.4
|
0.09/0.12
|
0.24-0.4
|
4.8
|
|
0.6
|
0.12/0.18
|
0.4-0.6
|
7.2
|
|
1
|
0.25
|
0.6-1
|
12
|
|
1.6
|
0.37/0.55
|
1-1.6
|
19
|
|
2.4
|
0.75
|
1.6-2.4
|
29
|
|
3.2
|
1.1
|
2-3.2
|
38
|
|
4
|
1.1/1.5
|
2.4-4
|
48
|
|
5
|
1.5/2.2
|
3.2-5
|
60
|
|
6
|
2.2
|
4-6
|
72
|
|
8
|
3
|
5-8
|
96
|
|
10
|
กก
|
6-10
|
120
|
|
13
|
4/5.5
|
8-13
|
156
|
|
16
|
7.5
|
10-16
|
190
|
|
20
|
7.5
|
14-20
|
240
|
|
25
|
11
|
18-25
|
300
|
|
DZS7-63 (3VU16...) |
1.6
|
0.37/0.55
|
1-1.6
|
19
|
0.76
|
|
2.4
|
0.75
|
1.6-2.4
|
29
|
|
4
|
1.1/1.5
|
2.4-4
|
48
|
|
6
|
2.2
|
4-6
|
72
|
|
10
|
3/4
|
6-10
|
120
|
|
16
|
5.5/7.5
|
10-16
|
190
|
|
25
|
11
|
16-25
|
300
|
|
32
|
15
|
22-32
|
380
|
|
40
|
18.5
|
28-40
|
480
|
|
52
|
22
|
36-52
|
600
|
|
63
|
กก
|
45-63
|
600
|
|

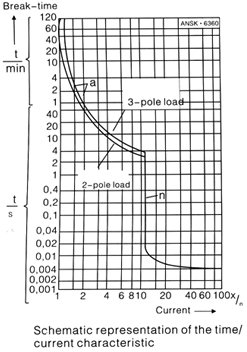

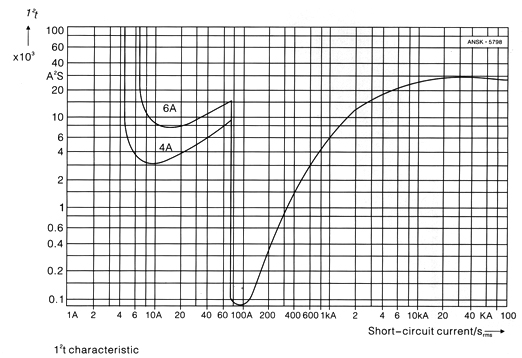

| Characteristic
curves DZS7-25 |
| The characteristic curves shown
here apply for a DZS7-35-ockoo circuit-breaker with a rated
current of 6A a current setting range of 4 to 6A and a tripping
current for the instantaneous overcurrent release of 72A, at a
rated voltage of AC 50Hz, 400V. |
|
|
|
|

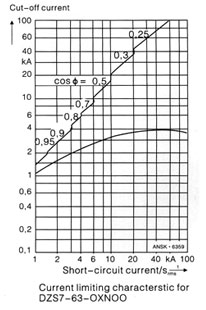

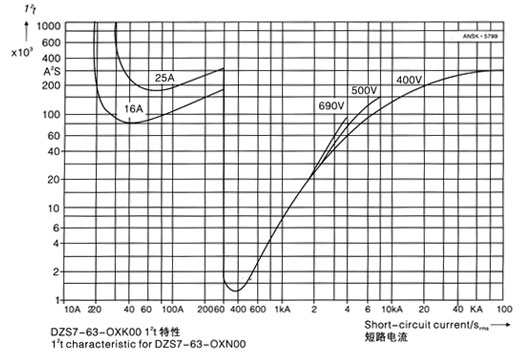

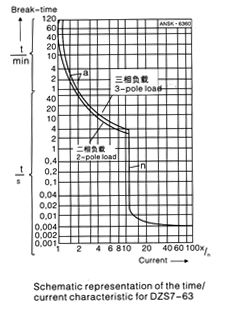

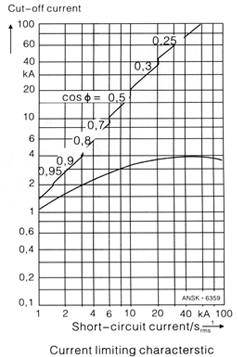

| Characteristic
curves DZS7-63 |
| The characteristic curves shown
here apply for a DZS7-63-OXNOO circuit breaker with a rated
current of 25A and a tripping current for the instantaneous
overcurrent release of 300A. at a rated voltage of AC 50HJz,400V
|
|
|
|
|

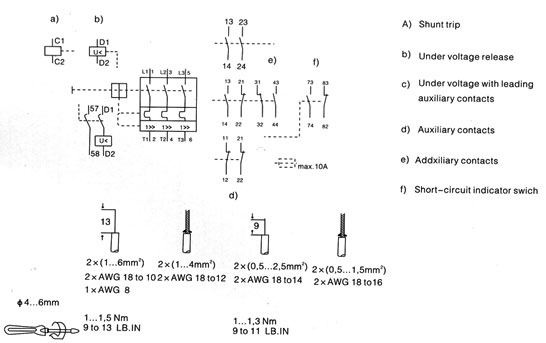

| Equipment
circuit diagrams |
|
 |

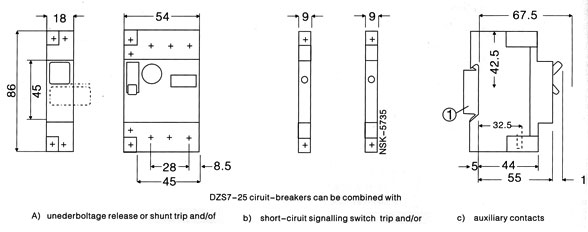

| Dimension
drawings DZS7-25 |
|
 |

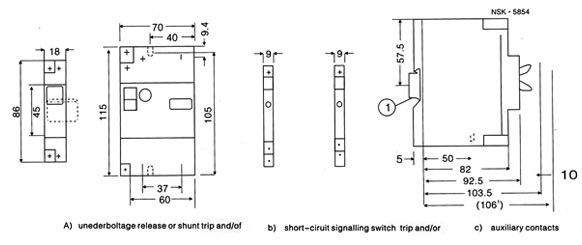

| Dimension
drawings DZS7-63 |
|
|
