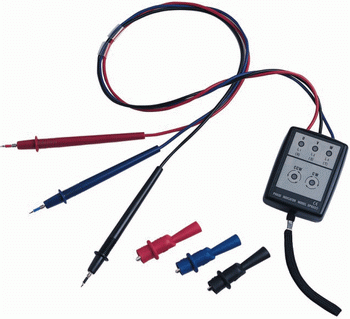

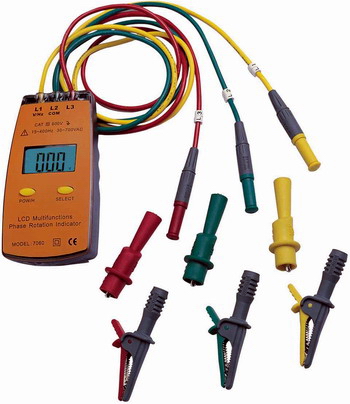

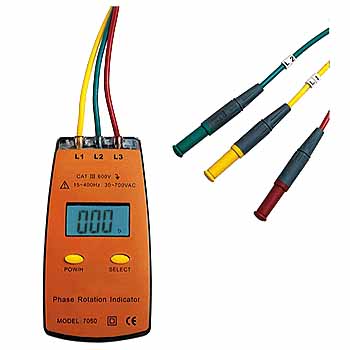

PR8030
Phase Rotation Tester
|
PR8031
Phase Rotation Tester
¡¡
|
|
 |
 |
|
|

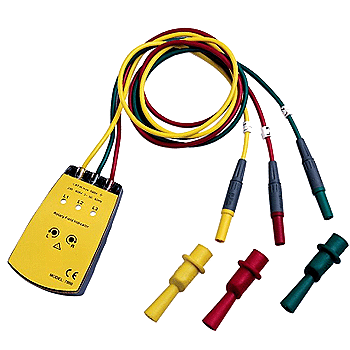

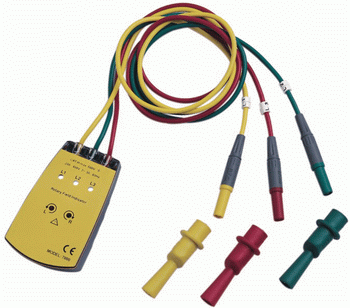

PR7000P
Phase Rotation Tester
¡¡ |
|
 |
 |
|
PR7010
Phase Rotation Tester
|

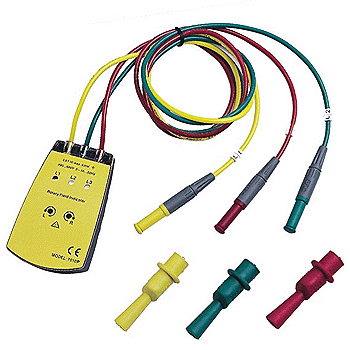

PR7010P
Phase Rotation Tester
|
 |

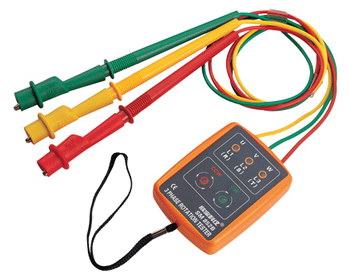

PHASE INDICTOR
SM852B
Description: It is used to
measure
the opening phase condition and
order through LED and Buzzer.
Measuring frequency range:20Hz~400Hz
Operational Voltage:60V¡«600V (3 Phase AC) |
|
 |
 |
|

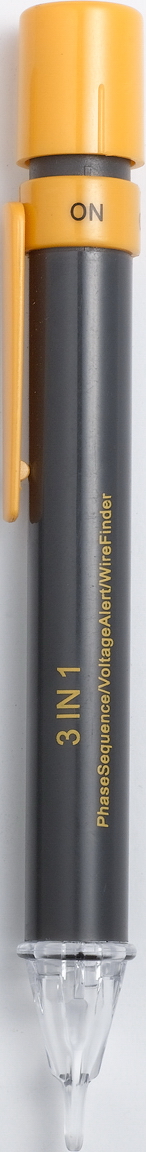

CX-1 Non-contact phase-sequence pen
|

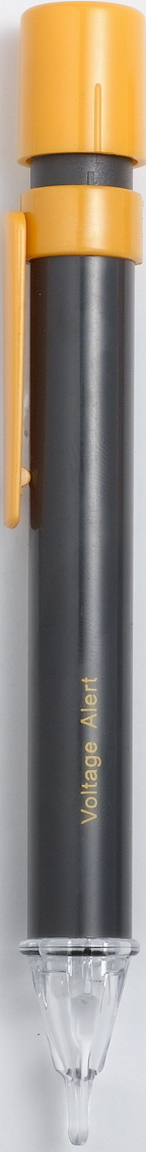

CD-1/2 Non-contact detection Pen
|
|
 |
 |
|

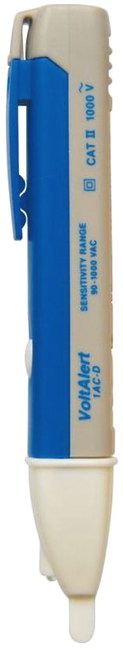

VD02 Non-contact Voltage Detector
Product Detail:
Voltage Sensitivity: 90-1000VAC
Bandwidth: 50/60Hz
Measurement category: CATIII, 1000V
Temperature:
Operating: -10~50¡ãC
Storage: -10~50¡ãC
Pollution: Degree 2
Normal Indicators: Beep and flashing LED indicate the presence of
voltage
Use to detect voltage in outlets,lighting fixtures,circuit
breakers,wires,and cables or to find a break in a wire.
Safe,non-contact voltage detection
LED LIGHT
Power: (Size AAA)1.5V x 2 Battery
Size: 150 x 109mm
Weight: Around 49g
Packing: Blister
Standard Quantity Per Carton: 200pcs
Standard Carton Size: 48.5 * 25.5 * 47cm
Standard Carton Gross Weight: 13kg |

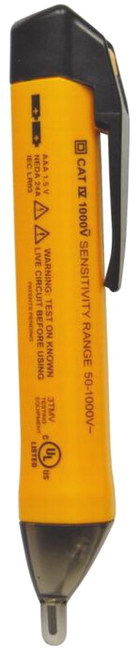

VD03 Non-contact Voltage Detector
Product Detail:
Non-contact detection of voltage in cables,cords,circuit
breakers,lighting fixtures,switches,outlets,and wires.
Highe intensity,bright green LED indicates the tester is operational and
aids in illuminating the workspace.
When voltage is detected,a high intensity,bright red LED illuminates and
a beeping sound is generated.
Discrete digitally controlled ON/OFF power button.
Auto power-off feature conserves and extends battery life.
Microprocessor controlled low-battery indicator and tester shutdown.
CAT IV 1000 Volt rating provides expanded operation and protection
50 to 1000 Volt AC power operating rang allows broad application.
Durable polycarbonate plastic resin construction.
Lightweight compact design with a convenient clip to fit securely in
your pocket.
Package Contents:
1 Owner's Manual, 1 Tester,
2 AAA 1.5 volt or IEC LR03 or NEDA 24A Batteries.
Size: 150 * 109mm
Weight: Around 49g
Packing: Blister
Standard Quantity Per Carton: 100pcs
Standard Carton Size: 48.5 * 25.5 * 47cm
Standard Carton Gross Weight: 13kg |
|

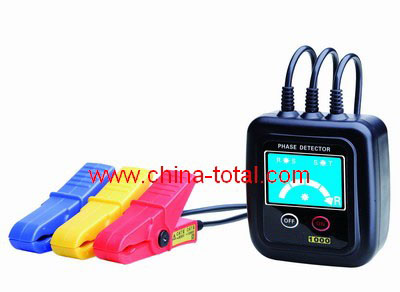

MODEL: PRT1000
Introduction:
Non-contact phase sequence detector XHST1000 is completely independent
of traditional phase-sequence detecting methods which must poke the
wiring posts of three-phase wire and connect the three bare alligator
clips or testing pins of Phase Sequence meter to the three bare fire
wires.
XHST1000 conducts the pincer-like non-contact inductive measurement
instead of poking the wires and contacting the bare high-voltage fire
wires. It directly uses the three super-inductive high-insulating pliers
to clamp the insulating sheath of three-phase fire wires, respectively
to detect the phase sequence. At the same time, it displays the
positive-phase or negative-phase state of phase sequence in three-phasepower supply.The three super-inductive and high-insulating pliers of XHST1000 are
made of permalloy which has high magnetic Permeability in Weak Magnetic
Field. So the sensitivity and reliability have been improved
significantly in detecting induction. Moreover, the display window is
made of a wide and luxurious LCD blue screen. Its displaying effect is
clear at a glance.
XHST1000 features multifunction such as live-wire detection, simple
electricity detection, live wire detection, fault phase check and broken
wire locate, line overhaul, etc.
XHST1000 boasts the characteristics of being safe, time-saving, rapid
and convenient, which improve the safety of in situ test dramatically,
strengthen the protection of operator¡¯s personal safety and accordingly
enhance the productivity! It is a safety instrument involving
phase-sequence detection, motor detection and line maintenance of
three-phase power supply!
¡¡
Technical specifications
|
Function |
phase detection (positive
phase and negative phase) live-wire detection and simple
electricity detection |
|
LCD size(mm) |
40mm¡Á33.5mm; Display
region: 38mm¡Á26mm |
|
LCD display mode |
HTN luxurious blue screen. |
|
Electricity range |
AC60~600V, 40 Hz~70Hz(
continuous sine wave input ) |
|
Size of wire for clamping |
Insulated wire with outer
diameter 18mm( compatible with wire of 120mm
) |
|
Display |
[ Positive Phase ] 4 phase-detecting lights
and 1 arrowlight; the lights will be turned on in clockwise. |
|
[ Negative Phase ] 4 phase-detecting lights
and 1 arrowhead Light; the lights will be turned on in
anticlockwise |
|
[ Electricity ] the light R-S, S-T are on in
the voltage setting range |
|
[ Default Phase ] the light R-S, S-T are off |
|
Power-on Indication |
after being started, the
backlight of LCD, and power-on indicator will be on |
|
Automatically power off |
Automatically power off |
|
Dimension (mm) |
70mm¡Á75mm¡Á30mm |
|
Lesd wire plier length |
0.5m |
|
Weight(g) |
207g |
|
Working temperature and
humidity |
-10ºC~55mm2;
80%rh below |
|
Storing temperature and
humidity |
-20ºC~60ºC; 90%rh below |
|
The highest detected
voltage |
AC600V |
|
Insulating Strength |
5.4kVrms |
|
Safety suitable for |
100mVA |
|
Safety suitable for |
EN61010-1:2001
, EN61010-031: 2002 pollution level 2, CAT¢ó (600V),
Instantaneous Overvoltage 6000V. |
|
Accessories |
Phase Detector: 1 pcs;
strap: 1 pcs;
Meter Box: 1 pcs |
|
|

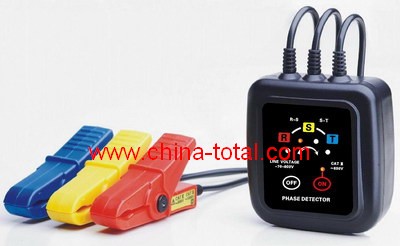

MODEL: PRT1000A
Introduction:
This is a phase detector, designed to perform phase sequence checks and
live line checks of a 3-phase circuit using a static induction voltage
clip.
The static induction voltage clips are used to be able to clip on a
cladded wire.
It is small with a CAT ¢ó 600V safety rating.
Red LED lamps are used to make the indication visible in dimly lit
areas.
The direction of phase sequence can be checked easily using the LED
lamps, which blink in order.
¡¡
¢ò. Specifications
1). Basic Specifications
|
Function |
Phase
detection (positive/negative) |
|
Voltage
detection method |
Static
induction |
|
Object to
be connected |
Insulated
wire (nominal sectional area of the conductor: 2 to 120mm2,finished
outer diameter: up to 17mm) |
|
Performance-guarantee voltage range |
3-phase,
70V to 600 VAC (sine wave,continuous) |
|
Operating
frequency range |
45Hz to
66Hz |
|
2). Display |
¡¡ |
|
Phase-detection |
Positive
phase sequence: |
|
Indication |
The four
phase-sequence lamps blink order (clockwise) and the buzzer
sounds intermittently. |
|
Negative
phase sequence: |
|
The four
phase-sequence lamps blink in order (counterclockwise) and the
buzzer sounds continuously. |
|
Line-voltage indication |
R-S lamp,
S-T lamp |
|
Power
indication |
Power ON
lamp: lights up (Power ON) blinks
(Battery Low) |
|
3). General Specifications |
¡¡ |
|
Operating
temperature and humidity |
-10ºC to
40ºC(32 to 104ºF), 80%RH or less ( with no condensation) |
|
Storage
temperature and humidity |
-20ºC to
60ºC (-4 to 140ºF), 80%RH or less (with no condensation) |
|
Location
for use |
Altitude
up to 2000m(6562 feet), indoors |
|
Maximum
rated voltage to earth |
600V |
|
Dielectric
strength |
5.4kVrms |
|
Power
supply |
Rated
supply voltage 1.5VDC¡Á2 Two "AA" size batteries |
|
Maximum
rated power |
300mVA |
|
Continuous
operating time* |
Approx.70
hours (Power ON, Standby state, using R6P manganese battery)
*Battery life |
|
Auto Power
Off (This function can not Be canceled.) |
The power
will be turned off automatically if the Instrument remains idle
for 15 minutes after the power is turned on. To reset, turn the
power on again using the Power ON switch. |
|
Options |
Carrying
case, Strap*, Spiral tube*, Instruction manual, Two R6P;
manganese batteries. *Attaching as the occasion demands. |
|
Cable
length |
Approx.
0.7m |
|
Dimensions
and mass |
Approx.
70W¡Á75H¡Á30Dmm(2.76W¡Á2.95H¡Á1.18D)(excluding projections), Approx.
200g(7.1oz) |
|
Applicable
standards |
Safety
EN61010-1:2001,EN61010-031:2002 Pollution degree2, Measurement
category CAT III(600V)(anticipated transient over voltage
6000V) EMC EN61326:1997+A1:1998+A2:2001 |
|
Accessories |
Phase
Detector: 1 pcs; strap: 1 pcs; Meter Box: 1 pcs |
|
