Handheld Digital Storage Oscilloscope

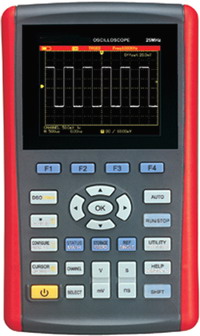

SRD8025CL
|
GENERAL
CHARACTERISTICS |
|
Power |
7.4V 3600mAh 220V 50Hz |
|
LCD Size |
3.5 Inches
64K Color TFT LCD, 320×240 |
|
Product Color |
Red + Grey |
|
Product Net Weight |
0.9Kg |
|
Product Size |
199mm × 118mm
× 49mm |
|
Standard Accessories |
DC Adaptor, Multimeter Pen,
10ACurrent Divider, Probe x1(1x, 10x switchable), Carrying
Bag, USB Cable, PC Soft CD |
|
Standard Packing |
Gift Box, English Manual,
Warranty Card |
|
Standard Quantity Per Carton |
10 pcs |
|
Standard Carton Measurement |
618mm × 464mm
× 268mm |
|
Standard Carton Gross Weight |
25Kg |
|
Security Classification |
Oscilloscope: CAT II 300V
Multimeter: CAT III 600V |
|
Certification |
CE,
EN:61010-1 |
|
|
Oscilloscope |
|
|
Channel |
1 |
|
Bandwidth |
25MHz |
|
Max Sampling Rate |
200MS/s |
|
Rise Time |
14ns |
|
Memory Depth |
12kpts |
|
Vertical Sensitivity |
5mV/div～20V/div |
|
Time-Based Range |
10ns/div～50s/div |
|
Storage |
Bitmap, Setup, Waveform |
|
Trigger Modes |
Edge, Pulse, Video, Slope |
|
Interface |
Mini USB |
|
Multimeter |
Range |
Accuracy |
|
DC Voltage (V) |
400mV/ 4V/
40V/ 400V |
±(1%+5) |
|
AC Voltage (V) |
400mV/ 4V/
40V/ 400V |
±(1.2%+5) |
|
DC Current (A) |
400μA/ 4000μA |
±(1.2%+5) |
|
40mA/ 4000mA |
±(1%+5) |
|
10A |
±(1.5%+5) |
|
AC Current (A) |
400μA/ 4000μA |
±(2%+5) |
|
40mA/ 4000mA |
±(1.5%+5) |
|
10A |
±(5%+5) |
|
Resistance (R) |
400Ω/4KΩ/40KΩ/400K/4MΩ |
±(1.2%+5) |
|
40.00MΩ |
±(1.5%+5) |
|
Capacitance (C) |
51.2nF/512nF/5.12μF/51.2μF/100μF |
±(3%+5) |
|
Display Count |
4000 |
|
|
|
|
|
 |
Handheld Digital Storage Oscilloscope

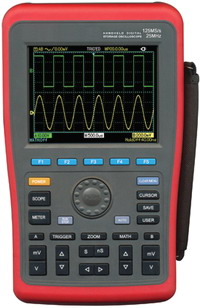

SRD8025C
|
GENERAL CHARACTERISTICS: |
|
Power |
100 - 240V 50/60Hz 1.5A |
|
LCD Size |
Diagonal 145mm (5.7 inches) |
|
Product Color |
Red and Grey |
|
Product Net Weight |
1.8kg |
|
Product Size |
268mm x 168mm x 60mm |
|
Accessories |
Probe x 2 (1x, 10x switchable),
Power Cord,
Current Voltage Convertor x 2(UT-M03, UT-M04)
DC Adaptor and English Manual, Test Lead |
|
Standard Individual Packing |
Tool Box and Gift Box |
|
Standard Quantity Per Carton |
4 pcs |
|
Standard Carton Measurement |
475 x 460 x 380mm (0.10 CBM Per
Export Carton) |
|
Standard Carton Gross Weight |
Around 23.2kg |
|
|
Oscilloscope |
|
|
Bandwidth |
25 MHz |
|
Rise Time |
≤14 ns |
|
Real-time Sampling Rate |
125MS/s |
|
Equivalent Sampling Range |
25GS/s |
|
Vertical Sensitivity |
5mV ~ 50V/div |
|
Record Length (Max) |
2 x 512k |
|
Scan Time
Base |
10ns ~ 50s/div |
|
Trigger Type |
Edge, Pulse, Video and Alternate |
|
Automatic Waveform Measurements |
27 |
|
Frequency Counter |
6 digits frequency counter |
|
Ports |
USB Host |
|
Mathematics |
Add, Subtract, Multiply, Divide, FFT |
|
Interface |
Color and Mono display selectable |
|
Power |
The provided battery or out-sourced adaptor |
|
Life of Battery |
4 hours |
|
Other Features |
Multimeter, special LCD copy feature |
|
Multimeter |
|
Resistance |
600Ω / 6MΩ / 60MΩ : ± (1.5% + 5 digits)
6kΩ / 60kΩ / 600kΩ : ± (1.2% + 5 digits) |
|
DC Voltage |
600mV, 6V, 60V, 600V, 1000V: ± (1% + 5
digits) |
|
AC Voltage
(45Hz ~ 400Hz) |
600mV, 6V, 60V, 600V, 700V:± (1.2% + 5 digits), Frequency: <200Hz
± (1.5% + 5 digits), Frequency: ≥200Hz |
|
DC Current |
6mA, 60mA, 600mA: ± (1.2% + 5 digits)
6A: ± (1.5% + 5 digits) |
|
AC Current
(45Hz ~ 400Hz) |
6mA, 60mA, 600mA: ± (2% + 5 digits)
6A: ± (2.5% + 5 digits) |
|
Capacitance |
6nF, 6mF: ± (5% + 10 digits)
60nF, 600nF, 6μF, 60μF, 600μF: ± (1.5% +5
digits) |
|
Continuity
Buzzer |
Yes |
|
Diode |
Yes |
|
Trend Diagram |
Yes |
|
Testing Mode |
Manual / Auto ranging |
|
Max. Display |
5999 |
|
|
|
|
|
 |
Handheld Digital Storage Oscilloscope
SRD8062C
|
GENERAL CHARACTERISTICS |
|
Power |
100 - 240V 50/60Hz 1.5A |
|
LCD Size |
Diagonal 145mm (5.7 inches) |
|
Product Color |
Red and Grey |
|
Product Net Weight |
1.8kg |
|
Product Size |
268mm x 168mm x 60mm |
|
Accessories |
Probe x 2 (1x, 10x switchable), Power Cord,
Current Voltage Convertor x 2(UT-M03, UT-M04)
DC Adaptor and English Manual, Test Lead |
|
Standard Individual Packing |
Tool Box and Gift Box |
|
Standard Quantity Per Carton |
4 pcs |
|
Standard Carton Measurement |
475 x 460 x 380mm (0.10 CBM Per Export Carton) |
|
Standard Carton Gross Weight |
Around 23.2kg |
|
|
Oscilloscope |
|
|
Bandwidth |
60 MHz |
|
Rise Time |
≤5.8 ns |
|
Real-time Sampling Rate |
250MS/s |
|
Equivalent Sampling Range |
25GS/s |
|
Vertical Sensitivity |
5mV ~ 50V/div |
|
Record Length (Max) |
2 x 512k |
|
Scan Time Base |
5ns ~ 50s/div |
|
Trigger Type |
Edge, Pulse, Video and Alternate |
|
Automatic Waveform Measurements |
27 |
|
Frequency Counter |
6 digits frequency counter |
|
Ports |
USB Host |
|
Mathematics |
Add, Subtract, Multiply, Divide, FFT |
|
Interface |
Color and Mono display selectable |
|
Power |
The provided battery or out-sourced adaptor |
|
Life of Battery |
3 hours |
|
Other Features |
Multimeter, special LCD copy feature |
|
Multimeter |
|
Resistance |
600Ω / 6MΩ / 60MΩ : ± (1.5% + 5 digits)
6kΩ / 60kΩ / 600kΩ : ± (1.2% + 5 digits) |
|
DC Voltage |
600mV, 6V, 60V, 600V, 1000V: ± (1% + 5 digits) |
|
AC Voltage
(45Hz ~ 400Hz) |
600mV, 6V, 60V, 600V, 700V:± (1.2% + 5 digits), Frequency:
<200Hz
± (1.5% + 5 digits), Frequency: ≥200Hz |
|
DC Current |
6mA, 60mA, 600mA: ± (1.2% + 5 digits)
6A: ± (1.5% + 5 digits) |
|
AC Current
(45Hz ~ 400Hz) |
6mA, 60mA, 600mA: ± (2% + 5 digits)
6A: ± (2.5% + 5 digits) |
|
Capacitance |
6nF, 6mF: ± (5% + 10 digits)
60nF, 600nF, 6μF, 60μF, 600μF: ± (1.5% +5 digits) |
|
Continuity Buzzer |
Yes |
|
Diode |
Yes |
|
Trend Diagram |
Yes |
|
Testing Mode |
Manual / Auto ranging |
|
Max. Display |
5999 |
|
|
|
|
|
 |
Handheld Digital Storage Oscilloscope
SRD8102C
|
GENERAL CHARACTERISTICS |
|
Power |
100 - 240V 50/60Hz 1.5A |
|
LCD Size |
Diagonal 145mm (5.7 inches) |
|
Product Color |
Red and Grey |
|
Product Net Weight |
1.8kg |
|
Product Size |
268mm x 168mm x 60mm |
|
Accessories |
Probe x 2 (1x, 10x switchable), Power Cord,
Current Voltage Convertor x 2(UT-M03, UT-M04)
DC Adaptor and English Manual, Test Lead |
|
Standard Individual Packing |
Tool Box and Gift Box |
|
Standard Quantity Per Carton |
4 pcs |
|
Standard Carton Measurement |
475 x 460 x 380mm (0.10 CBM Per Export Carton) |
|
Standard Carton Gross Weight |
Around 23.2kg |
|
|
Oscilloscope |
|
|
Bandwidth |
100 MHz |
|
Rise Time |
≤3.5 ns |
|
Real-time Sampling Rate |
500MS/s |
|
Equivalent Sampling Range |
25GS/s |
|
Vertical Sensitivity |
5mV ~ 50V/div |
|
Record Length (Max) |
2 x 512k |
|
Scan Time Base |
5ns ~ 50s/div |
|
Trigger Type |
Edge, Pulse, Video and Alternate |
|
Automatic Waveform Measurements |
27 |
|
Frequency Counter |
6 digits frequency counter |
|
Ports |
USB Host |
|
Mathematics |
Add, Subtract, Multiply, Divide, Reverse and FFT |
|
Interface |
Color and Mono display selectable |
|
Power |
The provided battery or out-sourced adaptor |
|
Life of Battery |
3 hours |
|
Other Features |
Multimeter, special LCD copy feature |
|
Multimeter |
|
Resistance |
600Ω / 6MΩ / 60MΩ : ± (1.5% + 5 digits)
6kΩ / 60kΩ / 600kΩ : ± (1.2% + 5 digits) |
|
DC Voltage |
600mV, 6V, 60V, 600V, 1000V: ± (1% + 5 digits) |
|
AC Voltage
(45Hz ~ 400Hz) |
600mV, 6V, 60V, 600V, 700V:± (1.2% + 5 digits), Frequency:
<200Hz
± (1.5% + 5 digits), Frequency: ≥200Hz |
|
DC Current |
6mA, 60mA, 600mA: ± (1.2% + 5 digits)
6A: ± (1.5% + 5 digits) |
|
AC Current
(45Hz ~ 400Hz) |
6mA, 60mA, 600mA: ± (2% + 5 digits)
6A: ± (2.5% + 5 digits) |
|
Capacitance |
6nF, 6mF: ± (5% + 10 digits) 60nF,
600nF, 6μF, 60μF, 600μF: ± (4% + 5 digits) |
|
Continuity Buzzer |
Yes |
|
Diode |
Yes |
|
Trend Diagram |
Yes |
|
Testing Mode |
Manual / Auto ranging |
|
Max. Display |
5999 |
|
|
|
|
|
 |
Handheld Digital Storage Oscilloscope

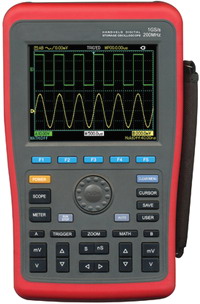

SRD8202C
|
GENERAL CHARACTERISTICS |
|
Power |
100 - 240V 50/60Hz 1.5A |
|
LCD Size |
Diagonal 145mm (5.7 inches) |
|
Product Color |
Red and Grey |
|
Product Net Weight |
1.8kg |
|
Product Size |
268mm x 168mm x 60mm |
|
Accessories |
Probe x 2 (1x, 10x switchable), Power Cord,
Current Voltage Convertor x 2(UT-M03, UT-M04)
DC Adaptor and English Manual, Test Lead |
|
Standard Individual Packing |
Tool Box and Gift Box |
|
Standard Quantity Per Carton |
4 pcs |
|
Standard Carton Measurement |
475 x 460 x 380mm (0.10 CBM Per Export Carton) |
|
Standard Carton Gross Weight |
Around 23.2kg |
|
|
Oscilloscope |
|
|
Bandwidth |
100 MHz |
|
Rise Time |
≤1.8 ns |
|
Sampling Rate |
Real-time:1GS/s
Equivalent:25GS/s |
|
Equivalent Sampling Range |
25GS/s |
|
Vertical Sensitivity |
5mV ~ 50V/div |
|
Record Length (Max) |
2 x 512k |
|
Scan Time Base |
2ns ~ 50s/div |
|
Trigger Type |
Edge, Pulse, Video and Alternate |
|
Automatic Waveform Measurements |
27 |
|
Frequency Counter |
6 digits frequency counter |
|
Ports |
USB Host |
|
Mathematics |
Add, Subtract, Multiply, Divide and FFT |
|
Interface |
Color and Mono display selectable |
|
Power |
The provided battery or out-sourced adaptor |
|
Life of Battery |
3 hours |
|
Other Features |
Multimeter, special LCD copy feature |
|
Multimeter |
|
Resistance |
600Ω / 6MΩ / 60MΩ : ± (1.5% + 5 digits)
6kΩ / 60kΩ / 600kΩ : ± (1.2% + 5 digits) |
|
DC Voltage |
600mV, 6V, 60V, 600V, 1000V: ± (1% + 5 digits) |
|
AC Voltage
(45Hz ~ 400Hz) |
600mV, 6V, 60V, 600V, 700V:± (1.2% + 5 digits), Frequency:
<200Hz
± (1.5% + 5 digits), Frequency: ≥200Hz |
|
DC Current |
6mA, 60mA, 600mA: ± (1.2% + 5 digits)
6A: ± (1.5% + 5 digits) |
|
AC Current
(45Hz ~ 400Hz) |
6mA, 60mA, 600mA: ± (2% + 5 digits)
6A: ± (2.5% + 5 digits) |
|
Capacitance |
6nF, 6mF: ± (5% + 10 digits) 60nF, 600nF,
6μF, 60μF, 600μF: ± (4% + 5 digits) |
|
Continuity Buzzer |
Yes |
|
Diode |
Yes |
|
Trend Diagram |
Yes |
|
Testing Mode |
Manual / Auto ranging |
|
Max. Display |
5999 |
|
| |
|
|
 |
|
Application: |
|
1. Design and Debug |
|
2. Circuit function test |
|
3. Education and technical
training |
|
Main Features: |
|
20MHz～60MHz Bandwidth |
|
up to 250MS/s real time sample
rate |
|
2 in 1 (Multimeter function
support) |
|
Dual Input Channels |
|
Advanced Trigger Functions |
|
Automatic Measurement Support |
|
Replaceable Li-ion Battery
Back-up |
|
LCD back-light adjustment
Support |
|
3.8” TFT panel guarantee to read
clearly even under hard light |
|
|
Oscilloscope Specification |
|
Model Name |

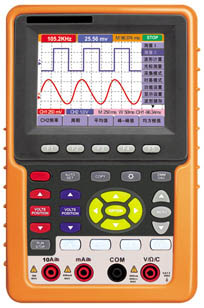

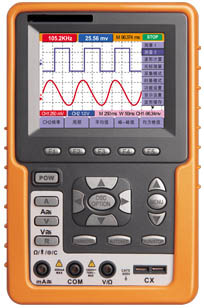

HDS1022M |
HDS2062M |
|
Bandwidth |
20MHz |
60MHz |
|
Sample Rate ( Real time ) |
100MS/s |
250 MS/s |
|
Rise time |
≤17.5ns |
≤5.8ns |
|
Display |
3.8 Inch color display with TFT
panel (320x240 pixels, 4096 colors) |
|
Channel |
Dual |
|
Record length |
Max. 6000 points on each channel |
|
GND reference |
Oscilloscope and Multimeter
independence |
|
Time base range |
5ns/div～5s/div |
|
Interval(
△T
)accuracy (full
bandwidth) |
Single: ±(1
interval time+100ppm×reading+0.6ns) |
|
Average>16: ±(1
interval time +100ppm×reading+0.4ns) |
|
Vertical Sensitivity |
5mV/div～5V/div
(at input) |
|
DC Gain Accuracy |
±5% |
|
A/D Converter |
8bits resolution (2CH
simultaneously) |
|
Max. Input Voltage |
400V(PK-PK) CAT II |
|
Trigger Type |
Edge, Video |
|
Trigger Mode |
Auto, Normal, Single |
|
Sampling Mode |
Normal, Peak detection, Average |
|
Waveform Measurement |
△V
and △T
between cursors; PK-PK, Average, RMS, Frequency, Cycle. |
|
Waveform storage |
4 waveforms |
|
Automatic Measurement |
PK-PK, Average, RMS, Frequency,
Cycle. |
|
Waveform math |
＋,－,×,÷,
Inverted |
|
Digital Multimeter Testing |
Voltage, Current, Resistance,
Capacitance, Diode, Continuity |
|
Multimeter specifications |
|
Full scale reading |
3 3/4 digits (Max.4000-count) |
|
Input Impedance |
10 MΩ |
|
Max input Voltage |
AC: 400V, DC: 400V |
|
Max input Current |
AC: 20A, DC: 20A |
|
General
specifications |
|
Interface |
USB,RS232 ports |
|
Power |
Supply: 100V～240V AC,50/60Hz
DC input: 8.5VDC, 1500mA |
|
Battery: 8 hours |
|
Dimension |
180mm x 113mm x 40mm |
|
Weight |
645g |
|
| |
|
|
 |
|
Application: |
|
1. Design and Debug |
|
2. Circuit function test |
|
3. Education and technical training |
|
Main Features: |
|
20MHz～60MHz Bandwidth |
|
up to 250MS/s real time sample rate |
|
2 in 1 (Multimeter function support) |
|
Dual Input Channels |
|
Advanced Trigger Functions |
|
Adjustable Trigger sensitivity |
|
USB Storage /Auto measurement |
|
Replaceable Li-ion Battery Back-up |
|
3.8” TFT panel guarantee to read clearly
even under hard light |
|
|
Oscilloscope Specification |
|
Model Name |
HDS1022M-N |
HDS2062M-N |
|
Bandwidth |
20MHz |
60MHz |
|
Sample Rate ( Real time ) |
100MS/s |
250 MS/s |
|
Rise time |
≤17.5ns |
≤5.8ns |
|
Display |
3.8 Inch color display with TFT
panel (320x240 pixels, 4096 colors) |
|
Channel |
Dual |
|
Record length |
Max. 6000 points on each channel |
|
GND reference |
Oscilloscope and Multimeter
independence |
|
Time base range |
5ns/div～5s/div |
|
Interval（△T）accuracy(full
bandwidth) |
Single: ±(1 interval
time+100ppm×reading+0.6ns) |
|
Average>16: ±(1 interval
time +100ppm×reading+0.4ns) |
|
Vertical Sensitivity |
5mV/div～5V/div (at input) |
|
DC Gain Accuracy |
±5% |
|
A/D Converter |
8bits resolution (2CH
simultaneously) |
|
Max. Input Voltage |
400V(PK-PK) CATII |
|
Trigger Type |
Edge, Video |
|
Trigger Mode |
Auto, Normal, Single |
|
Sampling Mode |
Normal, Peak detection, Average |
|
Waveform Measurement |
△V and △T between cursors; PK-PK,
Average,RMS, Frequency,Cycle. |
|
Waveform storage |
4 waveforms |
|
USB storage |
Support |
|
Automatic Measurement |
PK-PK, Average, RMS, Frequency,
Cycle. |
|
Waveform math |
＋,－,×,÷, Inverted |
|
Digital Multimeter Testing |
Voltage, Current, Resistance,
Capacitance, Diode, Continuity |
|
|
|
Multimeter
specifications |
|
Full scale reading |
3 3/4 digits (Max.4000-count) |
|
Input Impedance |
10 MΩ |
|
Max input Voltage |
AC: 400V, DC: 400V |
|
Max input Current |
AC: 10A, DC: 10A |
|
|
|
General
specifications |
|
Interface |
USB,RS232 ports |
|
Power |
Supply: 100V～240V AC,50/60Hz
DC input: 8.5VDC, 1500mA Battery: 8
hours |
|
Dimension |
180mm x 113mm x 40mm |
|
Weight |
645g |
|
| |
|
|
 |
YB40000 Series Handheld Digital
Storage Oscilloscope meter
Main Features:
The Unique Innovation and on behalf of the top level in China
● Vertical dual channel input, bandwidth 200MHz/100MHz/60MHz/40MHz;
● Sweep time base 50s/div ~ 1ns/div( or 5ns/div, 10ns/div); Maximum
real time sampling 500Msa/s, 1Gsa/s.
● Functions of Recall, Zoom and Cursor;
● Auto measurement for waveform parameter;
● Math calculation;
● Auto edge pulse width external vedio trig mode;
● Record function;
● DMM function;
● RS232, built in lithium batteries.
● To observe the waveform in the travelling environmental and
measure and store DC/AC voltage and resistor ect.
● Color screen. |
|
Vertical |
|
YB42005 |
YB41005 |
|
YB42010 |
YB41010 |
|
Channel |
CH1 CH2 |
|
Input coupling |
AC, DC |
|
Frequency bandwidth |
200MHz |
100MHz |
|
Rising time |
≤1.75ns |
≤3.5ns |
|
Deviation deflection |
2mV/div~50V/div,
1-2-5, ±3% |
|
Input impedance |
1MΩ(±2%)//16pF(±2 pF) |
|
Max. input voltage |
400V(DC+AC peak) ≤ 400Hz |
|
Vertical accuracy |
3%±1pixel, 2 mV/div ≤ 5%±1 pixel. |
|
Vertical resolution |
8 bits ADC |
|
Common-mode restrain
ratio |
DC≥20:1 |
|
Display |
±4 div |
|
Open noise |
≤0.4div |
|
Sweep time factor |
Rolling
50s/div~100ms/div; real time 50ms/div ~25ns/div; equivalent
10ns/div ~ 1ns/div |
|
Sampling velocity |
Real time: YB40005
series :500Msa/s, equivalent 10Gsa/s |
|
YB40010 series:
1Gsa/s, equivalent 25Gsa/s |
|
Horizontal |
Time resolution |
40ps |
|
Record length |
50k |
|
Storage depth |
250k |
|
Sampling mode |
Real time, equivalent,
average(2/4/8/64 four devisions can be set), peak value |
|
Horizontal mode |
Main time base, main
time base+ window expansion(×2, ×5, ×10) |
|
Cursor readout
accuracy |
±(1% read ±1 pixel) |
|
Display range |
±5div |
|
Trig |
Trig source |
CH1, CH2 , external |
|
Trig mode |
Auto, edge, external,
vedio, pulse width |
|
Hi-freq restrain |
Attenuate signal
higher than 100KHz, trig sensitivity normal at DC ~10KHz |
|
Low-freq restrain |
Attenuate signal lower
than 10KHz, the sensitivity normal for above 100KHz |
|
Trig level range |
±4div |
|
External trig |
Input impedance: 1MΩ(±5%)//20pF(±2
pF) |
|
Bandwidth: 500KHz |
|
Mode: auto, edge |
|
Trig level:
≤200mVp-p |
|
Vedio trig |
TV-V: ≥2div TV-H: ≥2div |
|
Memorizer |
Memorizer |
5 |
|
Output interface |
RS-232 |
|
Digital meter |
Resolution |
2003-3-4 |
|
Imput impedance |
10MΩ(±1%)//15Pf(±2pF) |
|
Voltage measurement |
Range:400mV(0.1mV),
4V(0.001V),40V(0.01V), 400v(0.1V) |
|
DC accuracy (Full
scale): ±2% |
|
AC accuracy (Full
scale): ±(2% readout±3 pixel): freq 50Hz~1KHz |
|
Resistor measurement |
Range:400Ω(0.1Ω), 4kΩ(0.001kΩ), 40kΩ(0.01kΩ), 400kΩ(0.1kΩ),
4MΩ(1kΩ), 40MΩ(0.01MΩ) |
|
Accuracy (Full scale): less than 20MΩ ±(2% readout ± 5
pixel) |
|
At 40MΩ ±(5% readout ± 5 pixel) |
|
Current measure |
Range: 4mA, 40mA, 4A |
|
Accuracy (Full scale:
40mA, 400mA, 4A(±3% +10 words) |
|
At 4mA,
4A(±5%+20words) |
|
Short circuit measure |
Tell resistor<40Ω(
beak) |
|
Diod measurement |
Max. readout 2V |
|
Screen |
Display |
5.7 inch LCD 320×240
lattice, backlight adjustable |
|
Waveform zone |
Vertical 8div ×25
dots/div, horizontal 10div×25 dots/div |
|
Physical features |
Powers supply |
AC 100V~240V/45Hz ~
60Hz |
|
Lithium batteries |
7.2V/4A, the workable
time around 4 hours. |
|
Size |
64H×169W×254D(mm) |
|
Weight |
About 1.8kg |
|
|
|
|
