Gem Instrument / Gemological Instrument

For gem refractometer / gemological refractometer, please click here Page7

¡¡

¡¡

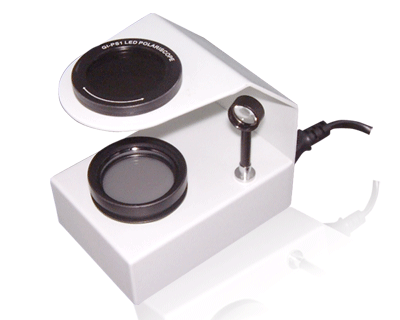

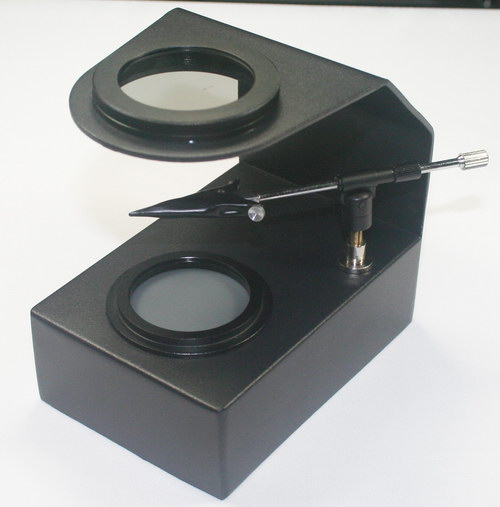

Polariscopes XHST1022

are used to quickly and easily check if gemstones are single or double refracting. It Is very useful in identifying Moissanite and detecting strain in diamonds and other gems. It is also used to separate synthetic amethyst from genuine. This desktop instrument has a built in light source.
specification:
Power input: 110V~220V 50HZ
Storage Temperature: 10-35¡ãC
Gross Weight: 750g

¡¡

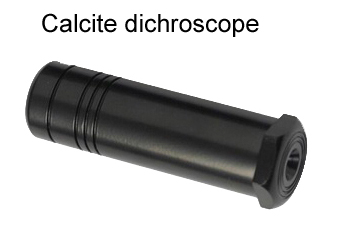

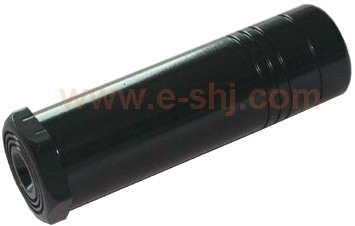

Dichroscopes XHST1024

Calcite Dichroscope shows whether or not a stone is dichroic (reflects 2 colors). This can be helpful in differentiating stones of the same color from one another. Dichroscopes can be useful with identifying gemstones that are still in the rough and when stones are set and difficult to get to with other instruments.

¡¡ ¡¡ ¡¡

¡¡

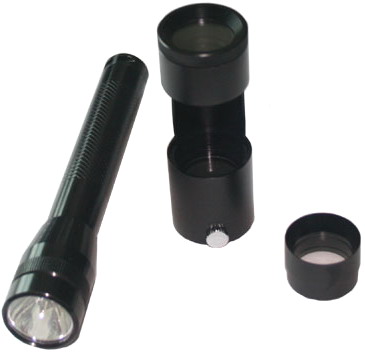

Hand Held Polariscope XHST1023

Polariscope is used to test cut or rough gemstones. Allows two polarising filters to observe the
structure and optical properties of precious stones or minerals, it can also be used in identifying
Moissannite and detecting strain in diamonds. It is used with a thing called a strainless sphere, (that is a glass sphere with no strain lines in it,) or a loupe. It visually shows if a stone is doubly or singularly
refractive and its optic sign. It will also show strain and twinning, which will occasionally help to
distinguish between natural and man made materials.

Key Features:

*Offers a year of warranty
* HEAVY DUTY and precise because it made with metal and optical glass
* Durable, reliable and made by professional craftsmen
* Gemmologist tool for diagnosing optical properties of a gemstone
  (singly refractive or double refractive)

Specifications:
* Size: Length: 80mm
* Diameter : 28mm
* Material: Optics glass, Metal

Accessories:
* Handheld LED flashlight
* Lenght: 156mm
* Diameter: 24mm
* Power: AA battery x 2 (Batteries are not included)
A black cloth carrying case also included!

Optional:
Customers also can use the 5LEDs light source as its testing light source!

¡¡

¡¡

¡¡

¡¡

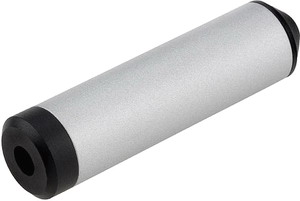

Grating Spectroscope XHST-GS

The spectroscope is an important tool of the modern gemologist.This concerns the infrared or near infrared spectroscopes.

A handheld spectroscope for visible light shows the absorption lines of the elements involved in producing its color.

It helps to separate ruby (chrome) against red or pink sapphire (iron) to name only one example.
This tool requires a good training and an appropriate light source.

Colorless stones show no absorption spectrum.

The sunlight shows a typical absorption spectrum, the Fraunhofersche lines.

Fluorescence lamps show an emission spectrum.

For demonstration you may examinate besides gemstones also liquids or flames colored by metal-salts.

¡¡
¡¡

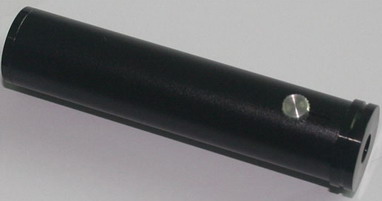

Prism Spectroscope XHST-PS

The spectroscope is an important tool of the modern gemologist.This concerns the infrared or near infrared spectroscopes.

A handheld spectroscope for visible light shows the absorption lines of the elements involved in producing its color.

It helps to separate ruby (chrome) against red or pink sapphire (iron) to name only one example.
¡¡

This tool requires a good training and an appropriate light source. Colorless stones show no absorption spectrum.

The sunlight shows a typical absorption spectrum, the Fraunhofersche lines.

Fluorescence lamps show an emission spectrum.

For demonstration you may examinate besides gemstones also liquids or flames colored by metal-salts.

¡¡

¡¡

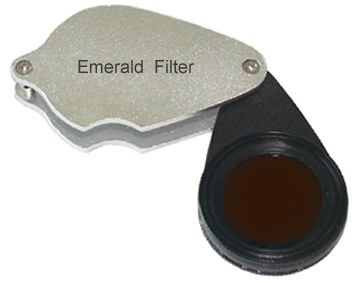

Chelsea filter XHST1025

This Chealse filter is designed to transmit only deep red and yellow-green light (best obtained under strong electric light). Just hold the filter close to your eye and look at the stones. Multiple stones can be viewed at once. It is helpful with identifying certain red, blue and green stones. Chelsea filters are primarily used for spotting fakes added to colored stone parcels and mixed in jewelry, and to differentiate emerald from emerald look-alikes, it is also useful for checking aquamarine and sapphires.
With the filter emeralds usually appear distinctly red or pinkish in color, while most imitations remain green. In rare cases certain emeralds, most notably from South Africa, may not show any pinkish color at all. A synthetic emerald will react the same as a genuine one.

¡¡

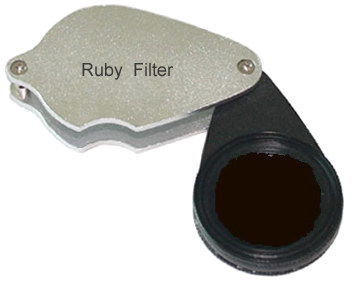

Ruby filter XHST1026

(both genuine and synthetic) appear brilliant red under the filter. Synthetic blue spinel appear yellow-orange or pink while aquamarine and sapphires appear green or green-grey.

¡¡ ¡¡ ¡¡

¡¡

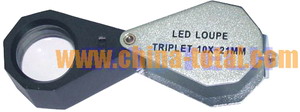

XHST1021I-P Prefessional loupe

ILLUMINATED LOUPE(SIX LED LIGHT)10X-21MM

Professional Loupe for gemstones identifying. To see the internel or surface characteristics  of gemstone
XHST1021I-P:

10X loupe chromatism

21mm lens

¡¡

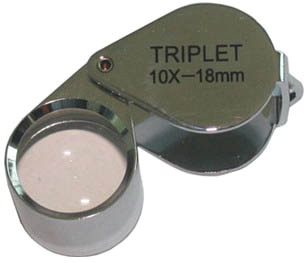

XHST10X-P Prefessional loupe

Professional Loupe for gemstones identifying. To see the internel or surface characteristics  of gemstone.

XHST10X-P:

10X loupe chromatism

18mm lens

¡¡
¡¡ ¡¡ ¡¡

¡¡

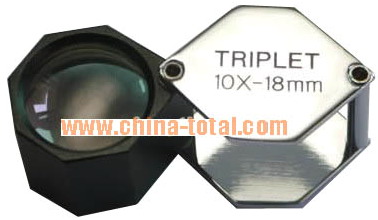

XHST1018-PS Prefessional loupe

Professional Loupe for gemstones identifying. To see the internel or surface characteristics  of gemstone.

XHST1018-PS:

10X loupe chromatism

18mm lens

¡¡

¡¡

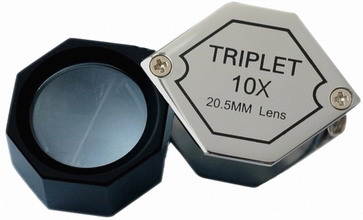

XHST10X-PS Prefessional loupe

Professional Loupe for gemstones identifying. To see the internel or surface characteristics  of gemstone.

XHST10X-PS:

10X loupe chromatism

20.5mm lens

¡¡

¡¡

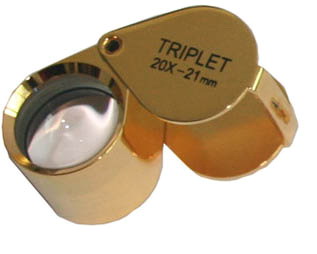

XHST20X-P Prefessional loupe

Professional Loupe for gemstones identifying. To see the internel or surface characteristics  of gemstone.

XHST20X-P:

20X loupe chromatism

21mm lens

¡¡

¡¡

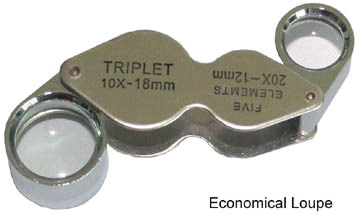

XHST1020  Economic loupe
10X-18mm and 20x-12mm

¡¡

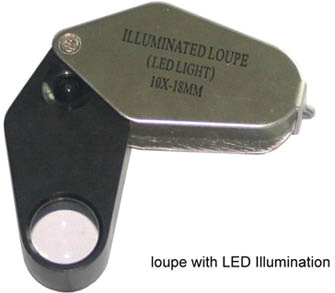

XHST1018I  Illuminated Economic loupe
10X-18MM
ILLUMINATED LOUPE(LED LIGHT)

¡¡

¡¡ ¡¡ ¡¡

¡¡

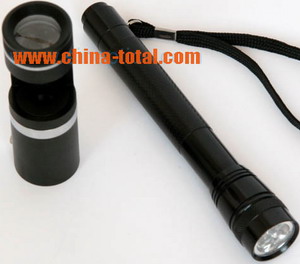

Dark field loupe XHST10X-DFL

(Hand held 10X dark filed loupe c/w hand held torch)

The darkfield loupe is a small instrument that provides 10x magnification as in a standard loupe, with an important added feature: it is combined with a specially constructed area that enables
you to view a gem against a black background with strong lateral lighting. This is called darkfield illumination, the reason why this instrument is called a darkfield loupe. This type of lighting environment makes it easier to see certain types more precisely what they
are. Especially valuable for colored gemstone buyers because seeing inclusions clearly plays an important role in separating one colored stone from another. The darkfield loupe is an important and essential tool in examining colored gemstones, for anyone buying diamonds or diamond jewelry and in viewing many fracture-filled diamonds that
are currently circulated worldwide. A fracture-filled diamond also known as clarity enhanced diamond, is a diamond which contains a crack or cracks that have been filled with a glass-like substance to improve the overall appearance of the stone. Using the darkfield loupe is the easiest way for most people to spot fracture-filled diamonds.

Specifications:
*Darkfield Loupe
*Magnification : 10x
*Viewing field (lense) : 18mm in diameter
*Length : 10mm
Accessory: Handheld LED flashlight's Specifications
*Length 156 mm
*Power : AA x 2

          *Packing: 45PCS/CTN, CTN SIZE: 55*28*28CM, G.W: 18.00KGS

¡¡

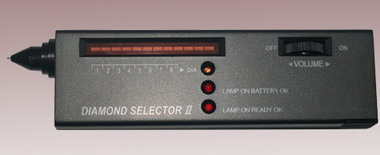

Diamond tester/selector DMT-100

MODEL: DMT-100

Product introduction:
1.When distinguish the true and false diamond,it shows the result of measuring with 2 kinds of sounds and 3 kinds of colors LED.

it is used widely and measure accurately.
2.Power supply: 9V battery

¡¡
¡¡

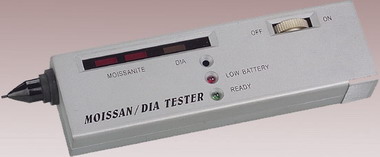

Diamond Tester DMT-200 (diamond&moissanite)

MODEL: DMT-200

Product introduction:
1.It is a novel instrument specially designed in order to distinguish rough diamond from Moissanite.

It can differentiate Diamond and Moissanite fleetly by showing two kinds of colors LED.

It is recommended to be used after positive testing result for diamond.
2.Power supply: 9V battery.

¡¡ ¡¡ ¡¡

¡¡

Diamond Tester Scale DMT-300

¡¡

Diamond Tester Scale DMT-500

MODEL: DMT-300  (Economic)

Product introduction:

1. Real Diamonds are indicated by RED LIGHT and SOUND.
2. Card size and compact
3. High accuracy, User-friendly
4. Can work with stones of any settings, shapes,
5. Can work with stones of any sizes in any temperature.
6. Dimensions (L x W x H): 85mmx54mmx 14mm
7. Power Supply:2 x AAA battery
8. Weight .75g .
9. 150pcs/carton Carton Size (L x W x H): 65cmx30cmx 15cm

¡¡

MODEL: DMT-500  (Economic)

Product introduction:

- Simple one step testing that will distinguish between diamonds, simulate, and moissanite
- 3 audible sounds to give a warning buzzer Easy to use visual and audio indicators Fast warm up and recovery time Operates on one 9 voltage battery (not included) Auto shuts off automatically after three minutes to save the battery Completely portable Weight: 80g

¡¡ ¡¡ ¡¡

¡¡

Diamond Tester Scale DMT-400

MODEL: DMT-400  (Economic)

Product introduction:

1.Secification:Type:Eagle Eye Brand "DIAMOND SURE I" Diamond Tester.
2.Working Voltage: DC 9v,6F 22 battery or AC adaptor(AC110-240 V, DC   9V,optional accessories)
3.Probe warming up time: about 25 seconds.
4.Working time: About 5 hours for continuous use
5.Ambient temperature:18C to 30C
6.Size:150mmX31.5mmX21mm(LxWxD)
¡¡

¡¡

¡¡ ¡¡ ¡¡

¡¡

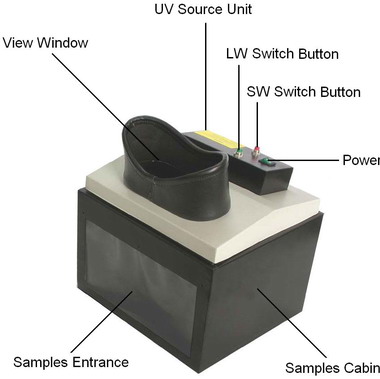

UV lamp(Longwave & Shortwave)

Shortwave/Longwave Ultraviolet Lamp. Check whether a gemstone fluoresces to longwave or shortwave ultraviolet light.
Specification:
Power Input: 220V 50HZ
Wavelength: SW 253.7nm
Wavelength: LW 365 nm
Caution:
The invisible radiations emitted by UV lamps, particularly short wave, can be harmful to the skin£¬and dangerous to the eyes.

¡¡

These lamps should never be looked at directly when using

¡¡

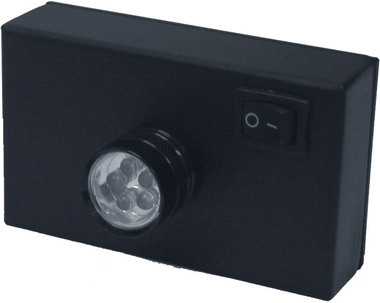

XHST-LS   NEW LED LIGHT SOURCE (5LEDS)

This multi-use desktop LED light is ideal for a variety of purposes but is most suited to use with a Refractometer(our model RHG-900,DGR-800 and RHG-600) polariscope or darkfield loupe. The light is composed of 5 white LED bulbs - this lamp is very bright. Lamp is powered by three AAA batteries.It is compatible with our separately listed hand held polariscope with torch, hand held dark field with torch and the gem tool kit containing these items.

Key Features:
*The most useful tool for a variety of gemstones
* Equipped with 5 high quality LED illuminator
* Reliable and transportable
* Fits perfectly to your polariscope or darkfield loupe
* Comes with an ON and OFF switch to save battery life when not in use
* Have a base that is wide enough to make it a sturdy tool
* 12 months of warranty

Specifications:
* Size: 100mm x 59mm
* Diameter: 24mm
* Power: AAA battery x 3
* Illumination: 5 high quality LED

¡¡

¡¡

¡¡

¡¡

Monochromatic Light Source For Refractometer

Details as:

Description: Light source for use with refractometers with built in yellow filter (589.3nm.)
Does not have white light option.

Specifications:
Size: 72 x 60 x 43 mm
Weight: 11 oz

¡¡

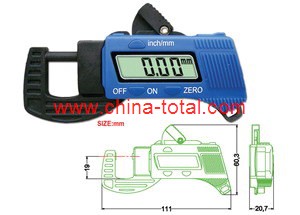

GEM Calper DC-3

Features:

Made of Lightweight Non-Marring Carbon Fiber Material. Free of hurting when measuring.
It is suited for measuring jewelry, magnetic objects and charged objects.
1.ON/OFF Switch
2.mm/inch Switch
3.Zero setting
4.Runs on by one 1.5V cell battery

Item No.

Specification

Throat depth

 TT-510-150

0-12.7mm*0.01

19mm

 TT-510-151

0-12.7mm*0.1

19mm

For other Gem gauges, please check here: Gem Thickness Gauge

¡¡ ¡¡ ¡¡

¡¡

¡¡

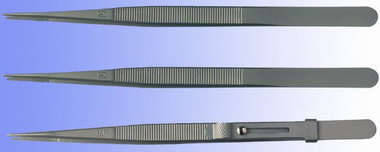

Tweezers XHST-T

¡¡ ¡¡ ¡¡

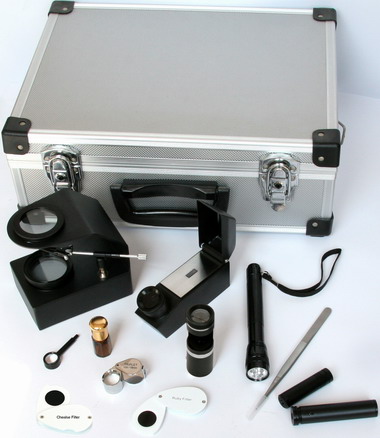

Gem-kit

The Gem-kit were set in a aluminum suitcase.

Gemkit-p (Professional type) is recommended to lab using and the refractometer RHG-900 is a professional type, it is always used when the certificate for gemstones was needed.
Gemkit-p (without hand held polariscope)
Gemkit-p (with hand held polariscope)

1.       Gem refractometer RHG-900 w/index oil

2.       Bench polariscope w/ gemstone clip

3.       Natural calcite dichroscope

4.       hand held spectroscope(prism type)

5.       hand held 10X dark filed loupe w/ hand held torch

6.       Chelsea filter

7.       Ruby filter

8.       10X professional loupe

9.       Tweezer

10.   hand held polariscope(optional)

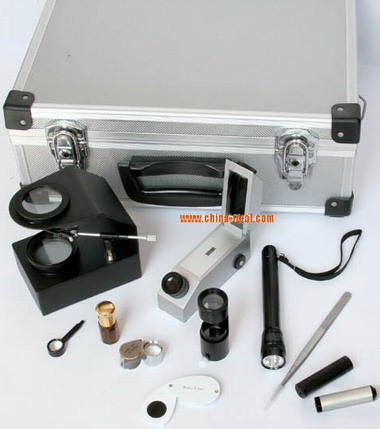

The Gemkit-e(Economial type) is specially recommended to student learning, its price is lower:
Gemkit-e (without hand held polariscope)
Gemkit-e (with hand held polariscope)

1.       Gem refractometer RHG-700 w/ built-in light source w/index oil

2.       Bench polariscope w/ gemstone clip

3.       Natural calcite dichroscope

4.       Grating spectroscope

5.       hand held polariscope w/ hand held torch

6.       Chelsea filter

7.       10X professional loupe

8.       Tweezer

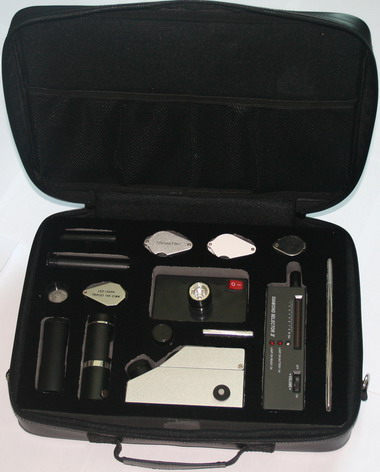

GEMKITS-W (black leather or cloth suitcase)
1.GEMKITS-W1:
(included as belowed:1. Hand held polariscope 2. Dark field  loupe 3.Ruby filter(free) 4  Chelsea filter 5. Professional 10X loupe with 6LEDs light 6. Professional 20X loupe 7. Tweezer 8. Diamond tester 9. Dichroscope 10.Gration Spectroscope 11.RHG-700 with Index oil for RHG-700 12.LED Light source for hand help polariscope/10X dark filed loupe)

2.GEMKITS-W2:
(included as belowed:1. Hand held polariscope 2. Dark field  loupe 3.Ruby filter(free) 4  Chelsea filter 5. Professional 10X loupe with 6LEDs light 6. Professional 20X loupe 7. Tweezer 8. Diamond tester 9. Dichroscope 10.Prism Spectroscope 11.RHG-600 with Index oil for RHG-600 12.LED Light source for hand help polariscope/10X dark filed loupeRHG-600)

3.GEMKITS-W3:
included as belowed:1. Hand held polariscope 2. Dark field  loupe 3.Ruby filter(free) 4  Chelsea filter 5. Professional 10X loupe with 6LEDs light 6. Professional 20X loupe 7. Tweezer 8. Diamond tester 9. Dichroscope 10.Prism Spectroscope 11.RHG-900 with Index oil for RHG-900 12.LED Light source for hand help polariscope/10X dark filed loupe/RHG-900)

GEMKITS-W

¡¡

Gemkit-p

¡¡

¡¡

Gemkit-e

¡¡

For gem refractometer / gemological refractometer, please click here Page7

 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
