TACHOMETER           page1         page2

﹛

INTELLIGENT TACHOMETER

﹛

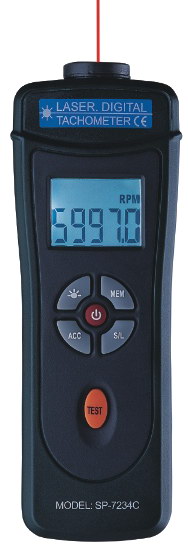

SP7234C Digital Non Contact + Laser 2 in 1 Tachometer

  • 5 Digits Large Dual LCD Display with Bright White Backlight

  • Integrates laser/optical tachometer and a counter, innovative and unique

  • Applies large-scale integrated circuits and high-tech smart design to ensure accuracy and reliability

  • User Friendly Control Panel

  • Non-Contact RPM Measurement

  • Wide RPM Measurement Range, up to 99,999RPM

  • Automatic measurement range shift, easy to operate

  • Long Measure Distance up to 2m(6.5ft)

  • 999 Seconds Counter

  • Accuracy up to 0.03%

  • 99 Sets Memory Storage

  • MAX/MIN & Data Hold (Last Reading)

  • Low Battery Warning & Over Level indicator

  • Auto Power Off, maximizing battery life

  • Highly accurate, easy to use, fast response and easy to calibrate

  • APPROVED BY STRICT QUALITY AND SAFETY STANDARDS ensures a reliability, stability, long and trouble-free life

  • New aerodynamic shape design, size significantly smaller and easier to single-hand operation

Specifications:

Speed Measure Range: 0.5~9,999.9 / 10,000~99,999

Resolution: 0.1RPM/1RPM

Accuracy: ㊣(0.03%+2d)

Laser Testing distance: 3cm~2m, angle: 120∼

Optical Testing distance: 5cm-60cm

Display 5 digital LCD display, height: 12.2mm

Display: White backlight LCD

Display Period: 4 times/sec.

Static Current: <4.5mA

Special Functions: integrates a tachometer and a counter; 999 seconds count function; 99 group data records

Power Supply: AA1.5V Battery x 4

Dimension: 164.5 x 61 x 42mm

Weight: 150g

Accessories included:

AA1.5V Battery x 4, User's Manual, Reflective Tape x 2. Carrying Pouch

﹛

﹛

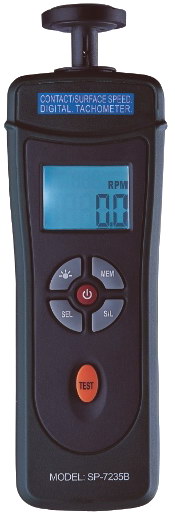

SP7235B INTELLIGENT TACHOMETER

Specifications:

Display:                    White backlight LCD

Accuracy:                 ㊣(0.05%+1digit)

Sampling Time:          0.5sec (over 120RPM)

Range Selected:        Auto-Ranging, Auto-Power off

Memory:                    Last Value, Max. Value and Min. Value

Data Stored:              Can store 96s

Measuring Range:      0.5 to 19,999RPM   (CONTACT TACH)

                          0.05 to 1,999.9m/min   SURFACE SPEED (m/min)

                          0.2 to 6560ft/min          SURFACE SPEED (ft/min)

Resolution:        0.1RPM (0.5 to 999.9RPM)        (CONTACT TACH)

                        1RPM (over 1,000RPM)              (CONTACT TACH)

            0.01m/min (0.05 to 99.99m/min) SURFACE SPEED (m/min)

            0.1m/min (over 100m/min) SURFACE SPEED (m/min)

            0.1ft/min (0.1 to 999.9ft/min) SURFACE SPEED (ft/min)

            1ft/min (over 1,000ft/min)      SURFACE SPEED (ft/min)

Time Base:                 6MHz Quartz crystal

Power Consumption:   Approx. 45mA

Weight:                      158g

Dimensions:               183x61x42mm

Power Supply:            4x1.5V AA battery

2. Packing Information:

Package:                              Gift Box

Carton Size:                          43x42x28cm

Quantity / Carton:                   50pcs

Net Weight/Gross Weight:      16/17KGs

﹛

﹛

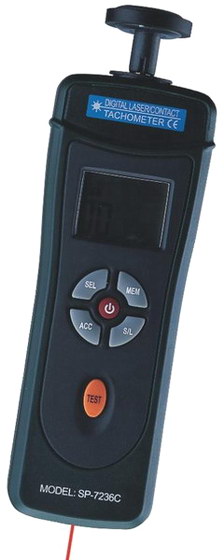

SP7236C Digital Contact+Laser+continiously 3 in 1 Tachometer

  • Reverse face: Display always reads in upright, no matter which way it is turned

  • 5 Digits Large Dual LCD Display with Bright White Backlight

  • User Friendly Control Panel

  • RPM (Non-Contact/Contact) Measurement

  • Linear Speed (Contact) Measurement

  • Wide RPM Measurement Range, up to 99,999RPM

  • Linear Speed Measurement Unit Automatic Convert

  • Long Measure Distance up to 2m(6.5ft)

  • 999 Seconds Counter

  • Accuracy up to 0.03%

  • 99 Sets Memory Storage

  • MAX/MIN Hold

  • Data Hold (Last Reading)

  • With m/min, m/sec & ft/min velocity measuring units

  • Low Battery Warning & Over Level indicator

  • Auto Power Off

  • Highly accurate, easy to use, fast response and easy to calibrate

  • APPROVED BY STRICT QUALITY AND SAFETY STANDARDS ensures a reliability, stability, long and trouble-free life

Specifications:

Measuring range

Speed: 0.5~99,999RPM

Linear velocity: 0.1~9,999.9RPM

Resolution:

Speed: 0.1RPM(0.5~9,999.9RPM); 1RPM(10,000~99,999RPM)

Linear velocity: 0.1M/min(0.1~9,999.9RPM)

Acurancy: ㊣(0.03%+2d)

Laser Testing distance: 3cm~2m, angle: 120∼

Optical Testing distance: 5cm-60cm

Express function

Display 5 digital LCD display, the subtitles12.2mm

special functions: integrates a tachometer and a counter; 999 seconds count function; 99 group data records

Power Supply: AA1.5V Battery x 4

Dimension: 183 x 61 x 42mm

Weight: 150g

Accessories included:

AA1.5V Battery x 4 , User's Manual, Reflective Tape x 2, Flat Wheel Tip Adapter

Funnel Tip Adapter, Cone Tip Adapter, Carrying Pouch
﹛

﹛

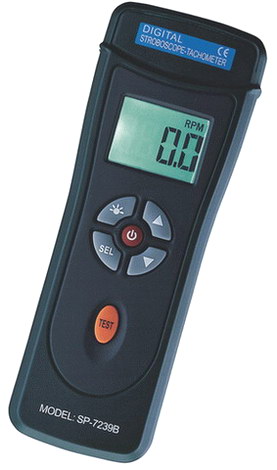

SP7239B INTELLIGENT TACHOMETER+SPTROBSCOPE 2 in 1

Product Features

  •  High brightness, white backlight, user-friendly environment in the dark observation data

  •  10-meter operation without automatic shutdown, extended battery life

  •  Long-life high-brightness LED light source, greatly reducing the overall power consumption

  •  DC battery power to users for the use and carry a great deal of convenience

  •  High-tech intelligent design concepts, and ensure that the product reliability and durability

  •  New aerodynamic shape design, size significantly smaller and easier to single-hand operation

  • General characteristics

  •  Show : four LCD display, the subtitles 13.5mm

  •  Send significant period : 4 times / second

  •  Power : 4 on the 5th alkaline batteries

  •  Instrument Size : 164 (L) x61 (W) x30 (H) mm

  •  Weight : 138g (excluding batteries)

  •  Minimum resolution : 0.1RPM

Specifications

Its range

Resolution

Accuracy

60.0~999.9

0.1RPM

㊣(0.03%+2d)

1000~9999

1RPM

﹛

﹛
﹛

﹛

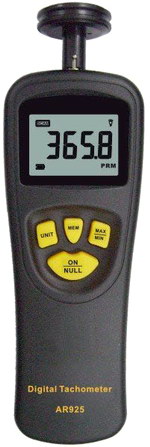

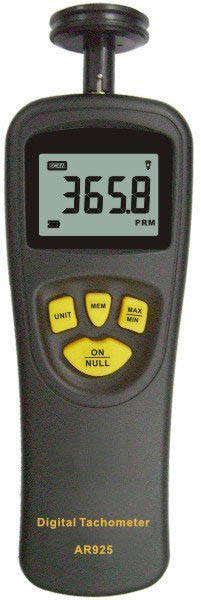

Name: Tachometer AR925  (NEW)

Model: AR925

﹛

GENERNAL FEATURES & SPECIFICATIONS
-Measuring Range: 0.5~19999RPM|0.05~19999.9m/min|0.2~6560Ft/min
-Resolution: 0.1RPM(0.5~999.9RPM)|1PRM(over 1000RPM)
                  0.01m/min(0.05~99.99m/min|0.1m/min (over 100m/min)
                  0.1Ft/min(0.1~999.9Ft/min)|1Ft/min (over 1000Ft/min)
-Accuracy: ㊣(0.05%+1 digital)
-Sampling Frequency: 0.8secㄗOver 60 RPM)
-Working Temperature: -10ºC‵40ºC
-Unit Selection: ﹟
-Measured Data Storing Function: ﹟
-Max & Min Data Function: ﹟
-Auto Power Off: ﹟
-Clear Up Function: ﹟
-Low Battery Indication: ﹟

PACKING INFORMATION
Power 3*1.5V AA Alkaline Battery
Product Net Weight: 146g
Product Size: 155*55*35mm
Packing Gift Box

﹛ ﹛

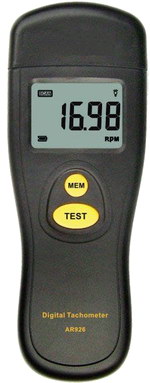

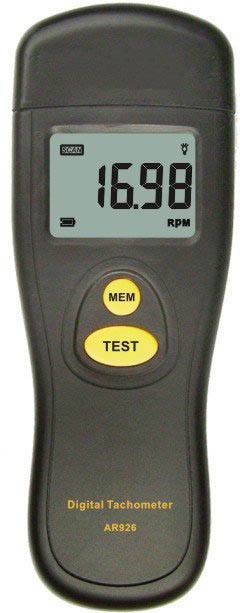

Name: Tachometer AR926

Model: AR926

GENERNAL FEATURES & SPECIFICATIONS (NEW)
-Measuring Range: 2.5~99999RPM
-Resolution: 0.1RPM(0.5~999.9RPM)|1PRM(over 1000RPM)
-Accuracy: ㊣(0.05% + 1digital)
-Sampling Frequency: 0.8sec (Over 60 RPM)

-Max/Min/Current test mode﹛﹛﹛
-Measured Data Storing Function: ﹟
-Auto Power Off: ﹟
-Low Battery Indication

PACKING INFORMATION
Power 3*1.5V AA Alkaline Battery
Product Net Weight: 146g
Product Size: 155*55*35mm
Packing Gift Box

孛我扳把抉志抉抄 找忘抒抉技快找把 AR926 抉找扶抉扼我找扼攸 抗 找我扭批 扳抉找抉改抖快抗找把我折快扼抗我抒 找忘抒抉技快找把抉志.
坏我忘扭忘戒抉扶 我戒技快把快扶我抄 找忘抒抉技快找把忘 2,5抉忌/技我扶-99999抉忌/技我扶.
妥抉折扶抉扼找抆 找忘抒抉技快找把忘 扼抉扼找忘志抖攸快找 ±0,05% + 1 扯我扳把忘.
妓忘戒把快扮快扶我快 找忘抒抉技快找把忘:
0,1抉忌/技我扶 (扭把我 扼抗抉把抉扼找我 志把忘投快扶我攸 2,5抉忌/技我扶 - 999,9抉忌/技我扶)
1 抉忌/技我扶 (扭把我 扼抗抉把抉扼找我 志把忘投快扶我攸 扼志抑扮快 1000抉忌/技我扶).
完忘扼找抉找忘 我戒技快把快扶我抄 0,8扼快抗.
坏抉扭抉抖扶我找快抖抆扶抑快 扳批扶抗扯我我 扭把我忌抉把忘: 我扶忱我抗忘扯我攸 戒忘把攸忱忘 忌忘找忘把快抄抗我, 扭抉忱扼志快找抗忘 改抗把忘扶忘, 扳批扶抗扯我攸 HOLD 忱抖攸 扳我抗扼忘扯我我 扭抉抗忘戒忘扶我抄.
妤我找忘扶我快 找忘抒抉技快找把忘 扭把抉我戒志抉忱我找扼攸 抉找 3-抒 忌忘找忘把快快抗 AAA 1,5圾.
妓忘忌抉折我抄 忱我忘扭忘戒抉扶 找快技扭快把忘找批把 0-50⊥.
妓快忪我技 抒把忘扶快扶我攸 -20-70⊥.
﹛ ﹛

MULTIFUNCTIONAL ENGINE TACHOMETER

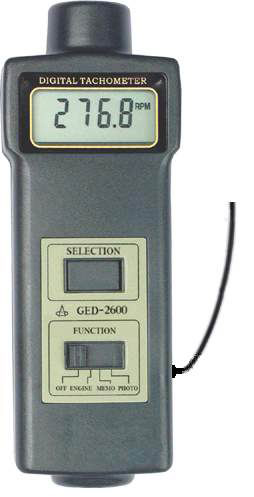

Digital Engine Tachometer GED-2600

#Contact, Laser Engine Tachometer, suitable for the laboratory and harsh field conditions.

#Applicable to the product departments of motor, fan, paper-product, plastics, chemical fiber, washing-machine, automobile, airplane, steamer etc.

#Application: Any rotating objects
2-circle 1,2,3,4-cylinder
4-circle 1,2,3,4,5,6,8-cylinder

Features

#Multifunctional. It combines the engine tachometer and laser tachometer into one.As Engine Tachometer to measure engine revolution at the high-tension cords, and as laser tachometer to measure the RPM of any rotating objects.

#The last Value / max. Value / min. Value will be automatically stored in memory and can be displayed by turn.

#Used the exclusive Micro-computer LSIcircuit and crystal time base to offer high accuracy measurement & fast measuring time.

#Wide measuring range and high resolution.

#Digital display gives exact reading with no guessing or errors.

#The use of durable, long-lasting components, including a strong, light weight ABS plastic housing assures maintenance free for many years. The housing has been carefully shaped to fit comfortably in either hand.

Specifications

Display 4 digits, 10 mm LCD

Range:
Engine: 100~20,000 r/min
Laser: 2.5~99,999 r/min

Detection method:
    Engine: Electromagnetic induction (High tension cord)
    Laser: reflection

Distance:
Engine: 10~200mm
Laser: 50~500mm, max up to 1500mm

Resolution 0.1 RPM (2.5~999.9RPM)
              1 RPM (over 1000RPM)

Operating condition: Temp. 0~50∼C ,
                            Humidity <80%

Accuracy +/-(0.05%n+1d)

Memory: MAX/MIN/LAST value

Power supply: 4x1.5V AA battery

Dimensions: 178x68x39 mm

Weight (not including probe): 164g

Standard Delivery

1 Main unit GED-2600

1 Sturdy carrying case with handle

1 User manual
﹛ ﹛

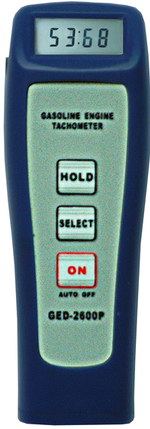

Digital Engine Tachometer GED-2600P

﹛

Application: 2 in 1 (Engine & Laser tachometer ) Applicable to the product departments of motor, fan, paper-product, plastics, chemical fiber, washing-machine, automobile, airplane, steamer etc.

﹛

Model:GED2600P

Application: 2-CIRCLE 1,2,3,4-cylinder

4-CIRCLE 1,2,3,4,5,6,8- cylinder

Measurement range: engine 100-9999r/min

Detection method: engine  electromagnetic induction

Resolution:0.1/1

With RS232C interface

Accuracy: ㊣(0.05%n+1d)

MAX value HOLD

Auto power off

Operating conditions: 0-+45⊥(32沈-104沈),≒90%RH

Power supply: 2x1.5V AAA (UM-4) battery

Dimensions: 100x35x23mm

Weight (including battery): 50g

﹛

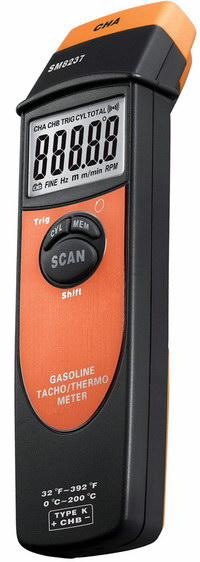

GASOLINE ENGINE TACHOMETER
SM8237

Inductive type measure the engine speed by noncontact
Measuring the temperature cooling water in engine by contact
Testing the rotate speed of multi-cylinder in same time,or testing one of cylinder rotate speed
Testing the rotate speed used to 2 stokes and 4 strokes
Can set the cylinder in 2,3,4,5,6,8,12 or set the impulse of each rotation
Memory the maximum value,minimum value and last value
Can store 300 testing data
Low battery alarming
Yellow-green back light
ºC and 沈 Temperature switch function
Rotation Speed Range:100-19999RPM
Rotation Speed Resolution:㊣1RPM
㊣1RPM(100-11999r/min)
㊣2RPM(12000-20000r/min)
Temperature Range:0-200ºC
Temperature Resolution:㊣0.5ºC
Temperature Accuracy:㊣2ºC

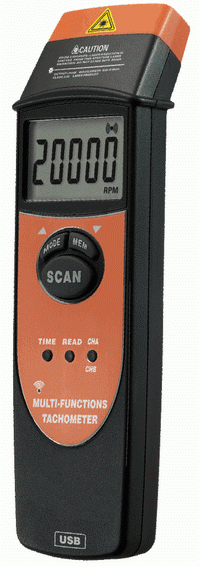

MULTI-FUNCTIONAL RECORDING TACHOMETER
SM8238

Measure Range: 2.5~99,999RPM
Resolution: 0.01RPM(3~999.99RPM)
﹛﹛﹛﹛﹛﹛0.1RPM(1,000~9,999.9RPM)
﹛﹛﹛﹛﹛﹛1RPM(over 10,000RPM)
Accuracy: ㊣(0.05%+1 digit)
Respones Time: ≡1,000RPM, 0.2second
﹛﹛﹛﹛﹛﹛﹛ <1,000RPM, 0.5second
Memory Function: Single-mode automatic memory
maximum, minimun, the last measurement, continuous
mode can record 15000 measuring values.
Interface: MINI-USB interface
The lens with filter, only receive the red light with
specific wavelength and filter the other light effectively.
Measurable speed(RPM), frequency(Hz), with the
accumulated date function.
White backlight LCD. Compalt valuable body.

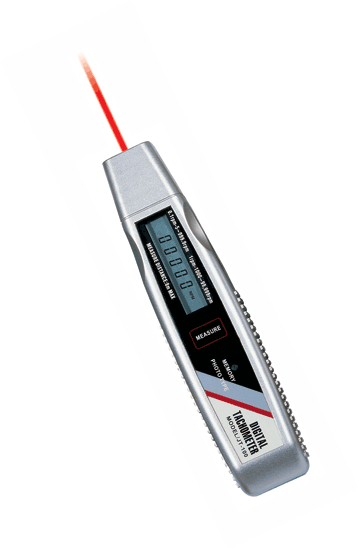

No-Contact Tachometer

JT-100

Display:5 Digits,10mm(0.4)LCD

Measurement Range:5-99.9999RPM

Resolution:0.1RPM (<1000RPM) 1RPM (=1000RPM)

Accuracy(23㊣5ºC):㊣0.05%+1d

Test Distance:Approx.8m.

Memory:Last,Maximum,Minimum Value

Battery:4 x 1.5V AA (UM-3)battery

Size:170 x 42 x 31mm

Specifications

﹞Display:5 Digits,10mm(0.4)LCD

﹞Measurement Range:5-99.9999RPM

﹞Resolution:0.1RPM (<1000RPM) 1RPM (=1000RPM)

﹞Accuracy(23㊣5ºC):㊣0.05%+1d

﹞Test Distance:Approx.8m.

﹞Memory:Last,Maximum,Minimum Value

﹞Battery:4 x 1.5V AA (UM-3)battery

﹞Size:170 x 42 x 31mm

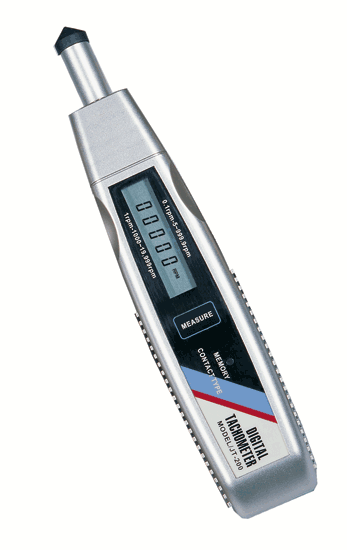

Contact  Tachometer

JT-200

Display:5 Digits,10mm(0.4)LCD

Measurement Range:5-99.9999RPM

Resolution:0.1RPM (<1000RPM) 1RPM (=1000RPM)

Accuracy(23㊣5ºC):㊣0.05%+1d

Memory:Last,Maximum,Minimum Value

Battery:4 x 1.5V AA (UM-3)battery

Size:204.5 x 42 x 31mm

Specifications

﹞Display:5 Digits,10mm(0.4)LCD

﹞Measurement Range:5-99.9999RPM

﹞Resolution:0.1RPM (<1000RPM) 1RPM (=1000RPM)

﹞Accuracy(23㊣5ºC):㊣0.05%+1d

﹞Memory:Last,Maximum,Minimum Value

﹞Battery:4 x 1.5V AA (UM-3)battery

﹞Size:204.5 x 42 x 31mm

﹛

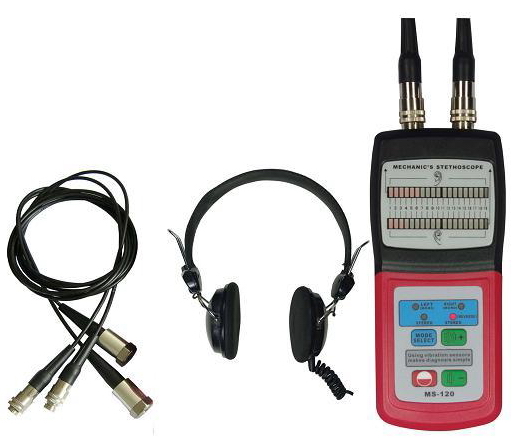

mechanic's stethoscope MS-120

1. General Description

A. Widely used in ship, automobile, chemical manufacture, metallurgy, machine, household appliance and many other fields. It can pick up and amplify the weak audio signals via a sensitive piezoelectric sensor, and distinguish the normal/abnormal signal and its location.

B. Designed to help locate the source of excess bearing and machine noise easily at low cost. It is an ideal easy to use listening device for mechanical generated noise in all types of applications.

C. Used to quickly locate the source of engine noise such as piston slap, worn gears and bearings, damaged valves, water pump failure, blown gaskets. Also useful tracking down dashboard rattles and squeaks.

2. Main applications

A. Rapidly detect the machine noise from a diesel engine, an air cylinder or an automobile, and exactly find out the malfunction position.

B. Used to check the piston slap, worn gears, damaged valves and bearings, water pump failure in industry.

C. Monitor the automatic assembly line to ensure proper operation.

D. Identify the abnormal noise from an engine or a motor to avoid accident.

E. Monitor the working of all kinds of axletrees.

F. Monitor the working of a ship or vessel.

G. Used in chemical industry to check whether the liquid in a pipe is flowing or blocked.

I. Used in the maintenance of various vehicles and household appliances.

3. Specifications

Frequency range: 10-10KHz

Input Impedance: over 20M

Ambient Noise permitted: 100dB

Working Temperature: -10~60Celsius degree

Power supply: 4x1.5 AAA batteries

Size: 156℅67℅28mm

Weight: 270 g(including sensors)

﹛

TACHOMETER           page1         page2
