DDS-W
SERIES MICROPROCESSOR CONDUCTIVITY METER
Single Point Push-Button Calibration:
DDS-W series with single point calibration function, you need only
set conductivity value of the calibration solution at 25oC
and immerse conductivity electrode into solution, then press [ENTER]
key, the meter will calibrated automatically.
Auto-Ranging for Conductivity:
The meter with auto-ranging function when measure conductivity.
After electrode immersed in solution, the meter will fast response
and convert range.
Auto Temperature Compensation:
DDS-12DW will recognize the temperature sensor automatically and
measure temperature after temperature sensor connected to the meter.
If the conductivity electrode connected to it, the meter will
enter automatic temperature
compensation.
Adjustable Temperature Coefficient:
Different ion solution usually have different temperature
coefficient, setting temperature coefficient correctly is very
important to measurement, DDS-W series can be set in the range of 0
to 3.9%per centigrade degree.
Adjustable Cell Constant:
When measuring higher or lower
conductivity solution, you should choose conductivity electrode with
different constant. The meter with three
cell constant (0.1,1,10) for your choice.
What's
included:
DJS-1 conductivity electrode(K=1),
electrode holder, 9V power adapters, temperature probe (only for
DDS-12DW)
| Model |
|
DDS-11AW |
DDS-307W |
|
DDS-12DW |
|
Conductivity Range |
|
0~1.999, 19.99, 199.9,
1999uS/cm, 19.99, 199.9mS/cm |
|
Conductivity Accuracy |
|
±1.5%
F.S |
±1%
F.S |
±1%
F.S |
|
Temperature Range |
|
--- |
--- |
0~100oC |
|
Temperature Accuracy |
|
--- |
--- |
±1oC |
|
Calibration Points |
|
1 Point |
|
Calibration Solution |
|
146.6uS/cm, 1408uS/cm, 12.85mS/cm |
|
Temperature Compensation |
|
0~50oC, Manual |
0~50oC, Manual |
0~50oC, Manual or
Automatic |
|
Temperature Coefficient |
|
0~3.9%/oC |
|
Cell Constant |
|
K=0.1, 1, 10, Adjustable |
|
Display |
|
LCD |
|
Power Requirements |
|
9VDC, using AC adapters 220VAC, 50Hz |
|
Dimensions |
|
210(L)mm×205(W)mm×65(H)mm
|
|
Weight |
|
1.5kg |
|
|
|
|
|
FEATURES:
:: Up to 5 points
calibration (1 point per range)
:: Auto-ranging for
conductivity
:: Automatic temperature
compensation
:: Adjustable temperature
coefficient (0 to 3.9%)
:: Adjustable cell constant
(K=0.1, 1, 10)
:: Adjustable TDS
coefficient
:: Automatic message prompts
:: Expanded memory stores
and recalls 99 data sets
:: USB
Communication interface can be sent data to
computer
METERS INCLUDED:
DJS-1
and
DJS-10
Conductivity
Electrode,
Temperature
Probe, DC9V Power
Adapters
 |

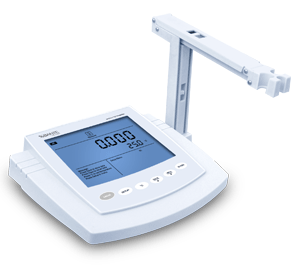

PHS950
PRECISION CONDUCTIVITY/TDS/SALINITY/RESISTIVITY METER
PHS950
meter
is
used
for measuring conductivity,
Total
Dissolved Solid (TDS), salinity, resistivity and
temperature
in
liquids.
SPECIFICATIONS:
|
Model |
|
PHS950 |
|
Conductivity
Range |
|
0~1.999, 19.99,
199.9, 1999uS/cm, 19.99, 199.9mS/cm |
|
Conductivity
Accuracy |
|
±0.5%
F.S |
|
TDS Range |
|
0~Max.200ppt |
|
TDS Accuracy |
|
±1%
F.S |
|
Salinity Range |
|
0.00~5.00% (50ppt) |
|
Salinity
Accuracy |
|
±0.05%
(0.5ppt) |
|
Resistivity
Range |
|
0 to 100MΩ |
|
Resistivity
Accuracy |
|
±1% F.S |
|
Temperature
Range |
|
0~100oC |
|
Temperature
Accuracy |
|
±1oC |
|
Calibration Points |
|
1 point per range |
|
|
Temperature
Compensation |
|
0~50oC,
Automatic or Manual |
|
Temperature
Coefficient |
|
0~3.9%/oC |
|
TDS Conversion
Factor |
|
0.01~1.00 |
|
Cell Constant |
|
K=0.1, 1, 10
(Adjustable) |
|
Memory and
Output |
|
99 data sets
with Date/Time stamping,
USB communication
interface |
|
Display |
|
6.5'
LCD |
|
Power Requirements |
|
DC9V, using
AC adapters, 220VAC, 50Hz |
|
Dimensions |
|
210(L)×188(W)×60(H)mm |
|
Weight |
|
1.7kg |
|
|
|
|
|
 |

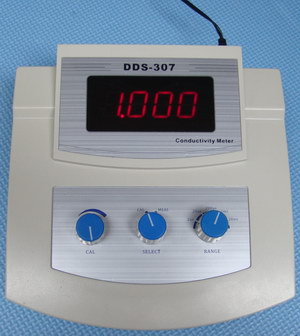

DDS-307
Conductivity Meter
|
Model |
DDS-307 |
|
Range |
0.001~2μS/cm
0.01~20μS/cm
0.1~200μS/cm
0.001~2ms/cm
0.01~20ms/cm
0.1~200mS/cm |
|
Accuracy |
±1% Full
Scale |
|
Power |
DC9V 100mA |
|
Operating Conditions |
Temperature: 5~40ºC
Humidity: 90%
maximum |
|
Dimensions |
208×200×76mm |
|
Weight |
390g |
|
|
|
|
|
Optional accessories:
1. DJS-1 bright electrode
2. DJS-10 Conductivity electrode
3. DJS-0.1 Platinum electrode
4. DJS-0.01 Titanium alloy electrode
Overall dimension & weight:
Shipping package dimension:
332-265-275mm
Gross weight: 3kg Net weight: 2kg |

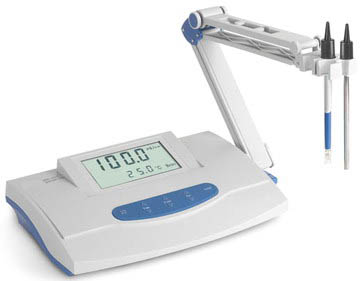

DDSJK-307 Conductivity Meter
Characteristics:
1. 31/2LED display
2. With manual temperature compensation.
3. There are four types of electrodes for conduction cell constant:
0.01,0.1,1.0 and 10.0cm-1 ,user can select by your need.
4. Automatic switching measuring frequency, measuring ultrapure
water with using K=0.01cm-1 titanium alloy electrode and sealing
measuring cell
5. With 0~10mV output signal
Specifications:
1. Measurement range: 0-1×105 mS/cm
There is the best correspondence point between conductivity
measuring range and conduction cell constant
|
conduction cell constant(cm-1
) |
0.01 |
0.1 |
1 |
10 |
|
Measuring range (uS/cm) |
0~2 |
0.2~20 |
2~1×104 |
1×104~1×105 |
2. Electrode constant, cm-1: 0.01. 0.1, 1.0.10.0
3. Accuracy of the electric unit: ±0.5%(FS) ±1 bit
4. Stability of the electronic unit: ±0.33%(FS) ±1bit/3h
5. Accuracy ±1.0%(FS) ±1 bit
6. The range of temperature compensation: 15-35ºC, basic
temperature: 25ºC
Standard configuration:
|
1. Main instrument |
1 |
|
2. Power cable |
1 |
|
3. Platinum-black Electrode
DJS-1C |
1 |
|
4. Multi-function Electrode support stand |
1 |
|
|
|
|
|
|
DDSJK-307A Conductivity/TDS/ºC Meter
Functions:
Large screen and LCD segmented display
It functions as automatic and manual temperature compensation.
If matched with the titanium alloy sensor of 0.01cm-1 and sealed measuring reservoir, it can test high purity water.
It is equipped with DJS-1C conductancesensor(platinum black) and T-818-B-6 temperaturesensor.
Specifications:
1, Measuring range:
Conductivity: 0.00μS/cm~100μS/cm
TDS:
0~1000 mg/L
Temperature: 0.0~60.0
ºC
2,
Accuracy:
Conductivity: ±0.5%FS
T D S:
±1.0%FS)
Temperature: ±0.3ºC±1 bit
3,
Stability:
(±0.33%FS±1 digital) /3h
4,
Temperature compensation range: Manual/Automatic (0.0~40.0)ºC
5,
Temperature compensation coefficient: 2%
6,
Power supply:: AC(220±22)V; (50±l)Hz
7,
Dimension(mm):
300×200×72
8,
Weight: 1.5kg
9,
Case outside serial No: WXS-A008-1
Conductance Constant and corresponding Conductivity measuring range
|
Electrodeconstant (K) (cm-1) |
0.01 |
0.1 |
1 |
10 |
|
Measuring range(μS/cm) |
0.0~2.0 |
0.2~20.0 |
2~1×104 |
1×104~1×105 |
|
|
|
|
|
Standard configuration:
|
1. Main instrument |
1 |
|
2. Power cable |
1 |
|
3. DJS-1C Platinum-black Electrode |
1 |
|
4. T-818-B-6 Temperature Sensor |
1 |
|
5. REX-I Multi-function Electrode support stand |
1 |
|
6. Data Collecting software |
1 |
|
7. RS-232 Communication Line |
1 |
|
8. TP-16 Print Connection Line |
1 |
Optional accessories:
1. DJS-1 bright electrode
2. DJS-10 Conductivity electrode
3. DJS-0.1 Platinum electrode
4. DJS-0.01 Titanium alloy electrode
Overall dimension & weight:
Shipping package dimension:
332-265-275mm
Gross weight: 3kg Net weight: 2kg |

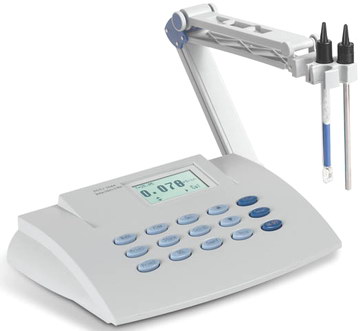

DDSJ-308A Conductivity/TDS/Salinity/Temp Meter
Characteristics:
1. Double digits LCD display with big screen and blue back light,
display conductivity value and temperature value
2. It can be used to measure conductivity, TDS, salinity and
temperature.
3. Automatic temperature compensation, automatic calibration,
automatic range changing and electricity cutting off protection
4. Measurement results can be stored, deleted, consulted and
printed. It can store at most 50 sets of measurement data.
5. With RS-232 interface, Model TP-16 printer can be connected
6. With calibration function, can set electrode constant and TDS
switching coefficient
7. Measuring ultrapure water with using K=0.01cm-1 titanium alloy
electrode and sealing measuring cell
8. Connecting PC with the meter with selecting data soft
Specifications:
1. Measurement range:
Conductivity: 0-1.999´105 uS/cm(be divided into six ranges and can
range changing automatically)
0-1.999 uS/cm 2.00-19.99 uS/cm 20.0-199.9 uS/cm
200-1999 uS/cm 2.00-19.99 mS/cm 20.0-199.9 mS/cm
TDS: 0-19900 mg/L (be divided into five ranges and can range
changing automatically)
0-10.00 mg/L 10.0-100.0 mg/L 100-1000 mg/L
1.00-10.00 g/L 10.0-19.99 g/L
Salinity: 0.0-80 ppt〔(0.0-8.00)%〕
Temperature: -5-105ºC
2. Electrode constant, cm-1:0.01. 0.1, 1.0.10.0
3. Accuracy of the electronic unit: Conductivity: ±0.5%(FS) ±1bit
Salinity: ±1.0ppt
Temperature: ±0.3ºC ±1.bit
4. Stability of the electronic unit: ±0.33%(FS) ±1bit/3h
5. Accuracy: ±0.75%(FS) ±1 bit
6. The range of temperature compensation: 0-50ºC |
|
|
|
|
Standard Configuration
|
Order No |
Product Name and
Specification |
Quantity |
|
1. |
SRSJ-318 conductivity meter |
1 |
|
2. |
Platinum black electrode(K=1) |
1 |
|
3. |
Temperature sensor |
1 |
|
4. |
Multifunctional electrode
holder |
1 |
|
5. |
Power
source(9VDC,800mA,inside-positive and outside-negative) |
1 |
Optional Accessories
|
Order No |
Product Name and
Specification |
Quantity |
|
1. |
Bright electrode(K=1) |
1 |
|
2. |
Conductivity electrode(K=10) |
1 |
|
3. |
Platinum electrode(K=0.1) |
1 |
|
4. |
Titanium alloy electrode(K=0.01) |
1 |
Functions:
1. It can measure conductivity, resistivity. TDS（total dissolved
solids）, salinity and temperature of the current solution.
2. It applies microprocessor-based technology and functions as
automatic temperature compensation, auto-calibration, auto
measuring range switch.
3. The user can calibrate the electrode constant or TDS
conversion coefficient. Also, the instrument supports two-point
calibration.
4. 5.7 inch large touch screen, friendly English language
interface for easy use
5. It follows GLP practice
6. The stored data can be displayed by graphics and can be
viewed, printed and deleted.
7. It allows the user to review current measuring date and the
last calibration data.
8. It contains 3 kinds of measuring modes: Continuous
measurement, timed measurement and balance measurement which can
meet different measuring requirements.
9. It has RS-232 interface and USB. If matched with data
collecting software, it can be communicated with PC. |

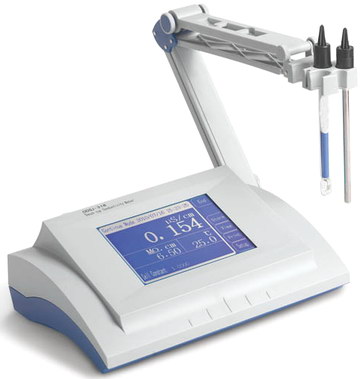

SRSJ-318 Conductivity Meter (touch
screen)
SPECIFICATION:
|
Model
Specifications |
SRSJ-318 |
|
Parameters |
Conductivity/Resistivity/TDS/Salinity/°C |
|
Range
|
Conductivity |
0.055μS/cm~199.9mS/cm
(
full
range measuring, no need to exchange electrode) |
|
Resistivity |
5.00Ω·cm~18.25MΩ·cm |
|
TDS |
0.000 mg/L~100g/L |
|
Salinity |
(0.00~8.00)% |
|
Temperature |
-5.0~135.0°C |
|
Resolution |
Conductivity |
0.001μS/cm |
|
Resistivity |
0.01Ω·cm |
|
TDS |
0.001 mg/L |
|
Salinity |
0.01% |
|
Temperature |
0.1°C |
|
Accuracy |
Conductivity |
±0.5%FS |
|
Resistivity |
±0.5%FS |
|
TDS |
±0.5%FS |
|
Salinity |
±0.1%
|
|
Temperature |
±0.3°C |
|
Temp compensation |
Manual/Auto (-5.0~135.0)
°C |
|
Temp coefficient |
Adjustable |
|
Calibration |
May calibrate electrode constant or TDS switch coefficient.
support two-point
calibration |
|
Measuring mode |
3 (continuous
measurement, timed measurement and balance measuring mode) |
|
Data storage |
1500 data with
time-and-date for GLP compliance (to
display measuring result in diagram directly) |
|
View, delete and print |
Yes |
|
Display |
Touch, big LCD screen |
|
Output |
RS-232,
USB |
|
Software |
1.1DC |
|
Power |
Universal power
adapter (9V DC, 800mA,
inside - positive, outside - negative) |
|
Case outside serial
No. |
WXS-A009-1 |
|
Dimension (mm), Weight(kg) |
250*195*100,
2 |
|
Gross Weight(kg) |
4 |
|
Packing Size (mm)
(Carton
Box) |
370*310*340 |
|
|
|
|
 |

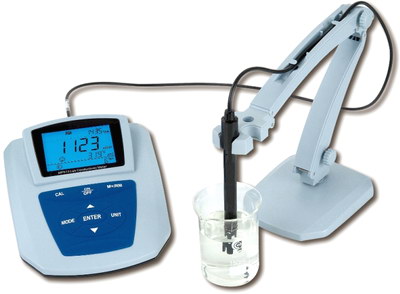

SR513
Lab Conductivity Meter (5 in 1)
Features and
Applications:
-
Be used for conductivity measuring of general water solution
- Plastic
conductivity electrode with ATC, easy to use
- Economical
bench-top conductivity meter
- Nice appearance, easy
to use. It equips a flexible electrode holder, intelligent
stirrer and a brief operation manual.
- Meter meets with the
requirement of international GLP standards. It features up to
automatic calibration, automatic temperature compensation,
storage data, clock display, time measurement, RS232 output,
functions setting and self-diagnose information etc.
- It adopts digital
filter and step slipping technology to improve meter's response
speed and repeatability.
- Meter has the only
product serial number.
Dustproof and waterproof
meter meets IP54 standards.
Measuring
Parameters:
Conductivity, resistivity, TDS, salinity and temperature
Range:
Cond:0
to 200 mS/cm,be
divided into five ranges
(0.00
to 20.00)μS/cm;
(20.0 to 200.0)μS/cm;
(200
to 2000)μS/cm;
(2.00 to 20.00)mS/cm;
(20.0
to 200.0)mS/cm
Res:
(0 to 100)MΩ·cm;
TDS: (0
to 100)g/L
Sal:
(0 to 100)ppt Temp:
(-10
to 110)ºC
Accuracy:
Cond:
±1.0% full scale
Temp:
±0.5ºC
Other Parameters:
ATC:
(0
to 50)ºC
Storage
Data:
100 groups;
Communication
Connector:
RS-232;
Power:
DC9V/300mA;
Size & Weight:
(160×190×70)mm/880g
Accessories:
1.
2301-M plastic
conductivity electrode
(K=1,ATC)
2.
Model 602 flexible
electrode holder
3.
RS-232 communication
software |
 |

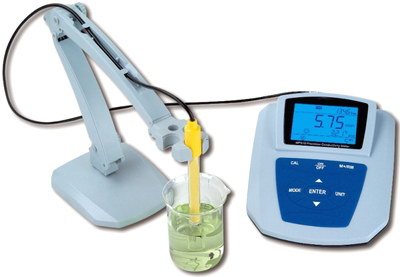

Model: SR515
Precision Conductivity Meter
Measuring
Parameters:
Conductivity, Resistivity, TDS, salinity and temperature
Features and
Applications
-
High precision bench-top conductivity meter
- “CH” and “USA” two
series of standard solution can be setup, automatically recognizes
eight kinds of conductivity
- Calibration
solution.
- 18
ºC,
20 and 25 three kinds
of reference ºC
temperature can be setup.
- Inside setup with
function of high purified water non-linearity automatic temperature
compensation, suitable for accurate conductivity measurement for
high purified water.
Specifications:
Range:
Cond:
0 to 2000 mS/cm,be
divided into five ranges
(0.00
to 20.00)μS/cm;
(20.0 to 200.0)μS/cm;
(200
to 2000)μS/cm;
(2.00 to 20.00)mS/cm;
(20.0
to 200.0)mS/cm;
(200 to 2000)mS/cm
(k=10)
Res:
(0 to 100)MΩ·cm;
TDS:
(0 to 100)g/L
Sal:
(0 to 100)ppt
Temp: (-10
to 110)
ºC
Accuracy:
Cond:
±0.5% full scale
Temp:
±0.4
ºC
Other Parameters:
ATC:
(0
to 50) ºC
Storage
Data:
600 groups;
Communication
Connector:
RS-232;
Power:
DC9V/300mA;
Size & Weight:
(160×190×70)mm/880g
What's included:
1.
2401-M conductivity electrode
(K=1,ATC)
2.
Model 602 flexible electrode holder
3.
RS-232 communication software
|
