Digital Capacitance Meter



SRT601 Modern Inductance Capacitance Meters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

Resistance

20次/200次/2k次/20k次/200k次/

2M次/20M次/200M次/2000M次

㊣(0.8%+1)

Capacitance

200pF/2nF/20nF/200nF/2µF/20µF/

200µF/2mF/20mF

㊣(0.5%+10)

Special Functions





Diode



Yes

Continuity Buzzer



Yes

Transistor



Yes

Low Battery Display



Yes

Max. Display

1999

Yes

GENERAL CHARACTERISTICS

Power

9V Battery (6F22)

LCD Size

61 x 32 mm

Product Colour

Grey Holster-Red

Product Net Weight

310g

Product Size

172 x 83 x 38mm

Standard Accessories

Test Clip, Battery, English Manual, Holster

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

40 pcs

Standard Carton Measurement

598 x 418 x 340mm (0.085CBM Per Standard Carton)

Standard Carton Gross Weight

21kg

﹛

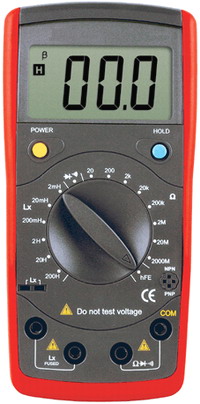

SRT602 Modern Inductance Capacitance Meters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

Resistance

20次/200次/2k次/20k次/200k次/

2M次/20M次/200M次/2000M次

㊣(0.8%+1)

Capacitance

200pF/2nF/20nF/200nF/2µF/20µF/

200µF/2mF/20mF

㊣(0.5%+10)

Special Functions





Diode



Yes

Continuity Buzzer



Yes

Transistor



Yes
Data Hold ﹛ Yes

Low Battery Display



Yes

Max. Display

1999

Yes

GENERAL CHARACTERISTICS

Power

9V Battery (6F22)

LCD Size

61 x 32 mm

Product Colour

Grey Holster-Red

Product Net Weight

310g

Product Size

172 x 83 x 38mm

Standard Accessories

Test Clip, Battery, English Manual, Holster

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

40 pcs

Standard Carton Measurement

598 x 418 x 340mm (0.085CBM Per Standard Carton)

Standard Carton Gross Weight

21kg

﹛

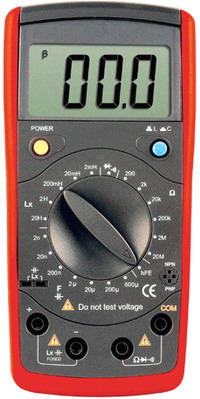

SRT603 Modern Inductance Capacitance Meters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

Resistance

200次/2k次/20k次/200k次/2M次/20M次

㊣(0.8%+1)

Capacitance

2nF/20nF/200nF/2mF/20mF/200mF/600mF

㊣(1%+5)

Inductance

2mH/20mH/200mH/2H/20H

㊣(2%+8)

Special Functions





Diode



Yes

Continuity Buzzer



Yes

Transistor



Yes

Low Battery Display



Yes

Max. Display

1999



GENERAL CHARACTERISTICS

Power

9V Battery (6F22)

LCD Size

61 x 32 mm

Product Colour

Grey Holster-Red

Product Net Weight

310g

Product Size

172 x 83 x 38mm

Standard Accessories

Test Clip, Battery, English Manual, Holster

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

40 pcs

Standard Carton Measurement

598 x 418 x 340mm (0.085CBM Per Standard Carton)

Standard Carton Gross Weight

21kg

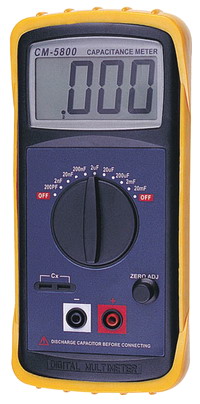

CM5800(CM6013)  3 1/2 DIGITAL CAPACITANCE METER﹛

 Capacitance  200pF/2nF/20nF/200nF/2µ/
 20µF/200µF/2000µF/20000µF
 Best Accuracy  ㊣(0.5%+1)
 Frequency  800Hz, 80Hz, 8Hz
 Power  9V Battery, 6F22
 Maximum Display  1999
 Display Size  27℅44mm
 Product Net Weight  270g
 Product Size   190℅88℅34mm
 Standard Accessories  Alligator Clip, Battery,  Instruction Manual
﹛

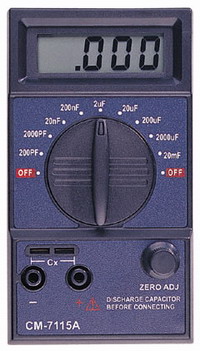

CM7115A  3 1/2 CAPACITANCE METER

 Display  3 1/2 digits LCD with a  Max. Reading of 1999
 Polarity  Automatic, Positive implied, negative Polarity indication
 Over Range  (1) or (-1) is displayed
 Measurement Rate  2 times per sec. nominal
 Operating Environment  0∼C to 50∼C at <70%  relative  humidity
 Accuracy  Stated accuracy at 23㊣5∼C <75% relative humidity

 Ranges

 200pF  ㊣(0.5%+1dgt+0.5pF)
 2000p/20n/200n/2µ/200µF
 ㊣(0.5%+1dgt)
 2000µF  ㊣(2%+1dgt)
 20mF     ㊣(4%+1dgt)
 Dimensions   150℅70℅38mm
 Weight  Approx. 200g including battery

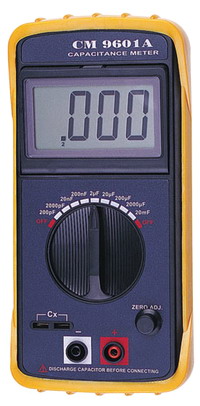

CM9601A 3 1/2 DIGITAL CAPACITANCE METER﹛

 Capacitance  200pF/2nF/20nF/200nF/2µ/
 20µF/200µF/2000µF/20000µF
 Best Accuracy  ㊣(0.5%+1)
 Frequency  800Hz, 80Hz, 8Hz
 Power  9V Battery, 6F22
 Maximum Display  1999
 Display Size  18℅44mm
 Product Net Weight  340g
 Product Size   191℅89℅35mm
 Weight  310g including batteries
 Standard Accessories  Battery,  Instruction Manual, Alligator Clip

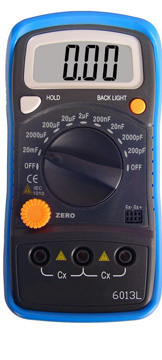

XHST6013L DIGITAL CAPACITANCE METER﹛

 XHST6013L 3 1/2 DIGITAL MULTIMETER

. Function
•Being accurate in measuring, it covers 9 measuring sections, a wide rang from 0.1pF to 20,000uF. It can be used in testing error testing, numerical analysis, selecting capacitance, measuring unknown capacitance, matching capacitance, and measuring the capacitance of cable, switch and printing electrocircuit.
• LCD Display : 3 1/2 digits, character 16mm high
• Back Light Button Switch
• Power Supply : 9V battery, 6F22 or NEDA 1604
• Data-hold Switch (HOLD)
• Safety:According to EN61010-1 protection class ｊ overvoltage category(CAT ｋ 600V) pollution degreen 2
•Certificate: CE Approva

2. Packing
• Each item in one color box
• Dimension:  143x75x32mm(with holster)
• Ctn size:       478℅318℅315mm
• Q＊TY / Ctn:      60pcs
• Gw/Nw:         17/16KG
• Minimum Q'ty: 100pcs

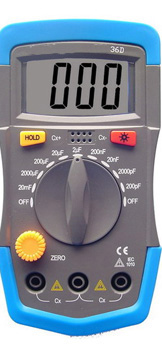

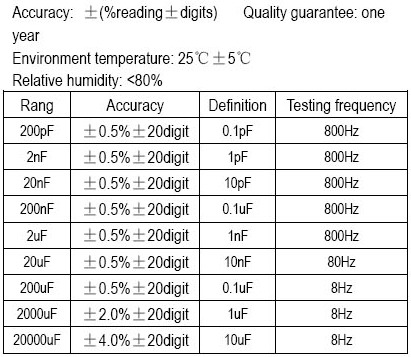

XHST36D DIGITAL CAPACITANCE METER﹛

 XHST36D 3 1/2 DIGITAL MULTIMETER

1. Function
•Being accurate in measuring, it covers 9 measuring sections, a wide rang from 0.1pF to 20,000uF. It can be used in testing error testing, numerical analysis, selecting capacitance, measuring unknown capacitance, matching capacitance, and measuring the capacitance of cable, switch and printing electrocircuit.
• LCD Display : 3 1/2 digits, character 16mm high
• Back Light Button Switch
• Power Supply : 9V battery, 6F22 or NEDA 1604
• Data-hold Switch (HOLD)
• Safety:According to EN61010-1 protection class ｊ overvoltage category(CAT ｋ 600V) pollution degreen 2
•Certificate: CE Approva

2. Packing
• Each item in one color box
• Dimension:  143x75x32mm(with holster)
• Ctn size:       478℅318℅315mm
• Q＊TY / Ctn:      60pcs
• Gw/Nw:         17/16KG
• Minimum Q'ty: 100pcs

 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
