Anemometer

¡¡

(Air Flow Anemometer, Air Flow Meter, Airflow Meter, Thermo-Anemometer, Thermal Anemometer, Wind Gauge, Wind-speed Meter, Wind Flow Meter, Handheld Anemomter, Air Velocity Meter)

¡¡

APPLICATION: Installation, debug and repair for refrigeration industry, ventilation duct, environment monitor, navigation measurement, weather forecast, collection of the weather datum for outdoor busywork and fire department.

¡¡

The most HOT SALE!!!

¡¡

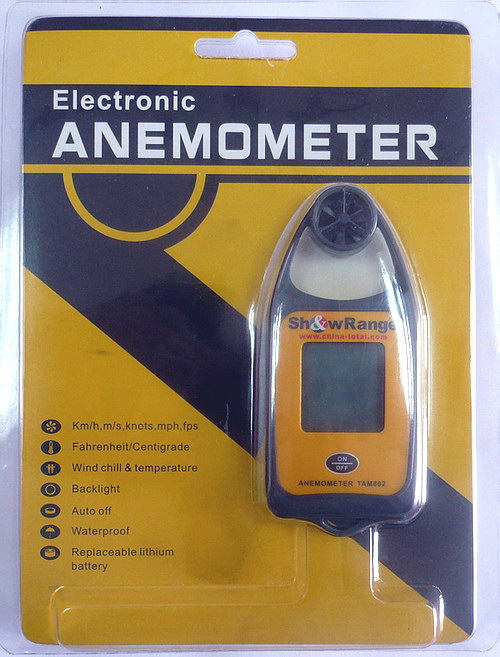

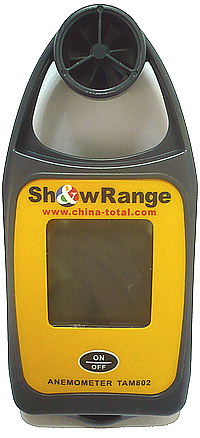

Mini Anemometer TAM801,TAM802

l       Low power design, 3 year battery life

l       Display max. values

l       Windchill calculation for outside areas (perceived temperature) (Only TAM802)

l       Display illumination

l       Auto power OFF

Technical data

Sensor: Plastic impeller, magnetic induction, NTC temperature sensor

Parameters: m/s, km/h, knots, fps, mph.,

Measuring Range: Air speed: 0.6~ 20m/s

                           Temperature: -10 ~ 50 oC/-14 ~ 122 oF

Resolution: 0.1m/s,0.1oC or 0.1oF

Accuracies: +/-(3% reading +0.4m/s)

                 +/-1oF

Measuring rate: 0.5s

Ambient conditions : -20 ~ 70 oC,-4 ~ 158oF

Storage/transport condition: -20 ~ 80 oC/ -22 ~ 176oF

Power supply: 1x 3.0V,CR2032 batteries

Batteries life: 3 year (With back light off)

Size: 48.5*102*16.5 mm
Weight: 55g (batteries included)

Packing: 160PCS/CTN, CTN SIZE: 56*36*48CM, G.W: 16KGS, VOLUME WEIGHT: 20KGS

¡¡ ¡¡

The more HOT SALE!!!

¡¡

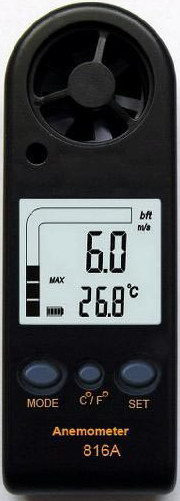

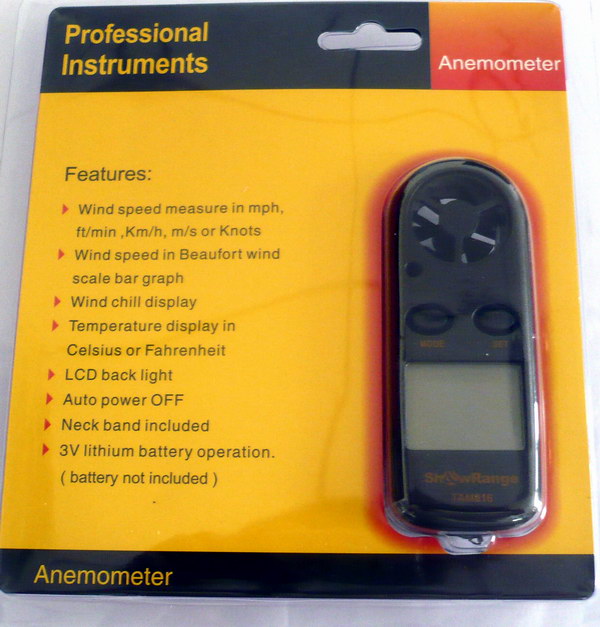

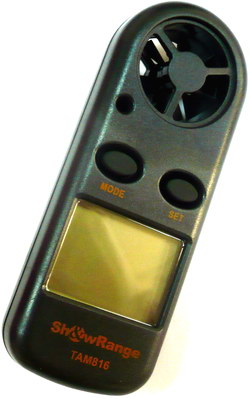

Mini Anemometer TAM816

SPECIFICATIONS



 Wind Speed Measuring Range

0.3~30m/s

 Accuracy of Temperature ¡À5%¡À0.1dgt
 Air Velocity Unit m/s,Ft/min,Knots,km/h,Mph
 Average wind speed measuring Yes
Max/Min wind speed measurin Yes
Temperature Measuring Range 0~45oC
Accuracy of Temperature ¡À2oC
 oC/oF Selection Yes
Backlight Display Yes
 Low Battery Indication Yes
Analog Quantity Display
Yes
Resolution 0.1m/s
USB Transmission ---
 Data Store ---
 PACKING INFORMATION
Power CR2032 3.0V
Product Net Weight 52g
Product Size  105*40*15mm
Packing Blister
 Standard Quantity Per Carton  80pcs
 Standard Carton Size  38*38*44cm
Standard Carton Gross Weight  9.5kg
¡¡ ¡¡

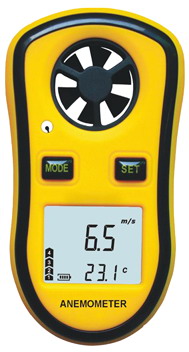

Anemometer TAM817

*Measurement items: Air velocity, Air temperature
*Measurement range:
----Air velocity: 0~30m/s, 0~90km/h, 0~5860ft/min, 0~55knots, 0~65mph (¡À 5%)
----Air temperature: -10~45º C, 14~113º F (¡À 2º C)
*Resolution: 0.2º C, 0.2m/s
*Display: LCD
*Sensor:
----Air velocity sensor: Plastic impeller, magnetic induction
----Temperature sensor: NTC thermometer
*Low battery indication: Yes
*Auto power shut off: 14 minutes without any operation
*Backlight: 12 seconds active by press any key
*MAX/MIN/AVG reading

*Packing: Blister+Card
*Power: CR2032 3.0V
*Dimension: 104.3x57.8x19.9mm
*Net weight: 58.9g (including battery)

¡¡ ¡¡

Anemometer TAM818

*Measuring Items: Air Velocity & Air Temperature
*Measuring range:
----Air Velocity: 0~45 m/s, 0~140 km/hr, 0~8800 Ft/min, 0~88Knots, 0~100 mph (Accuracy: ¡À 3%)
----Air Temperature: 0~45ºC, 32~113ºF (Accuracy¡À 2ºC)
*Resolution: 0.2ºC, 0.1m/s
*Unit of Velocity: m/s, Ft/min, Knots, Km/hr, Mph
*ºC/ºF Selection
*Backlight display
*Max/Min reading (Air velocity)
*Average/Current reading (Air velocity)
*Data hold
*Low battery indication
*Manual/Auto power shut off (in 14minutes without any operation£©

*Packing method: PP box + Gift box
*Power supply: 9V battery *1pcs
*Dimension:
----Main unit: 145*72*35mm
----Vane: 172*65*29mm
*Weight: 275g (Including battery)

¡¡

¡¡ ¡¡

Digital Anemometer SR5880

Features

16" inch Gooseneck detector is easy to measure the hard-to-reach areas

High sensitive and accurate

Easy-to use design

Double LCD digital display

Low power consumption

Date hold and max hold function

Low battery indication

Specifications:

m/s(meter per second)                 0.60-30.00        0.01       +3%+0.20m/s

ft/min(feet per minute)                  119-5900           1           +3%+40ft/min

km/h(kilometers per hour)             2.2-108.0         0.1          +3%+0.8km/h

MPH(miles per hour)                    1.4-67.0           0.1          +3%+0.40MPH

Knots (nautical miles per hout)      1.2-58.0           0.1         +3%+0.4knots

Air Temperature                 14-140F(-10-60C)       0.1F/C     +4.0F(2.0C)

Air Flow                      Range               Resolution        Area

CFM                         0-999900                 0.1           -999.9ft2

SIZE(HxWxD):  163mmX45mmX34mm

Wiehgt:210g

Accessories:

9V battery,.blister packing

¡¡ ¡¡

Mini Anemometer SR5881

Features
Easy to measure the hard-to-reach areas
High sensitive and accUrate
Easy-to use design
Low power consumption
Date hold and max hold function
Low battery indication
Specifications:
m/s(meter per second)           0.60-30.00           0.01            +3%+0.20m/s
ft/min(feet per minute)            119-5900               1               +3%+40ft/min
km/h(kilometers per hour)        2.2-108.0            0.1             +3%+0.8km/h
MPH(miles per hour)               1.4-67.0              0.1             +3%+0.40MPH
Knots (nautical miles per hout) 1.2-58.0              0.1            +3%+0.4knots
Air Temperature 1            4-140F(-10-60C)        0.1F/C          +4.0F(2.0C)
Air Flow     Range    Resolution    Area
CFM        0-999900     0.1         -999.9ft2
Accessories:
9V battery, blister packing

¡¡ ¡¡

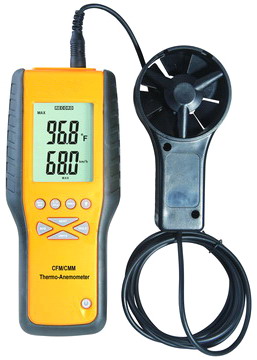

CFM/CMM thermo-Anemometer SR5819

Features

CFM/CMM Thermo- Anemometer +Infrared Thermometer

Max/Min/Avg value with relative time stamp

Low battery indication and Auto Power Off

Display Air Flow (CFM/CMM), or Air Velocity plus Temperature simultaneously

Specifications

Air Velocity

Range

Accuracy

m/s (meter per second)

0.40~30.00

¡À3%¡À0.20m/s

ft/min(feet per minute)

80~5900

¡À3%¡À40ft/min

km/h(kilometers per hour)

1.4~108.0

¡À3%¡À0.8km/h

MPH(miles per hour)

0.9~67.0

¡À3%¡À0.4MPH

Knots(nautical miles per hour)

0.8~58.0

¡À3%¡À0.4knots

Air Temperature

14-140¡ãF(-10-60¡ãC)

¡À4.0¡ãF(2.0¡ãC)

Air Flow

Range

Area

CFM

0-999900

0-999.9ft2

CMM

0-999900

0-999.9m2

Packing:

12PCS/CTN,VOLUME: 0.063CBM, N.W./G.W. 3.9KGS/11.22KGS, VOLUMW WEIGHT: 12.6KGS

¡¡ ¡¡

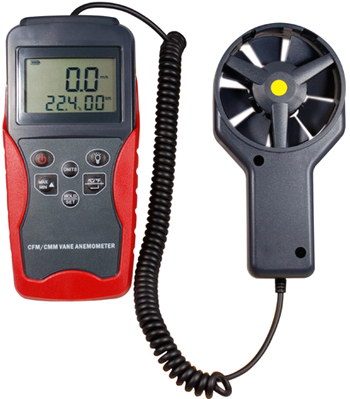

Anemometer TAM821,TAM831,TAM841

TAM821: Flow velocity measuring instrument.

TAM831: Flow velocity measuring instrument with temperature measurement and chill temperature.

TAM841: measure flow speed, volume flow, temperature and chill temperature.

l       Max values

l       Hold button to freeze readings

l       Display light

l       Auto Off function

l       Built-in Ø 65 mm vane

Technical data

Parameters: Knots,mph,km/h,m/s,ft/min,Bft

Measuring Range

Air speed: 0.4~ 30m/s

Temperature: 0 ~ 50 oC/32 ~ 122oF

Volume flow: CFM: 0 ~ 999,990 ft3/min

                    CMM: 0 ~ 999,990 m3/min

Accuracies: +/-(3% reading +0.1m/s)

                 +/-1oC

Resolution: 0.1m/s,0.1oC or 0.1oF

Ambient conditions : 0 ~ 50 oC/32 ~ 122oF

Storage/transport condition: -10 ~ 60 oC,14 ~ 140oF

Power supply: 1x 9.0V,6F22 batteries

Size: 160*74*35 mm

Weight: 340g (batteries included)

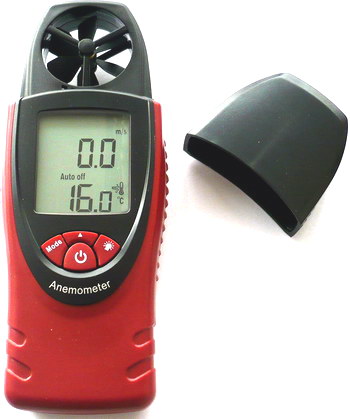

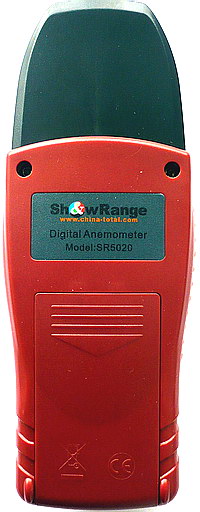

SR5020 Temperature/Vane anemometer

Feature:

Special function: Auto power off; Data hold; MAX, MIN and AVG; Backlit
Measure: M/s, km/h, fpm, mph, kts, Beaufort scale, ¡ãC,
ºF, wind chill.
Resolution: 0.1 m/s, 1 fpm, 0.1¡ãC, 0.1
ºF
Range: 0.4~20 m/s, 80~4000 fpm
Sample Rate: 0.5sec
Auto power off: About 10 minutes idle
Battery life: Continuous work 360 Hours (without backlit )
Operating temperature: -10~50¡ãC, 14~122
ºF
Dimension: 145 x 52 x 25mm
Accessories included:
Free 1.5V ( LR03 battery) x 3
Color Box
User's Manual

Packing: 70PCS/CTN, CTN SIZE: 53x33x37CM, G.W: 18.5KGS

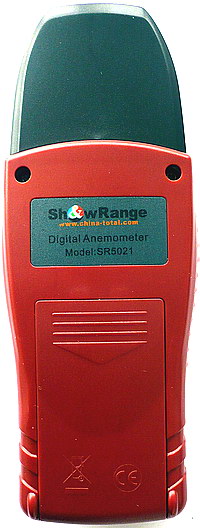

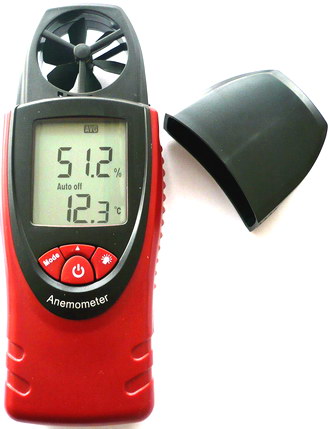

SR5021 Temperature/Humidity/Vane anemometer

Feature:

Measure: M/s, km/h, fpm, mph, kts, Beaufort, %RH, td(dew point temperature), ¡ãC, ºF
Resolution: 0.1 m/s, 1 fpm, 0.1%RH, 0.1¡ãC, 0.1
ºF
Range: 0.4~20 m/s, 80~4000 fpm, 0~100%RH, -10~50¡ãC, 14~122
ºF
Accuracy: +/- (2% of reading + 0.3m/s)
+/- 3%RH (5~95%RH)
+/- 1¡ãC, +/-1.8
ºF
Sample Rate: 0.5sec
Auto power off: About 10 minutes idle
Battery life: Continuous work 360 Hours (without backlit )
Special function: Auto power off; Data hold; MAX, MIN and AVG; Backlit; Overload display; Low battery indicator
Operating temperature: -10~50¡ãC, 14~122
ºF
Dimension: 145 x 52 x 25mm

Accessories included:
Free 1.5V( LR03 battery) x 3
Color Box
User's Manual

Packing: 70PCS/CTN, CTN SIZE: 53x33x37CM, G.W: 18.5KGS

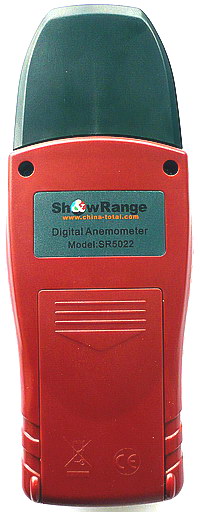

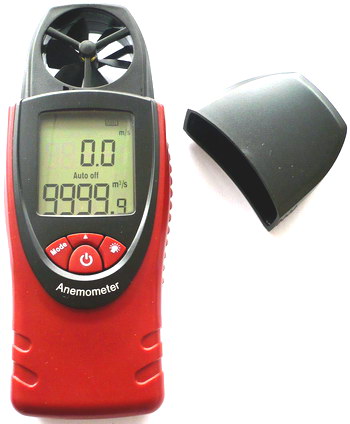

SR5022 Temperature/Air volume/Vane anemometer
Feature:
Measure: M/s, km/h, fpm, mph, kts, Beaufort,¡ãC,
ºF, m^3/s, CFM
Resolution: 0.1 m/s, 1 fpm, 0.1¡ãC, 0.1
ºF, 1m^3/s
Range: 0.4~20m/s, 0~99999m^3/s, -10~50¡ãC, 14~122
ºF
Accuracy: +/- (2% of reading + 0.3m/s)
+/- 1¡ãC, +/- 1.8
ºF
+/- (3% of reading)m^3/s
Sample Rate: 0.5sec
Auto power off: About 10 minutes idle
Battery life: Continuous work 360 Hours (without backlit )
Special function: Auto power off; Data hold; MAX, MIN and AVG; Backlit; Overload display; Low battery indicator.
Operating temperature: -10~50¡ãC, 14~122
ºF
Battery life: Continuous work 200 Hours (without backlit )
Dimension: 145 x 52 x 25mm
Accessories included:
Free 1.5V( LR03 battery) x 3
Color Box
User's Manual

Packing: 70PCS/CTN, CTN SIZE: 53x33x37CM, G.W: 18.5KGS

¡¡ ¡¡

¡¡

AM series Anemometer

¡¡

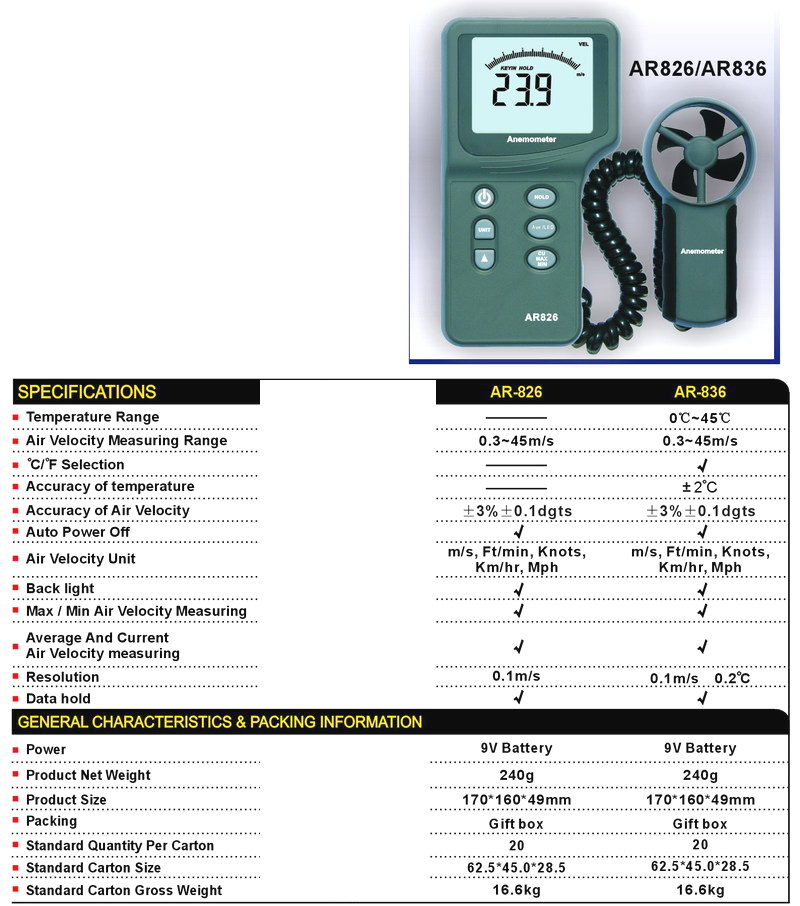

AR series Anemometer

¡¡

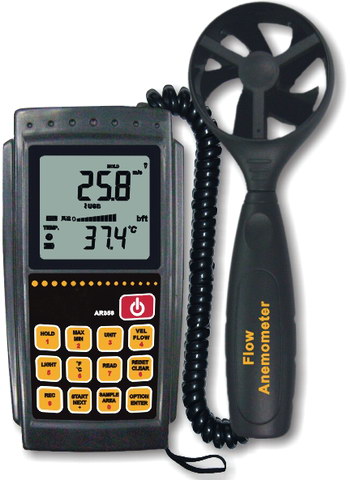

Name: AIR FLOW ANEMOMETER AR856 (NEW)

¡¡

Model: AR856

GENERAL FEATURES & SPECIFICATIONS
-Measuring Range: 0ºC~45ºC
-Wind Speed Measuring Range: 0.3~45m/s
-Wind volume Range: 0~9999m3/s
-Accuracy of Wind speed: ¡À3%¡À1dgts
-Wind Speed Unit Selection: M/s, Ft/min, Knots, Km/hr, Mph
-Resolution: 0.1m/s 0.2ºC
-Air Velocity/Air Flow Selection: Yes
-ºC/ºF Selection: Yes
-Auto /Manual Power Off: Yes
-Back Light Display: Yes
-Max/Min wind speed measuring: Yes
-Average And current wind speed: Yes
-Data hold function: Yes
-USB Transmission: Yes
-Air Flow Measuring Function: Yes
¡¡

PACKING INFORMATION
Power 1.5V*4 Battery
Product Net Weight: 240g
Product Size: 170*160*49mm
Packing Gift box + PP box

¡¡ ¡¡

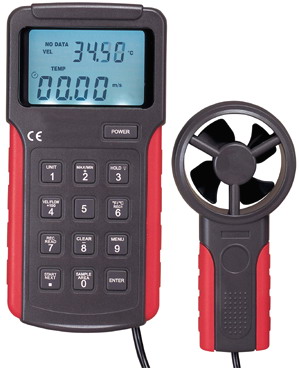

Anemoscopes SR5361

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

Wind Speed Measurement

2-10m/s
10-30m/s

(3%+5)
(3%+8)

Wind Count Measurement (CMM)

0.001~9999x10

Wind Count Measurement (CFM)

0.001~9999x10

Temperature Measurement

The Temperature of Mainframe

0~40¡ãC
(32¡ãF~104¡ãF)

3¡ãC
(4¡ãF)

Temperature Measurement

The Temperature of Mainframe

0~40¡ãC
(32¡ãF~104¡ãF)

3¡ãC
(4¡ãF)

Special Functions





Data Hold

VEL/FLOW

Wind Speed/Wind Count Display



Max / Min



Sleep Mode

Around 10 Minutes

Units Switch



Auto Record Time Setup



Low Battery Display



Display Backlight



GENERAL CHARACTERISTICS

Power

9V Alkaline Battery

LCD Size

57 x 37mm

Product Colour

Red and Grey

Product Net Weight

375g

Product Size

162 x 78 x 30mm

Standard Accessories

English Manual, Carrying Bag

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

40pcs

Standard Carton Measurement

530 x 420 x 365mm (0.081 CBM Per Standard Carton)

Standard Carton Gross Weight

21kg

¡¡ ¡¡

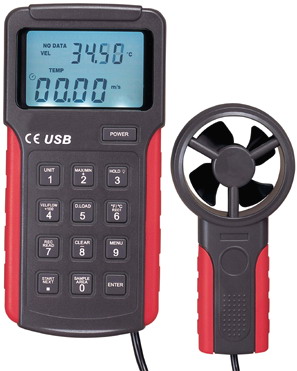

Anemoscopes SR5362

USB Interface Cable, Software

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

Wind Speed Measurement

2-10m/s
10-30m/s

(3%+5)
(3%+8)

Wind Count Measurement (CMM)

0.001~9999x10

Wind Count Measurement (CFM)

0.001~9999x10

Temperature Measurement

The Temperature of Mainframe

0~40¡ãC
(32¡ãF~104¡ãF)

3¡ãC
(4¡ãF)

Temperature Measurement

The Temperature of Mainframe

0~40¡ãC
(32¡ãF~104¡ãF)

3¡ãC
(4¡ãF)

Special Functions





Data Hold

VEL/FLOW

Wind Speed/Wind Count Display



Max / Min



Sleep Mode

Around 10 Minutes

Units Switch



Auto Record Time Setup



Low Battery Display



Display Backlight



USB



GENERAL CHARACTERISTICS

Power

9V Alkaline Battery

LCD Size

57 x 37mm

Product Colour

Red and Grey

Product Net Weight

375g

Product Size

162 x 78 x 30mm

Standard Accessories

English Manual, Carrying Bag, USB Interface Cable, Software

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

40pcs

Standard Carton Measurement

530 x 420 x 365mm (0.081 CBM Per Standard Carton)

Standard Carton Gross Weight

21kg

¡¡ ¡¡

Model: AR816A

Function:

  1)Wind speed & temperature measurement

  2)Wind chill indication.

  3)ºC/ºF unit select

  4) Different wind speed measurement unit

  5)Measure wind speed in: Current / Average / Max

  6) Low battery warning

  7) LCD back-light

  8) Auto/Manual off

Specification

¡¡ ¡¡ ¡¡
¡¡

Wind speed range

¡¡ ¡¡

Unit

Range

Resolution

Threshold

M/s

0~30

0.1

0.1

Ft/min

0~5860

19

39

Knots

0~55

0.2

0.1

Km/hr

0~90

0.3

0.3

Mph

0~65

0.2

0.2

¡¡ ¡¡ ¡¡ ¡¡
¡¡

Temperature range

¡¡ ¡¡

Unit

Range

Resolution

Accuracy

ºC

-10ºC~45ºC

0.2

¡À2ºC

ºF

14ºF~113ºF

0.36

¡À3.6ºF

Packing:

Weight : 53g(with battery)

Unit Size :11.4 X 4 X 1.8CM

Power : CR2032 3.0V*1

100 pcs / ctn

Ctn size: 43x64x35cm

Gw/Nw: 10 / 9 Kgs

¡¡ ¡¡

A4201/A4201T DIGITAL ANEMOMETER

Main features:

High quality, low price.
Portable instrument, using and carrying are convenient and flexible, it is hand-held used, but also fixed.
Display with a lot of unit, wide application field : meter/second , kilometer/hour, knots(knots/hour),
ºC/ºF.
The anemometer can provide measurement more freely and more convenient with separated sensor.
The design of the lengthened sensor make operator can't be hurt in high temperature measurement.
Measurement values and unit are displayed at the same time; Large LCD display for clear and accurate read out.
Used new components can make power consumption more decreased, service life of the battery is long.
Accuracy and high speed bearing result in high sensitivity, wide measuring range, free running.
Data hold, low battery indication.

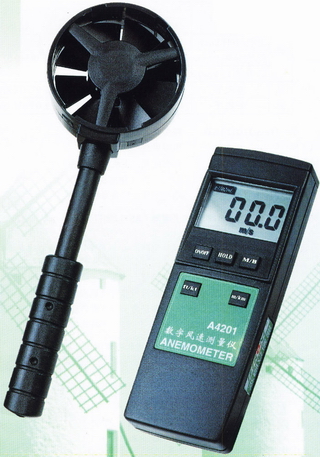

A4201 DIGITAL ANEMOMETER

Function

Measuring range

Resolution

Accuracy

Air speed

m/s

0.4~ 30.0m/s

0.1m/s

¡À(0.5+0.02*readings)

30.0~ 40.0m/s



Reference value



km/h

1.4 ~ 108.0km/h

0.1km/h

¡À(0.5+0.02*readings)



ft/min

80 ~ 5910ft/min

10ft/min



knots

0.8 ~58.3konts

0.1knots

¡¡

A4201T DIGITAL ANEMOMETER

Function

Measuring range

Resolution

Accuracy

Air speed

m/s

0.4~ 30.0m/s

0.1m/s

¡À(0.5+0.02*readings)

30.0~ 40.0m/s



Reference value



km/h

1.4 ~ 108.0km/h

0.1km/h

¡À(0.5+0.02*readings)



ft/min

80 ~ 5910ft/min

10ft/min



knots

0.8 ~58.3konts

0.1knots

Air temperature

ºC 0ºC~60ºC 0.1ºC 1.0ºC

ºF

32ºF ~ 140ºF

0.1ºF

2.0ºF(only to A4201T)

¡¡ ¡¡

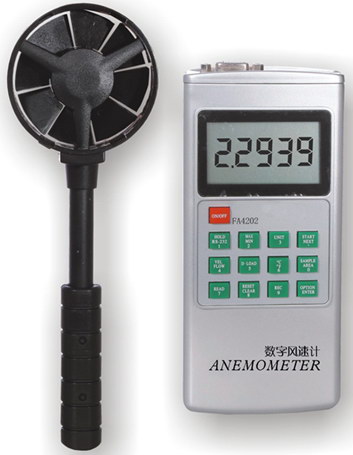

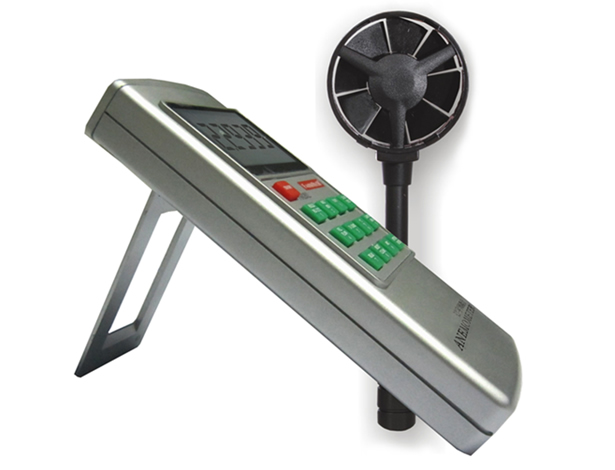

A4202/A4202T/A4202R DIGITAL ANEMOMETER

Functions and Features:
Speed: m/s, ft/ min, Knots ,km/ hr, mph;
Air Flow (CFM, CMM): Measurements include instant value, average value and 2/3 maximum value;

LCD large screen, backlight display function;

MAX value, MIN value, data retention, 2,000 data record;
Clear interface, easy operation and convenient use;

FA4202 measuring wind speed and air flow
FA4202T measuring wind speed, air flow and blast temperature
FA4202R measuring wind speed, air flow and blast temperature, interfaces and software with RS-232.

General
Features:

Battery: 9V prismatic and laminated battery
Display: 2*4 bits double display LCD
Axletree
: precise and high-speed ball bearing and man-made gem;
Temperature sensor: thermistor and thermocouple
(FA4202T)

Operating temperature: 0ºC~80ºC(instrument); 0ºC~60ºC(fan)
Environmental humidity
: less than 80% RH
Storage temperature
: -40ºC~60ºC

Current consumption: about 3mA.
Instrument Size
: 76.0*168.0*26.2 mm
Fan Size
: ¦µ71.0*218.0(handle length) mm;
Standard accessories
: Portable bag, Manual, 9V battery, software (FA4202R)

¡¡

Measuring Mode

unit

range

rosolution

accuracy

Models

Air speed

m/s

0.3~40.0

0.01

3%+0.1dgt

FA4202

FA4202T

FA4202R

30.0-40.0

¡¡

ft/min

60~7800

0.01/1

3%+10dgt

knots

0.6~79.0

0.01

3%+0.1dgt

km/h

1.0~140.0

0.01

mph

0.7~89.0

0.01

Air temp.

0C

0.0~60.0

0.2

1 0C+0.2dgt

FA4202T

0F

32.0-140.0

0.36

1.8 0F+0.5dgt

Air flow

m3/h

0.3~9999 *100

0.01

3%+0.1dgt

FA4202; FA4202T

FA4202R

¡¡ ¡¡

¡¡

Special Noting:

Our own ShowRange branded ones: TAM801, TAM802, TAM816, TAM821, TAM831, TAM841, SR5020, SR5021, SR5020, SR5361, SR5362

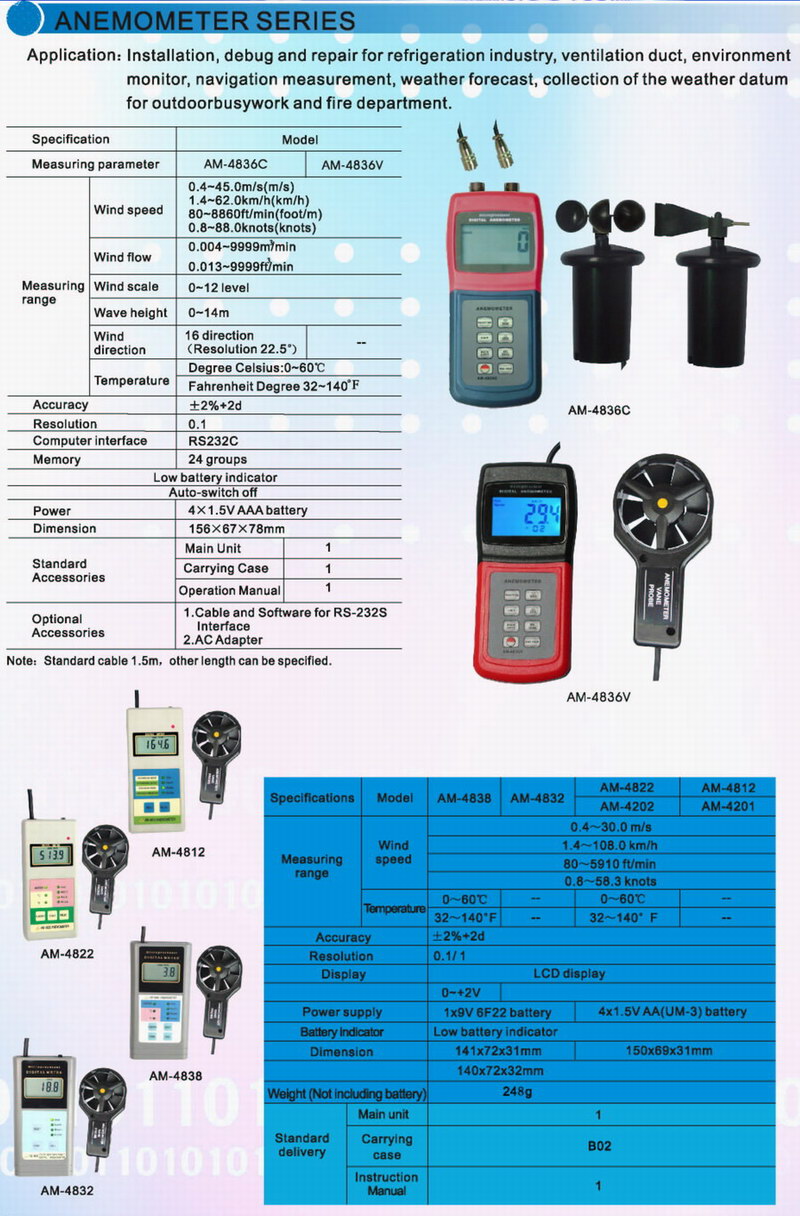

AM4836V, AM4836C, AR846, AR856, AR856A, FA4202, FA4202T, FR4202R is with air/wind flow/volume measure function.

AM4836C is with wind direction measure function.

AR856A is with wind infrared thermometer measure function.

AM4836V, AM4836C is with computer interface function, but RS232(USB)+SOFTWARE is optional part.

AR846, AR856, AR856A, SR5362 is with computer interface function, USB+SOFTWARE is within standard delivery.

FR4202R is with computer interface function, RS232+SOFTWARE is within standard delivery.

 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
