SC AC Contactors

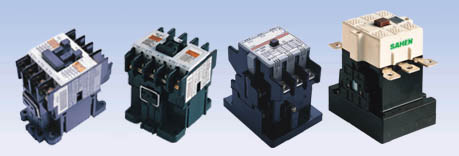

SC-03 SC-5-1 SC-2SN SC-6N
 SC AC contactor is suitable for using in the circuits voltage up to 660V 50Hz or 60Hz, rated current up to 150A, for making & breaking, and for frequent starting & controlling the motor.
The product has the features of small volume, light weight, low power consumption, high efficiency, safe reliable etc. It also can be combined with contact head group, air time delay block, relay,  thermal relay accessories, into motor starter etc, multi series products. It conforms with IEC158 & IEC337.

Specification
กก
TYPE SC-03 SC-0 SC-05 SC-4-0 SC-4-1 sc-5-1 SC-1N SC-2N SC-2SN SC-3N SC-4N SC-5N SC-6N
Max.volume of motor 200-240V 2.5 3.5 3.5 4.5 5.5 5.5 7.5 11 15 18.5 22 30 37
380-440V 4 5.5 5.5 7.5 11 11 15 18 22 30 40 55 60
500-550V 4 5.5 5.5 7.5 11 11 15 18 25 37 37 55 60
600-660V 4 5.5 5.5 7.5 7.5 7.5 11 15 22 30 37 55 60
Operating current
AC3(A)		 200-240V 11 13 13 18 22 22 27 39 52 65 80 105 120
380-440V 9 12 12 16 22 22 30 37 48 65 80 105 120
500-550V 7 9 9 13 17 17 24 29 38 60 60 85 90
600-660V 5 7 7 9 9 9 15 19 26 38 44 64 72
Rated heating current(A) 20 20 20 25 32 32 50 60 80 100 135 150 150
Aux-contact layout Standard 1NO 1NO 1NC
1NO		 1NO 1NO 1NO
1NC		 2NO
2NC		 2NO
2NC		 2NO
2NC		 2NO
2NC		 2NO
2NC		 2NO
2NC		 2NO
2NC
Other 1NC 1NC 2NC
orNC		 1NC 1NC 2NO
or 2NC		 4NO
4NC		 4NO
4NC		 4NO
4NC		 4NO
4NC		 4NO
4NC		 4NO
4NC		 4NO
4NC
Life of probability
(x10)		 Electrical 200 200 200 150 200 200 200 200 200 200 100 100 100
Mechanical 1000 1000 1000 1000 1000 1000 1000 1000 500 500 500 500 500
