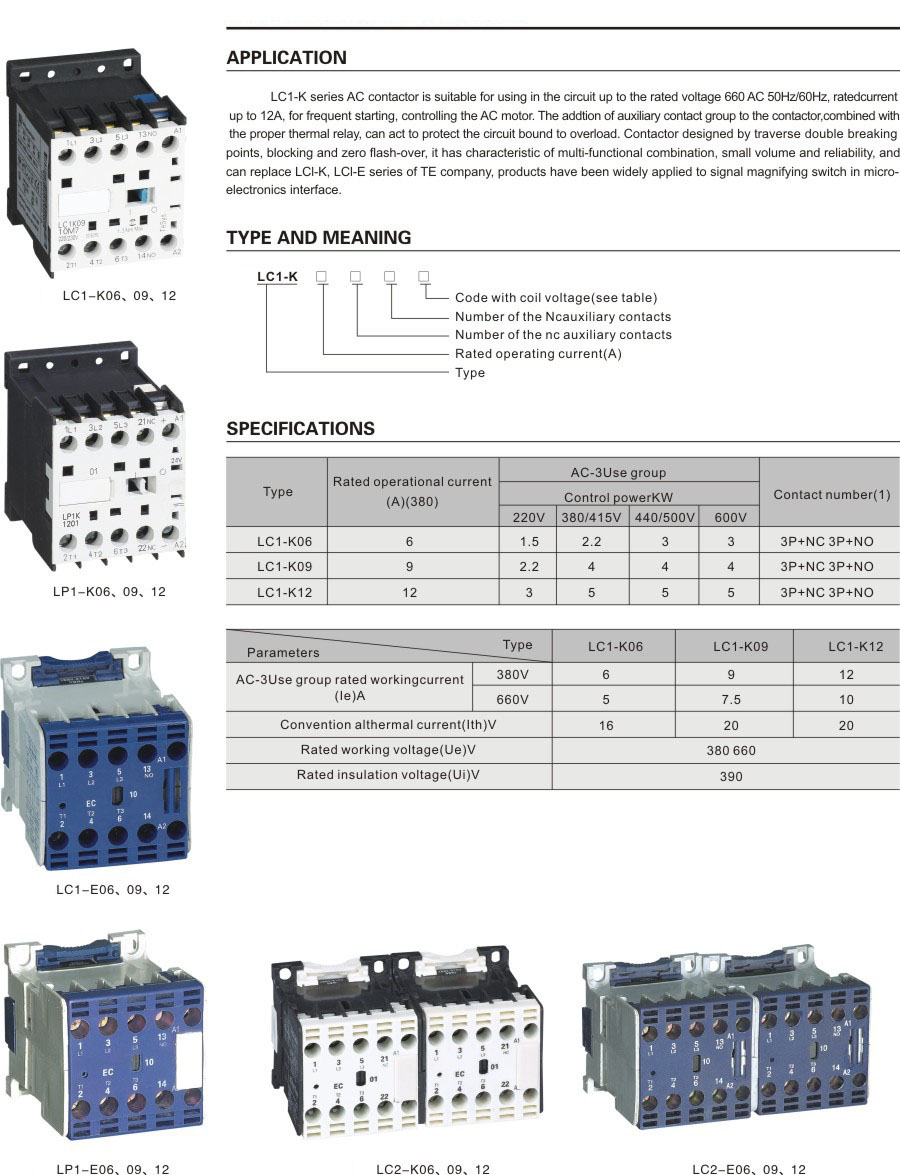

LC1-K, LC1-E, LC2-K, LC2-E AC contactor

LP1-K, LP1-E DC contactor

Technical parameter
1, the main technical performance guideline of contactors table 1,table 2
2, the voltage of the contactors loop are 24V, 36V, 48V, 110V, 220V, 380V for AC (LC1-K, LC1-E, LC2-K, LC2-E),

12V, 24V, 48V, 110V, 220V for DC (LP1-K, LP1-E)
Note: for special voltage specification, please discuss with us for doing
3, Action character: the close voltage for AC is 85-110%Us£¬release voltage is 20-75%Us; the close voltage for DC is 80-110%Us£¬release voltage is 10-75%Us.
Parameter\Type
LC1-K06/LC1-E06/LC2-K06/LC2-E06
AC CONTACTOR
¡¡
LP1-K06/LP1-E06
DC CONTACTOR
LC1-K06/LC1-E06/LC2-K06/LC2-E06
AC CONTACTOR
¡¡
LP1-K06/LP1-E06
DC CONTACTOR
LC1-K06/LC1-E06/LC2-K06/LC2-E06
AC CONTACTOR
¡¡
LP1-K06/LP1-E06
DC CONTACTOR
rating working voltage(V)
660(990)

rating working current (A)
380V
AC-3
6
9
12
AC-4
2.6
3.5
5
Appoint heating current(A)
16
16
20

the max current when turn on(A)
380V
60
90
120
660V
72
108
144

the max current for turn off (A)
380V
48
72
96
660V
60
90
120

three phases cage motors power which can be pulled AC3(KW)
220v
1.5
2.2
3
380v
2.2
4
5.5
660v
3
5.5
7.5
operation frequency
Time/h

electricity life
AC-3
1200
AC-4
300

electricity life
Ten thousand times

AC-3
100
AC-4
20
machinery life
Ten thousand times
1000
AC loop electricity loss(W)
2
DC loop electricity loss(W)
4
the section of connection guideline(mm2)
1.5
matched fuse machine type
NTOO-16
standard
GB-14048.4

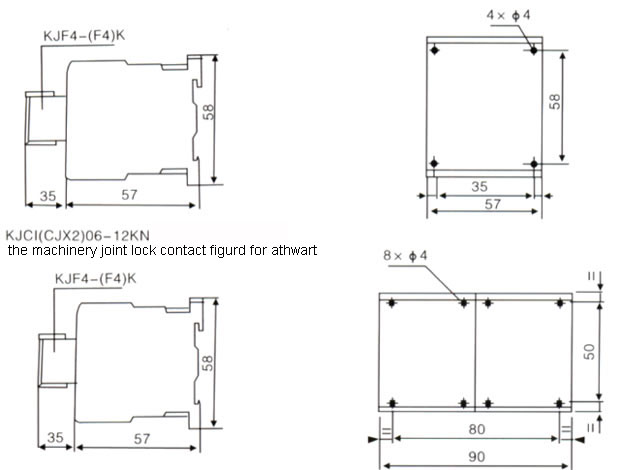

The appearance and size of installation
