SL, SN MODULAR SIGNAL LAMP

  Product Summarize :
  Application scope
  The Modular Signal Lamp is applicable to circuit with rated voltage 230V~ and frequency 50/60Hz for visual indication and signaling.
  Standard
  JB/T 3908-1999
  Main technical parameters


           Rated voltage: 230V AC

           Rated frequency: 50/60Hz

           Colour: red, green, yellow

           Connection terminal: pillar terminal with clamp

           Connection capacity: rigid conductor 10mm2

           Installation:

    On symmetrical DIN rail

          Panel mounting



SL signal lamp

       Max power: 0.6W

       Illumination: LED

       Service duration: 30,000 hours



SN signal lamp

         Max power: 1.2W

         Illumination: Neon bulb

         Service duration: 15,000 hours

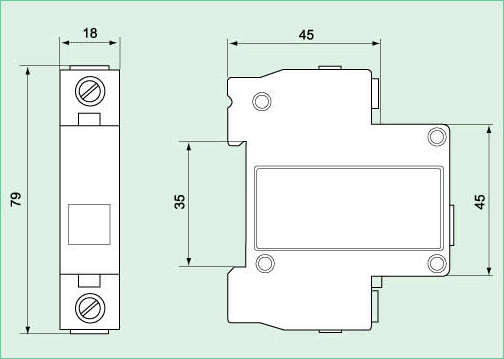

  Overall and mounting dimensioned chart :
