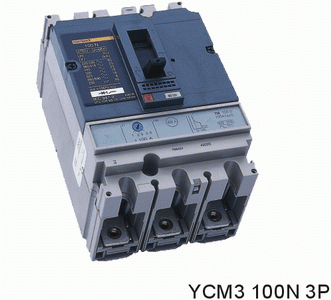

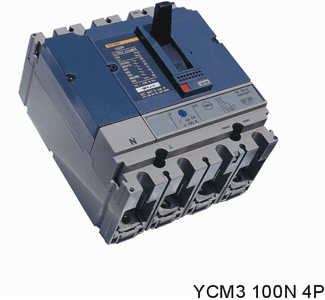

YCM3 Moulded Case Circuit Breaker
¡¡
Application:
YCM3 series moulded case circuit breaker is one of the most advanced type breaker in the world, which adopts international advanced design and manufacture technology. They are suitable for short circuit and overload protection in circuit of AC 690V 50/60Hz,rated current from 12.5A to 630A. Its rated insulation voltage is 690V. It can make and break the unfrequently circuit under normal conditions. It takes protecting effect when mouse cage motors unfrequently start, making&breaking and protecting against overload, short circuit and lacking voltage.
1.Tripping Characteristics
|
Rated Current of release |
Themodynamic Release (ambient temp+40¡ãC) |
Operational Current of Magnetic Release (A) |
|
|
1.05In(cold state) operative time(h) |
1.30In(heat state) operative time(h) |
||
|
In¡Ü63 |
¡Ý1 |
<1 |
10In ¡À20% |
|
63¡´In¡Ü100 |
¡Ý2 |
<2 |
10In¡À20% |
|
100<In¡Ü630 |
¡Ý2 |
<2 |
5-10In¡À20% |
¡¡
|
Rate Current of release(A) |
Themodynamic Release (ambient temp+40¡ãC) |
Operational Current of Magnetic Release(A) |
|||
|
1.0In(cold state) operative time(h) |
1.20In(heat state) operative time(h) |
1.50In(heat state) operative time(h) |
1.01In(heat state) operative time(h) |
||
|
12.5¡ÜIn¡Ü400 |
¡Ý2 |
<2 |
¡Ü4min |
2S<Tp¡Ü10S |
12In¡À20% |
2.Main Technical specifications
|
Type |
Rated Current(A) |
Poles |
Rated Insulating Voltage(V) |
Rated Operating Voltage(V) |
Arcing Over Distance (mm) |
Ultimate Short Circuit Breaking Capacity(KA) |
Servies Short Circuit Breaking Capacity(KA) |
Operating performance(times) |
||
|
ON |
OFF |
|||||||||
|
YCM3-100D |
12.5,16, 20,25,32, 40,50,63, 80,100 |
3,4 |
950 |
690 |
0 |
18 |
18 |
1500 |
8500 |
|
|
YCM3-100N |
25 |
25 |
||||||||
|
YCM3-100H |
70 |
70 |
||||||||
|
YCM3-100L |
150 |
150 |
||||||||
|
YCM3-160D |
16,20,25, 32,40,50, 63,80,100, 125,160 |
25 |
25 |
1000 |
7000 |
|||||
|
YCM3-160N |
36 |
36 |
||||||||
|
YCM3-160H |
70 |
70 |
||||||||
|
YCM3-160L |
150 |
150 |
||||||||
|
YCM3-250D |
160,180,200, 225,250 |
25 |
25 |
1000 |
7000 |
|||||
|
YCM3-250N |
36 |
36 |
||||||||
|
YCM3-250H |
70 |
70 |
||||||||
|
YCM3-250L |
150 |
150 |
||||||||
|
YCM3-400D |
200,225,250, 300,315,400 |
35 |
35 |
1000 |
4000 |
|||||
|
YCM3-400N |
45 |
45 |
||||||||
|
YCM3-400H |
70 |
70 |
||||||||
|
YCM3-400L |
150 |
150 |
||||||||
|
YCM3-630D |
315,350,400, 500,600,630 |
35 |
35 |
1000 |
4000 |
|||||
|
YCM3-630N |
45 |
45 |
||||||||
|
YCM3-630H |
70 |
70 |
||||||||
|
YCM3-630L |
150 |
150 |
||||||||
