YC5S MINI CIRCUIT BREAKER

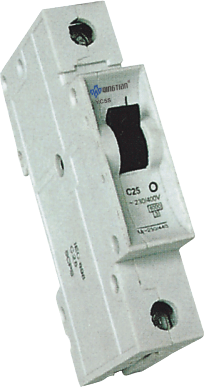

YC5S 1P

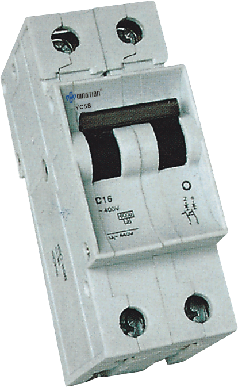

YC5S 2P

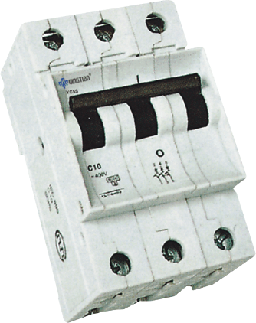

YC5S 3P

Application

The YCL7-63 series MCB belong to the advanced level of the world .They have the characteristic of small size, high sensitivity, long using life and strong protective function for short circuit and overload. The products are the newest generation and feature of high protective grade, high breaking capacity, good reliability of sensitive action and convenient use. It is generally used for illumination and distribution in
Industry, commerce and buildings.

Technical Data
Frequency 50Hz/60Hz
Rated Voltage 240/415VAC
Breaking capacity 6000A
Rated frame current 50A
Rated trip current(A) 2,3,4,6,8,10,13,16,20,32,40,50
No.Of pole 1,2,3
