YCL7-63 Mini Circuit Breaker

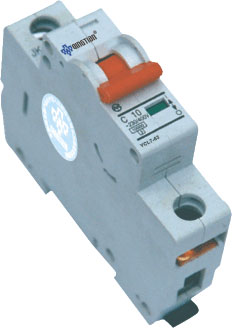

YCL7-63 1P
YCL7-63 2P
YCL7-63 3P
YCL7-63 4P
ˇˇ
ˇˇ
Application

The YCL7-63 series MCB belong to the advanced level of the world. They have the characteristic of small size, high sensitivity, long using life and strong protective function for short circuit and overload. The products are the newest generation and feature of high protective grade, high breaking capacity, good reliability of sensitive action and convenient use. It is generally used for illumination and distribution in industry, commerce and buildings.

ˇˇ
ˇˇ
Technical specifications
Setting temperature: 40ˇăC
Rated Voltage: 240V/415V
Rated current: 1,3,5,10,15,20,25,32,40,50,60A
Electrical life: no less than 6000 operations
Mechanical life: no less than 40000 operations
Breaking capacity: 10KA
No. of pole 1p,2p,3p,4p
