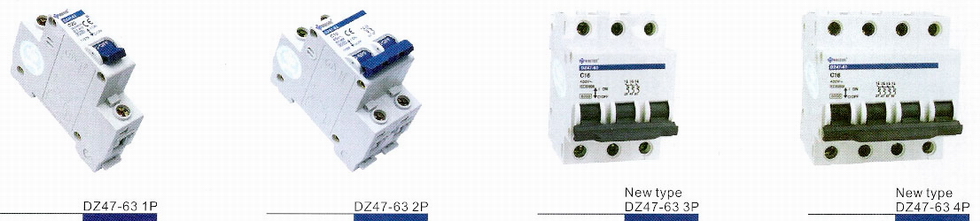

DZ47-63(C45N) MINI CIRCUIT BREAKER
APPLICATION
DZ47-63(C45N) series circuit breaker is used in lighting distribution system or motor distribution system for protecting overload and short circuit in the system. The product is neoteric in structure, light in weight, reliable and excellent in performance. Its frame and parts adopt plastics of high fire resistant and shockproof. The product, with long life, is mainly used in AC 50Hz/60Hz single pole 240V or two, three, four poles up to 415V circuit for overload and short circuit protection, as well as for unfrequently switching on&off electric equipment and lighting circuit in normal case. The products comply with IEC 60898 & GB10963-1999.
Specifications
|
Setting temperature of protective characteristics at 400C |
|
Rated Voltage:240V/415V |
|
Rated Current:1,3,6,10,16,20,25,32,40,50,63A |
|
Electrical life: no less than 6000 operations |
|
Mechanical life:(O-C) on less than 20000 |
Rated making and breaking capacity
|
|
||||||||||||||||||||||||||||||||||||||||
Over current protective characteristic
|
Rated current of release In (A) |
Initial state |
Test current |
Set time |
Prospective result |
Remarks |
|
1¡«60 |
Cold position |
1.13In |
t¡Ý1 |
Non-trip |
Current up to specified value smoothly in 5s |
|
1¡«60 |
Made the test following closely |
1.45In |
t>1h |
Trip |
¡¡
|
|
In¡Ü32 |
Cold state |
2.55In |
1s<t<60s |
Tripping |
¡¡
|
|
In¡Ü32 |
Cold state |
2.55In |
1s<t<120s |
Tripping |
¡¡
|
|
1¡«60 |
Cold state |
5In |
t¡Ý0.1s |
Non-triping |
Model C |
|
1¡«60 |
Cold state |
10In |
t¡Ý0.1s |
Tripping |
Model C |
|
1¡«60 |
Cold state |
10In |
t¡Ý0.1s |
Non-triping |
Model D |
|
1¡«60 |
Cold state |
14In |
t¡Ý0.1s |
Tripping |
Model D |
¡¡
¡¡
YCB1-100(NC 100H)Mini Circuit Breaker
 |
 |
 |
 |
| YCB-100 1P | YCB-100 2P | YCB-100 3P | YCB-100 4P |
Application
YCB1-100 high breaking
capacity circuit breaker is used in AC 50Hz or 60Hz, single pole
240V,2¡¢3¡¢4¡¢poles 415V, for protecting the circuit which overload and short
circuit may
take place. It can be used in lighting and electric motor
distribution system. Meantime it is applicable to infrequently switch the
electric apparatus and light circuit under the normal conditions. The
products comply with IEC 60898 & GB10963-1999.
Specifications
|
Rated current(A)
|
Pole number(P)
|
Rated voltage(V)
|
Breaking capacity
|
|
50 63 80 100 |
1
|
130
|
10000
|
|
230/240
|
10000
|
||
|
400/415
|
4000
|
||
|
2,3,4
|
230/240
|
10000
|
|
|
400/415
|
10000
|
||
|
440
|
6000
|
