MCB BUSBAR

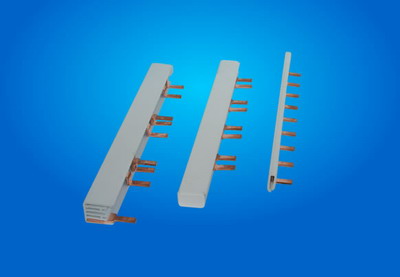

PIN TYPE
Rated current: 63A
Poles: 1、2、3、4P
| Code | Rated current | Terminals | Length |
| BP063/1 | 63A | 56/55 | 1M |
| BP063/2 | 63A | 27 | 1M |
| BP063/3 | 63A | 18 | 1M |
| BP063/4 | 63A | 14 | 1M |
| BP125/1 | 125A | 56/55 | 1M |
| BP125/2 | 125A | 27 | 1M |
| BP125/3 | 125A | 18 | 1M |
| BP125/4 | 125A | 14 | 1M |

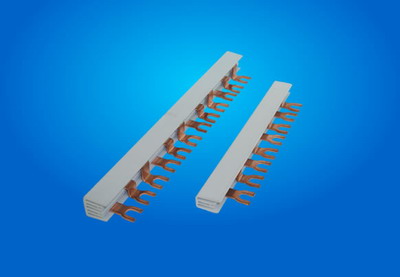

U TYPE
Rated current: 63A
Poles: 1、2、3、4P
| Code | Rated current | Terminals | Length |
| BF063/1 | 63A | 56/55 | 1M |
| BF063/2 | 63A | 27 | 1M |
| BF063/3 | 63A | 18 | 1M |
| BF063/4 | 63A | 14 | 1M |
