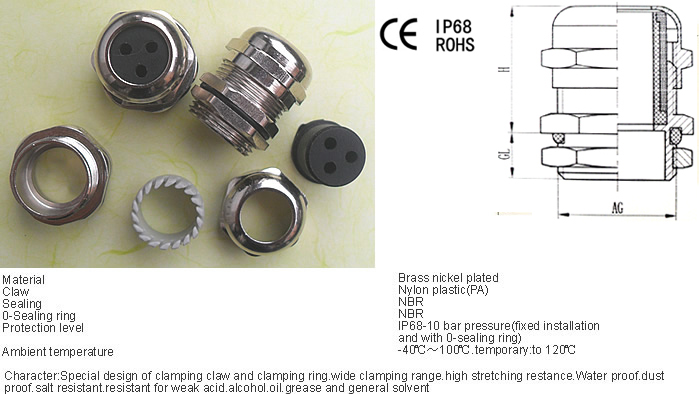

Multi-hole brass cable gland (2~4 holes)
.jpg)
2.gif)
|
AG Specification of thread |
(two holes) Cable Range |
Outer diameter of thread |
Mounting hole diameter |
GL Thread length |
Wrench diameter |
|
M12〜1.5 |
3-1.2 |
12mm |
12-12.2 |
7mm |
14mm |
|
M16〜1.5 |
4-1.6 |
16mm |
16-16.2 |
8mm |
18mm |
|
M18〜1.5 |
3.5-2 |
18mm |
18-18.2 |
8mm |
20mm |
|
M20〜1.5 |
5.3-1.5 |
20mm |
20-20.2 |
8mm |
22mm |
|
M20〜1.5 |
3.5-2 |
20mm |
20-20.2 |
8mm |
22mm |
|
M22〜1.5 |
6-2.5 |
22mm |
22-22.2 |
8mm |
24mm |
|
M25〜1.5 |
8.7-4 |
25mm |
25-25.2 |
9mm |
30mm |
|
M32〜1.5 |
10-5 |
32mm |
32-32.5 |
9mm |
35mm |
|
G1/4 |
3-1.2 |
13.1mm |
|
10mm |
14mm |
|
G3/8 |
4-1.6 |
16.6mm |
|
7mm |
18mm |
|
G1/2 |
23.5-2 |
20.9mm |
|
8mm |
22mm |
|
G1/2 |
5.3-1.5 |
20.9mm |
|
8mm |
22mm |
|
G3/4 |
8.7-4.5 |
26.4mm |
|
9mm |
30mm |
|
G1 |
10-5 |
33.2mm |
|
10mm |
35mm |
|
PG7 |
3-1.2 |
12.5mm |
12.5-12.7 |
7mm |
14mm |
|
PG9 |
4-1.6 |
15.2mm |
15.2-15.4 |
8mm |
18mm |
|
PG11 |
3.5-2 |
18.6mm |
18.6-18.8 |
8mm |
20mm |
|
PG13.5 |
3.5-1.5 |
20.4mm |
20.4-20.6 |
8mm |
22mm |
|
PG16 |
6-2.5 |
22.5mm |
22.5-22.7 |
8mm |
24mm |
|
PG21 |
8.7-4.5 |
28.3mm |
28.3-28.5 |
9mm |
30mm |
|
PG29 |
10-5 |
37mm |
37-37.2 |
10mm |
40mm |
|
NPT3/8 |
4-1.6 |
17mm |
|
8mm |
18mm |
|
NPT1/2 |
3.5-2 |
21.2mm |
|
8mm |
22mm |
|
NPT1/2 |
5.3-1.5 |
21.2mm |
|
8mm |
22mm |
|
NPT3/4 |
8.7-4.5 |
26.5mm |
|
9mm |
30mm |
|
NPT1 |
10-5 |
33.2mm |
|
10mm |
35mm |
3.gif)
|
AG Specification of thread |
(three holes) Cable Range |
Outer diameter of thread |
Mounting hole diameter |
GL Thread length |
Wrench diameter |
|
M12〜1.5 |
2.6-1.2 |
12mm |
12-12.2 |
7mm |
14mm |
|
M16〜1.5 |
2.6-1.2 |
16mm |
16-16.2 |
8mm |
18mm |
|
M18〜1.5 |
4-1.6 |
18mm |
18-18.2 |
8mm |
20mm |
|
M20〜1.5 |
5-2 |
20mm |
20-20.2 |
8mm |
22mm |
|
M20〜1.5 |
3.5-1.2 |
20mm |
20-20.2 |
8mm |
22mm |
|
M22〜1.5 |
3.5-1.5 |
22mm |
22-22.2 |
8mm |
24mm |
|
M25〜1.5 |
8-4 |
25mm |
25-25.2 |
9mm |
30mm |
|
M32〜1.5 |
10-5 |
32mm |
32-32.5 |
9mm |
35mm |
|
G1/4 |
2.6-1.2 |
13.1mm |
|
10mm |
14mm |
|
G3/8 |
4-1.6 |
16.6mm |
|
7mm |
18mm |
|
G1/2 |
5-2 |
20.9mm |
|
8mm |
22mm |
|
G1/2 |
3.5-1.5 |
20.9mm |
|
8mm |
22mm |
|
G3/4 |
8-4 |
26.4mm |
|
9mm |
30mm |
|
G1 |
10-5 |
33.2mm |
|
10mm |
35mm |
|
PG7 |
2.6-1.2 |
12.5mm |
12.5-12.7 |
7mm |
14mm |
|
PG9 |
2.6-1.2 |
15.2mm |
15.2-15.4 |
8mm |
18mm |
|
PG11 |
4-1.6 |
18.6mm |
18.6-18.8 |
8mm |
20mm |
|
PG13.5 |
5-2 |
20.4mm |
20.4-20.6 |
8mm |
22mm |
|
PG16 |
3.5-1.5 |
22.5mm |
22.5-22.7 |
8mm |
24mm |
|
PG21 |
5-2 |
28.3mm |
28.3-28.5 |
9mm |
30mm |
|
PG29 |
10-5 |
37mm |
37-37.2 |
10mm |
40mm |
|
NPT3/8 |
4-1.6 |
17mm |
|
8mm |
18mm |
|
NPT1/2 |
3.5-1.5 |
21.2mm |
|
8mm |
22mm |
|
NPT1/2 |
5-2 |
21.2mm |
|
8mm |
22mm |
|
NPT3/4 |
8-4 |
26.5mm |
|
9mm |
30mm |
|
NPT1 |
10-5 |
33.2mm |
|
10mm |
35mm |
4.gif)
|
AG Specification of thread |
(four holes) Cable Range |
Outer diameter of thread |
Mounting hole diameter |
GL Thread length |
Wrench diameter |
|
M12〜1.5 |
2.3-1 |
12mm |
12-12.2 |
7mm |
14mm |
|
M16〜1.5 |
2.3-1 |
16mm |
16-16.2 |
8mm |
18mm |
|
M18〜1.5 |
3-1.2 |
18mm |
18-18.2 |
8mm |
20mm |
|
M20〜1.5 |
4.2-1.7 |
20mm |
20-20.2 |
8mm |
22mm |
|
M20〜1.5 |
3.5-1.5 |
20mm |
20-20.2 |
8mm |
22mm |
|
M22〜1.5 |
4.5-2 |
22mm |
22-22.2 |
8mm |
24mm |
|
M25〜1.5 |
5-2 |
25mm |
25-25.2 |
9mm |
30mm |
|
M32〜1.5 |
9-4.5 |
32mm |
32-32.5 |
9mm |
35mm |
|
G1/4 |
2.3-1 |
13.1mm |
|
10mm |
14mm |
|
G3/8 |
3-1.2 |
16.6mm |
|
7mm |
18mm |
|
G1/2 |
3.5-1.5 |
20.9mm |
|
8mm |
22mm |
|
G1/2 |
4.5-2 |
20.9mm |
|
8mm |
22mm |
|
G3/4 |
7-3.5 |
26.4mm |
|
9mm |
30mm |
|
G1 |
9-4.5 |
33.2mm |
|
10mm |
35mm |
|
PG7 |
2.3-1 |
12.5mm |
12.5-12.7 |
7mm |
14mm |
|
PG9 |
2.3-1 |
15.2mm |
15.2-15.4 |
8mm |
18mm |
|
PG11 |
3-1.2 |
18.6mm |
18.6-18.8 |
8mm |
20mm |
|
PG13.5 |
4.2-1.7 |
20.4mm |
20.4-20.6 |
8mm |
22mm |
|
PG16 |
4.5-2 |
22.5mm |
22.5-22.7 |
8mm |
24mm |
|
PG21 |
7-3.5 |
28.3mm |
28.3-28.5 |
9mm |
30mm |
|
PG29 |
9-4.5 |
37mm |
37-37.2 |
10mm |
40mm |
|
NPT3/8 |
2.3-1 |
17mm |
|
8mm |
18mm |
|
NPT1/2 |
3.5-1.5 |
21.2mm |
|
8mm |
22mm |
|
NPT1/2 |
4.5-2 |
21.2mm |
|
8mm |
22mm |
|
NPT3/4 |
7-3.5 |
26.5mm |
|
9mm |
30mm |
|
NPT1 |
9-4.5 |
33.2mm |
|
10mm |
35mm |
Multi-hole brass cable gland (5~8 holes)
.jpg)
5.gif)
|
AG Specification of thread |
(five holes) Cable Range |
Outer diameter of thread |
Mounting hole diameter |
GL Thread length |
Wrench diameter |
|
M16〜1.5 |
2.5-1 |
16mm |
16-16.2 |
8mm |
18mm |
|
M20〜1.5 |
3-1.2 |
20mm |
20-20.2 |
8mm |
22mm |
|
M20〜1.5 |
4.2-1.7 |
20mm |
20-20.2 |
8mm |
22mm |
|
M25〜1.5 |
3.5-1.5 |
25mm |
25-25.2 |
9mm |
30mm |
|
M25〜1.5 |
6-3 |
25mm |
25-25.2 |
9mm |
30mm |
|
M32〜1.5 |
8-4 |
32mm |
32-32.2 |
9mm |
35mm |
|
G3/8 |
2.5-1 |
16.6mm |
|
7mm |
18mm |
|
G1/2 |
3-1.2 |
20.9mm |
|
8mm |
22mm |
|
G1/2 |
4.2-1.7 |
20.9mm |
|
8mm |
22mm |
|
G3/4 |
3.5-1.5 |
26.4mm |
|
9mm |
30mm |
|
G3/4 |
6-3 |
26.4mm |
|
9mm |
30mm |
|
G1 |
8-4 |
33.2mm |
|
10mm |
35mm |
|
PG9 |
2.5-1 |
15.2mm |
15.2-15.4 |
8mm |
18mm |
|
PG13.5 |
3-1.2 |
20.4mm |
20.4-20.6 |
8mm |
22mm |
|
PG13.5 |
4.2-1.7 |
20.4mm |
20.4-20.6 |
8mm |
22mm |
|
PG21 |
3.5-1.5 |
28.3mm |
28.3-28.5 |
9mm |
30mm |
|
PG21 |
6-3 |
28.3mm |
28.3-28.5 |
9mm |
30mm |
|
PG29 |
8-4 |
37mm |
37-37.2 |
10mm |
40mm |
|
NPT3/8 |
2.5-1 |
17mm |
|
8mm |
18mm |
|
NPT1/2 |
3-1.2 |
21.2mm |
|
8mm |
22mm |
|
NPT1/2 |
4.2-1.7 |
21.2mm |
|
8mm |
22mm |
|
NPT3/4 |
3.5-1.5 |
26.5mm |
|
9mm |
30mm |
|
NPT3/4 |
6-3 |
26.5mm |
|
9mm |
30mm |
|
NPT1 |
8-4 |
33.2mm |
|
10mm |
35mm |
6.gif)
|
AG Specification of thread |
(six holes) Cable Range |
Outer diameter of thread |
Mounting hole diameter |
GL Thread length |
Wrench diameter |
|
M16〜1.5 |
2-1 |
16mm |
16-16.2 |
8mm |
18mm |
|
M20〜1.5 |
3-1.2 |
20mm |
20-20.2 |
8mm |
22mm |
|
M25〜1.5 |
3.5-1.5 |
25mm |
25-25.2 |
9mm |
30mm |
|
M25〜1.5 |
5.3-2.4 |
25mm |
25-25.2 |
9mm |
30mm |
|
M32〜1.5 |
7-3.5 |
32mm |
32-32.2 |
9mm |
35mm |
|
G3/8 |
2-1 |
16.6mm |
|
7mm |
18mm |
|
G1/2 |
3-1.2 |
20.9mm |
|
8mm |
22mm |
|
G3/4 |
3.5-1.5 |
26.4mm |
|
9mm |
30mm |
|
G3/4 |
5.3-2.4 |
26.4mm |
|
9mm |
30mm |
|
G1 |
7-3.5 |
33.2mm |
|
10mm |
35mm |
|
PG9 |
2-1 |
15.2mm |
15.2-15.4 |
8mm |
18mm |
|
PG13.5 |
3-1.2 |
20.4mm |
20.4-20.6 |
8mm |
22mm |
|
PG21 |
3.5-1.5 |
28.3mm |
28.3-28.5 |
9mm |
30mm |
|
PG21 |
5.3-2.4 |
28.3mm |
28.3-28.5 |
9mm |
30mm |
|
PG29 |
7-3.5 |
37mm |
37-37.2 |
10mm |
40mm |
|
NPT3/8 |
2-1 |
17mm |
|
8mm |
18mm |
|
NPT1/2 |
3-1.2 |
21.2mm |
|
8mm |
22mm |
|
NPT3/4 |
3.5-1.5 |
26.5mm |
|
9mm |
30mm |
|
NPT3/4 |
5.3-2.4 |
26.5mm |
|
9mm |
30mm |
|
NPT1 |
7-3.5 |
33.2mm |
|
10mm |
35mm |
7.gif)
|
AG Specification of thread |
(seven holes) Cable Range |
Outer diameter of thread |
Mounting hole diameter |
GL Thread length |
Wrench diameter |
|
M20〜1.5 |
3-1.2 |
20mm |
20-20.2 |
8mm |
22mm |
|
M25〜1.5 |
3.5-1.5 |
25mm |
25-25.2 |
9mm |
30mm |
|
M32〜1.5 |
6-3 |
32mm |
32-32.2 |
9mm |
35mm |
|
G1/2 |
3-1.2 |
20.9mm |
|
8mm |
22mm |
|
G3/4 |
3.5-1.5 |
26.4mm |
|
9mm |
30mm |
|
G1 |
6-3 |
33.2mm |
|
10mm |
35mm |
|
PG13.5 |
3-1.2 |
20.4mm |
20.4-20.6 |
8mm |
22mm |
|
PG21 |
3.5-1.5 |
28.3mm |
28.3-28.5 |
9mm |
30mm |
|
PG29 |
6-3 |
37mm |
37-37.2 |
10mm |
40mm |
|
NPT1/2 |
3-1.2 |
21.2mm |
|
8mm |
22mm |
|
NPT3/4 |
3.5-1.5 |
26.5mm |
|
9mm |
30mm |
|
NPT1 |
6-3 |
33.2mm |
|
10mm |
35mm |
8.gif)
|
AG Specification of thread |
(eight holes) Cable Range |
Outer diameter of thread |
Mounting hole diameter |
GL Thread length |
Wrench diameter |
|
M20〜1.5 |
2.8-1 |
20mm |
20-20.2 |
8mm |
22mm |
|
M25〜1.5 |
3.5-1.5 |
25mm |
25-25.2 |
9mm |
30mm |
|
G1/2 |
2.8-1 |
20.9mm |
|
8mm |
22mm |
|
G3/4 |
3.5-1.5 |
26.4mm |
|
9mm |
30mm |
|
PG13.5 |
2.8-1 |
20.4mm |
20.4-20.6 |
8mm |
22mm |
|
PG21 |
3.5-1.5 |
28.3mm |
28.3-28.5 |
9mm |
30mm |
|
NPT1/2 |
2.8-1 |
21.2mm |
|
8mm |
22mm |
|
NPT3/4 |
3.5-1.5 |
26.5mm |
|
9mm |
30mm |
