Explosion-proof brass cable gland---PG
|
AG Specification of thread |
Cable Range |
Outer diameter of thread |
Mounting hole diameter |
GL Thread length |
Wrench diameter |
|
PG7 |
6.5-3 |
12.5mm |
12.5-12.7mm |
7mm |
14mm |
|
PG7 |
5-2 |
12.5mm |
12.5-12.7mm |
7mm |
14mm |
|
PG9 |
8-4 |
15.2mm |
15.2-15.4mm |
8mm |
17mm |
|
PG9 |
6-2 |
15.2mm |
15.2-15.4mm |
8mm |
17mm |
|
PG11 |
10-5 |
18.6mm |
18.6-18.8mm |
8mm |
20mm |
|
PG11 |
7-3 |
18.6mm |
18.6-18.8mm |
8mm |
20mm |
|
PG13.5 |
12-6 |
20.4mm |
20.4-20.6mm |
8mm |
22mm |
|
PG13.5 |
9-5 |
20.4mm |
20.4-20.6mm |
8mm |
22mm |
|
PG16 |
14-10 |
22.5mm |
22.5-22.7mm |
9mm |
24mm |
|
PG16 |
12-6 |
22.5mm |
22.5-22.7mm |
9mm |
24mm |
|
PG19 |
14-10 |
25mm |
25-25.2mm |
9mm |
24/27mm |
|
PG21 |
18-13 |
28.3mm |
28.3-28.5mm |
9mm |
30mm |
|
PG21 |
16-9 |
28.3mm |
28.3-28.5mm |
9mm |
30mm |
|
PG25 |
22-15 |
32mm |
32-32.2mm |
10mm |
35mm |
|
PG29 |
25-18 |
37mm |
37-37.2mm |
11mm |
40mm |
|
PG29 |
20-13 |
37mm |
37-37.2mm |
11mm |
40mm |
|
PG36 |
33-22 |
47mm |
47-47.2mm |
12mm |
50mm |
|
PG36 |
26-20 |
47mm |
47-47.2mm |
12mm |
50mm |
|
PG42 |
38-32 |
54mm |
54-54.2mm |
13mm |
57mm |
|
PG42 |
31-25 |
54mm |
54-54.2mm |
13mm |
57mm |
|
PG48 |
44-37 |
59.3mm |
59.3-59.5mm |
13mm |
65mm |
|
PG48 |
35-29 |
59.3mm |
59.3-59.5mm |
13mm |
65mm |
¡¡

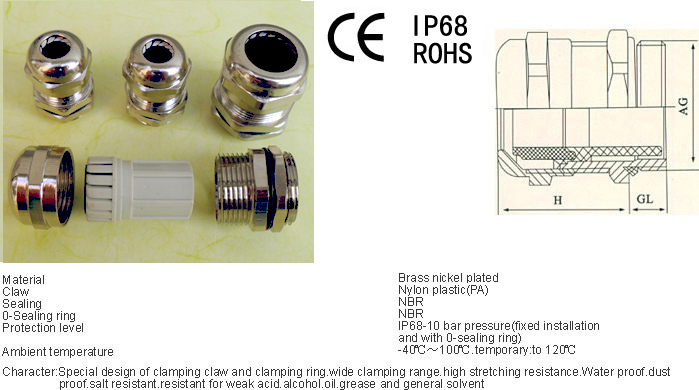

Explosion-proof brass cable gland---Metric
|
AG Specification of thread |
Cable Range |
Outer diameter of thread |
Mounting hole diameter |
Thread length |
Joint length |
Wrench diameter |
|
M12¡Á1.5 |
6.5-3 |
12mm |
12-12.2 |
7mm |
19mm |
14mm |
|
M16¡Á1.5 |
8-4 |
16mm |
16-16.2 |
8mm |
20mm |
18mm |
|
M18¡Á1.5 |
10-5 |
18mm |
18-18.2 |
8mm |
21mm |
20mm |
|
M20¡Á1.5 |
12-6 |
20mm |
20-20.2 |
8mm |
22mm |
22mm |
|
M22¡Á1.5 |
14-10 |
22mm |
22-22.2 |
8mm |
23mm |
24mm |
|
M24¡Á1.5 |
14-10 |
24mm |
24-24.2 |
9mm |
25mm |
24/27mm |
|
M25¡Á1.5 |
14-10 |
25mm |
25-25.2 |
9mm |
25mm |
24/27mm |
|
M25¡Á1.5 |
18-13 |
25mm |
25-25.2 |
9mm |
27mm |
30/27mm |
|
M27¡Á1.5(2) |
18-13 |
27mm |
27-27.2 |
9mm |
27mm |
30mm |
|
M28¡Á1.5(2) |
18-13 |
28mm |
28-28.2 |
9mm |
27mm |
30mm |
|
M30¡Á1.5(2) |
18-13 |
30mm |
30-30.2 |
9mm |
29mm |
30/32mm |
|
M32¡Á1.5(2) |
22-15 |
32mm |
32-32.2 |
10mm |
29mm |
35mm |
|
M33¡Á1.5(2) |
22-15 |
33mm |
33-33.2 |
10mm |
29mm |
35mm |
|
M36¡Á1.5(2) |
25-18 |
36mm |
36-36.2 |
10mm |
31mm |
40mm |
|
M37¡Á1.5(2) |
25-18 |
37mm |
37-37.2 |
10mm |
31mm |
40mm |
|
M40¡Á1.5(2) |
25-18 |
40mm |
40-40.2 |
11mm |
31mm |
40/45mm |
|
M40¡Á1.5(2) |
30-22 |
40mm |
40-40.2 |
11mm |
35mm |
45mm |
|
M42¡Á1.5(2) |
30-22 |
42mm |
42-42.2 |
11mm |
35mm |
45mm |
|
M47¡Á1.5(2) |
33-25 |
47mm |
47-47.2 |
11mm |
37mm |
50mm |
|
M48¡Á1.5(2) |
33-25 |
48mm |
48-48.2 |
11mm |
37mm |
50mm |
|
M50¡Á1.5(2) |
38-32 |
50mm |
50-50.2 |
12mm |
37mm |
57/55mm |
|
M54¡Á1.5(2) |
38-32 |
54mm |
54-54.2 |
12mm |
38mm |
57mm |
|
M56¡Á1.5(2) |
38-32 |
56mm |
56-56.2 |
12mm |
38mm |
57/59mm |
|
M60¡Á1.5(2) |
44-37 |
60mm |
60-60.2 |
13mm |
38mm |
65mm |
|
M63¡Á1.5(2) |
44-37 |
63mm |
63-63.2 |
13mm |
38mm |
65mm |
|
M64¡Á1.5(2) |
44-37 |
64mm |
64-64.2 |
13mm |
38mm |
65/68mm |
