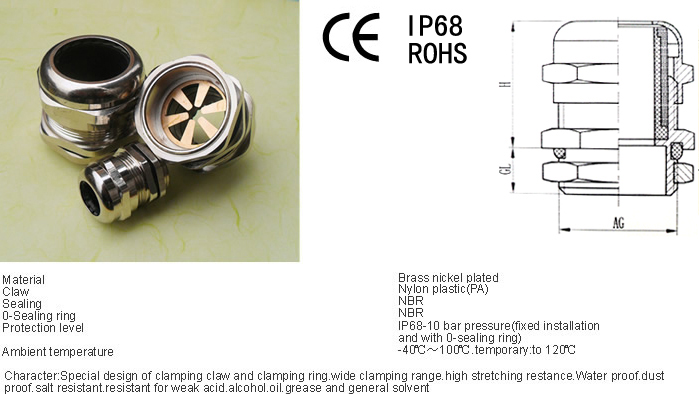

EMC brass cable gland
|
Specification of thread (metric) |
PG Specification of thread |
NPT Specification of thread |
G Specification of thread |
Cable Range |
GL Thread length |
H Joint length |
Wrench diameter |
|
M12〜1.5 |
PG7 |
NPT1/4 |
G1/4 |
6.5-3 |
7mm |
19mm |
14mm |
|
M14〜1.5 |
|
|
|
8-4 |
7mm |
19mm |
18mm |
|
M16〜1.5 |
PG9 |
NPT3/8 |
G3/8 |
8-4 |
8mm |
20mm |
18mm |
|
M18〜1.5 |
PG11 |
|
|
10-5 |
8mm |
21mm |
20mm |
|
M20〜1.5 |
PG13.5 |
NPT1/2 |
G1/2 |
12-6 |
8mm |
22mm |
22mm |
|
M22〜1.5 |
PG16 |
|
|
14-10 |
8mm |
23mm |
24mm |
|
M24〜1.5 |
|
|
|
14-10 |
9mm |
25mm |
24/27mm |
|
M25〜1.5 |
PG19 |
|
|
14-10 |
9mm |
25mm |
24/27mm |
|
M25〜1.5 |
|
|
|
18-13 |
9mm |
27mm |
30/27mm |
|
M27〜1.5(2) |
|
|
|
18-13 |
9mm |
27mm |
30mm |
|
M28〜1.5(2) |
PG21 |
NPT3/4 |
G3/4 |
18-13 |
9mm |
27mm |
30mm |
|
M30〜1.5(2) |
|
|
|
18-13 |
9mm |
29mm |
30/32mm |
|
M32〜1.5(2) |
PG25 |
|
|
22-15 |
10mm |
29mm |
35mm |
|
M33〜1.5(2) |
|
|
|
22-15 |
10mm |
29mm |
35mm |
|
M36〜1.5(2) |
|
|
|
25-18 |
10mm |
31mm |
40mm |
|
M37〜1.5(2) |
PG29 |
NPT1 |
G1 |
25-18 |
10mm |
31mm |
40mm |
|
M40〜1.5(2) |
|
|
|
25-18 |
11mm |
31mm |
40/45mm |
|
M40〜1.5(2) |
|
|
|
30-22 |
11mm |
35mm |
45mm |
|
M42〜1.5(2) |
|
|
|
30-22 |
11mm |
35mm |
45mm |
|
M47〜1.5(2) |
PG36 |
NPT11/4 |
G11/4 |
33-25 |
11mm |
37mm |
50mm |
|
M48〜1.5(2) |
|
|
|
33-25 |
11mm |
37mm |
50mm |
|
M50〜1.5(2) |
|
|
|
38-32 |
12mm |
37mm |
57/55mm |
|
M54〜1.5(2) |
PG42 |
NPT11/2 |
G11/2 |
38-32 |
12mm |
38mm |
57mm |
|
M56〜1.5(2) |
|
|
|
38-32 |
12mm |
38mm |
57/59mm |
|
M60〜1.5(2) |
PG48 |
NPT2 |
G2 |
44-37 |
13mm |
38mm |
65mm |
|
M63〜1.5(2) |
|
|
|
44-37 |
13mm |
38mm |
65mm |
|
M64〜1.5(2) |
|
|
|
44-37 |
13mm |
38mm |
65/68mm |
|
M72〜2 |
PG63 |
NPT12/2 |
G12/2 |
52-42 |
15mm |
42mm |
77mm |
|
M75〜2 |
|
|
|
52-42 |
15mm |
42mm |
77mm |
|
M80〜2 |
|
|
|
62-55 |
15mm |
45mm |
90mm |
|
M88〜2 |
|
NPT3 |
G3 |
70-65 |
15mm |
45mm |
94mm |
|
M100〜2 |
|
|
|
84-78 |
15mm |
45mm |
110mm |
