Industrial Plugs&Sockets

　

　

500V Plugs

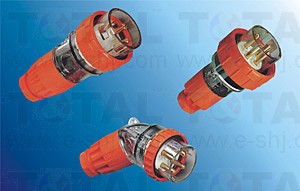

There plugs are all Ip66 when fitted to a 56 Series cord connector or Socket Outlet.The body section is transparent for quick and easy inspection of the terminals and cable entry. Plugs are available with 4 to 7 pins. 16A to 50A to cover most applications.

　

250V Plugs

The 56 Series single phase plugs are available in 10A,15A,20A and 32A Pin configurations to suit the Australian and New Zealand markets and in the British 13A square pin configuration.All plugs are Ip66 rated.

　

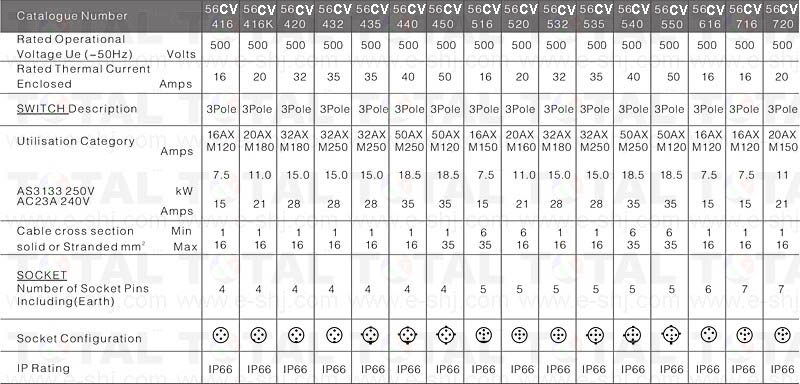

Combination Switched Socket

The 56 Series includes an extensive range of one piece combination Switched Sockets.
Optional keylock OFF facility (quote"CVK" when ordering keylock type, e.g.cat on.
56CVK310).For NEON indicator option add"N" after catalogue number.

110-250V Combination Switched Sockets

500V Combination Switched Sockets

All 500V Switched Sockets rated 32A and above have an internal interlocking feature (plugs cannot be withdrawn or inserted when the switch is in the ON position. This feature is also available for 16A and 20A upon request)
Optional keylock OFF facility (quote"cvk"when ordering keylock type, e.g.cat number 56CVK432).
For NEON indicator option add"N"after catalogue number.

500V KG  Combination Switched Sockets for Use With Extra Pole

　

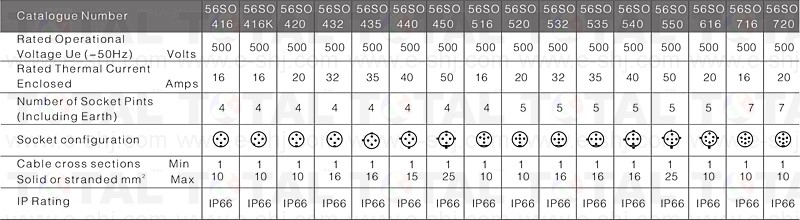

Socket Outlet

110-250V Socket Outlets

500V Socket Outlets

Socket units are standard 100100 one gang module use with 56E1 enclosures combining with other accessories in a larger enclosure.

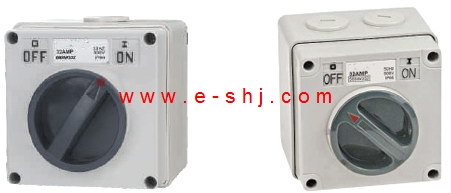

56SW series switches are available from 250V 10A TO 500V 63A
They incorparate a positive,rotary action,ON-OFF action and clear marked Impact resistant construction
and material suitable for harsh condition Raised ON-OFF lettering for clear and permanent
marking.
